J&M 2494ST Running Gear User Manual
Page 12
Pg. 12
MODEL 2494ST RUNNING GEAR

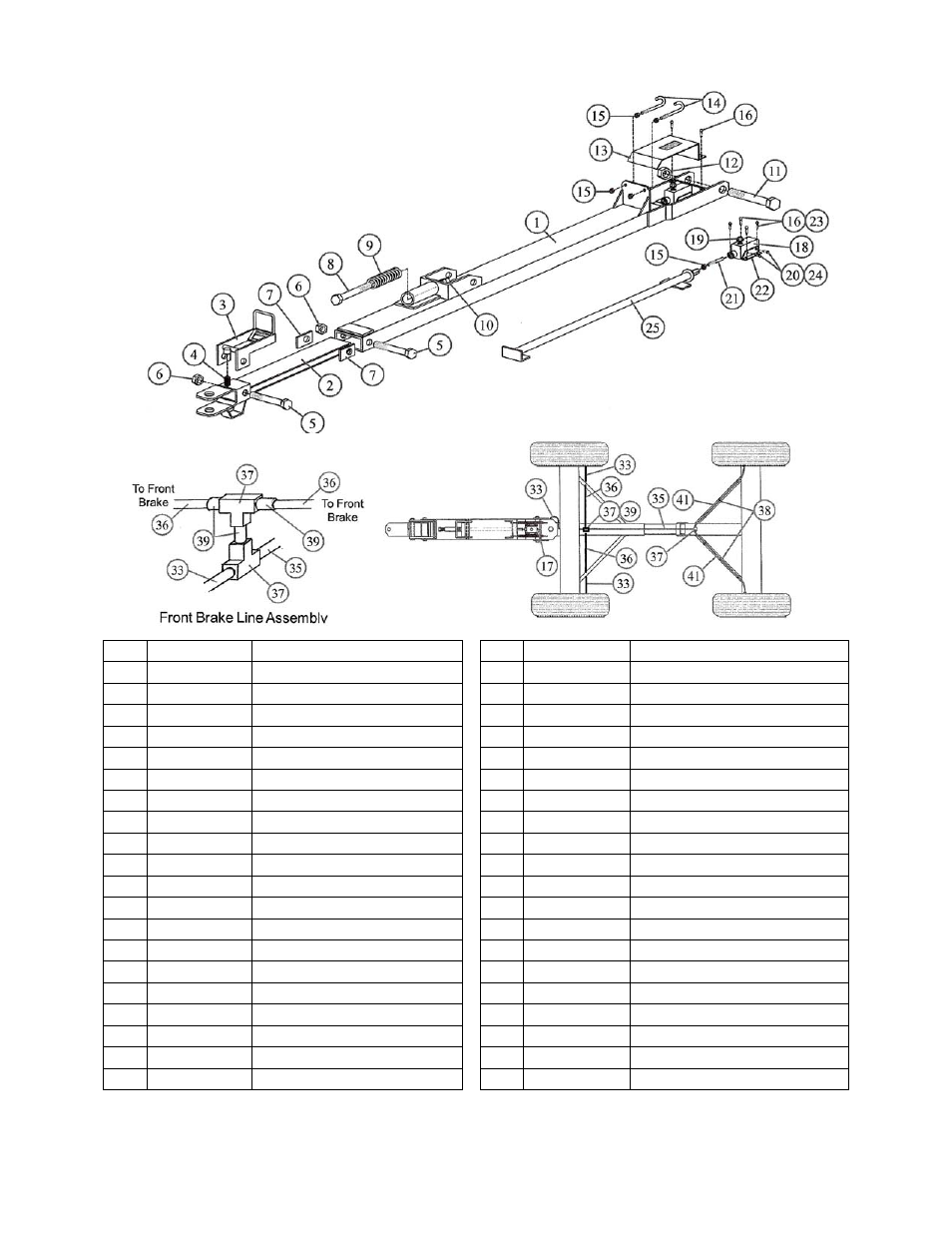

REPAIR PARTS LIST FOR HYDRAULIC DRUM BRAKES
Tongue Assembly and Brake Lines and Fittings
PARTS LIST
#
Part #
Description
#
Part #
Description
1
OTW-24ST
Outer Tongue Weldment
21
PRE-1
Plunger Rod End
2 ITW-1324
Inner
Tongue
Weldment
22 MBMC-DR2
Mounting Bracket (2 pcs) (M/C)
3
TL-1324
Tongue Latch
23
38-FN
3/8” Flange Nut
4
SS-615NS
Small Spring In Latch
24
38-LN
3/8” Lock Nut
5
17G2B
1” x 7” Grade 2 Bolt
25
PP-1DST
Plunger Pole
6
1LN
1” Lock Nut
26
RB-1415
Rubber Boot on M/Cylinder
7
BL-58
Brake Limiter
27
GR-1415
Rubber Grommet
8
19G8B
1” x 9” Grade 8 Bolt
28
SKMC-1324
Seal Kit for Master Cylinder
9
CS-178714
Compression Spring
29
DOT5-BF
Container COT 5 Brake Fluid
10
1RN
1” Regular Nut
31
W-871B
Hub, Faced for Brakes
11
TB-1215
Tongue Bolt
32
BS-24
Bleeder Stem
12
HN-114
1 1/4” Hex Nut
33
HH-1424
1/4” x 24” Hydraulic Hose
13
SMC-1
Shield for Master Cylinder
35
ST-120
3/16” Brake Line x 120”
14
124-JB
1/2” x 4” J-Bolt
36
ST-30
3/16” Brake Line x 30”
15
12-N
1/2” Regular Nut
37
10606
Tee
16
381-FB
3/8” x 1” Flange Bolt
38
CT-1
Cable Tie
17
FMC-1324
Fitting for Master Cylinder
39
10606-X
Tee Extension
18
MCA-DR1
Master Cylinder Assembly
40
RB-1415
Rubber Boot on Master Cylinder
19
RMCM-1324
Replacement Cap (M/Cylinder)
41
ST-53
3/16” Brake Line x 53”
20
383G8B
3/8” x 3” Grade 8 Bolt
