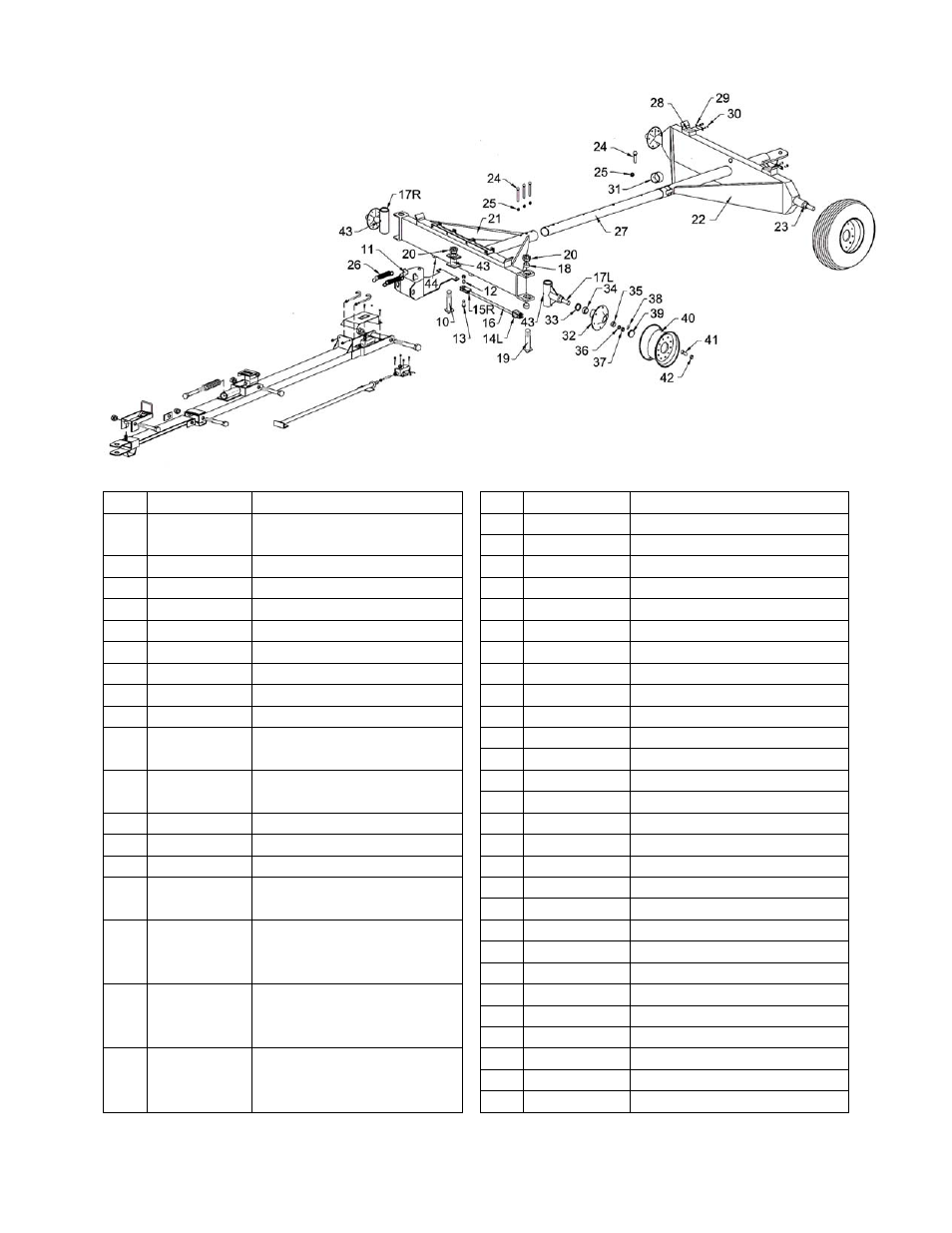

MODEL 2494ST RUNNING GEAR REPAIR PARTS LIST
PARTS LIST
# Part # Description # Part # Description
10 HB-24 King Pin Hitch Bolt
1 3/4” x 10 1/2” 23 SS-33816 3 3/8” x 16” Straight Spindle
24 MB-1634 1” x 6 3/4” Bolt
11 HW-24 Hitch Weldment 25 1LN 1” Lock Nut
12 BB-78 7/8” ID Bronze Bushing 26 TS-615H Large Tongue Spring
13 SB-78 7/8” Step Bolt with Nut 27 CP-24ST Coupling Pole with Rear Hitch
14L TRE-114L Tie Rod End, Left 28 212314-RP 2 1/2” x 3 1/4” Rubber Plate
14R TRE-14R Tie Rod End, Right 29 14114312-P 1/4” x 1 1/4” x 3 1/2” Plate
15L HN-114L 1 1/4” Hex Nut, Left 30 381-FB 3/8” x 1” Flange Bolt
15R HN-114R 1 1/4” Hex Nut, Right 31 HCL-412 4 1/2” OD Collar
16 TR-24A Tie Rod, 1 1/4” x 24” Long 32 W-871B 873 Hub (faced) w/studs & nuts
17L SA-24L 3 3/8” Spindle & Spool
Assembly, Left 33 CR-33772 Seal (4 5/8” OD)
34 4T-33275 Large Bearing
17R SA-24R 3 3/8” Spindle & Spool
Assembly, Right 35 4T-460 Small Bearing
36 913632 Spindle Washer
18 EB-134 1 3/4” ID End Spindle Bushing 37 912969 Slotted Spindle Nut
19 SPB-134 1 3/4” Rd CR x 13 1/2” Bolt 38 905944 Cotter Pin
20 HN-134 1 3/4” Hex Nut 39 909983 Dust Cap
21 FA-24 Front Axle Weldment
(A-Frame Only) 40 WR22.5-13 Wheel, 22.5x13, 10 Bolt
41 913564 Wheel Stud, 3/4”-16
21 FA-24C Running Gear, Front Only,
Less Brakes, Tongue, Hose,
Piping, Pole 42 913571 Wheel Nuts, 3/4”-16
43 1633 Grease Fitting
44 583G8B 5/8” x 3” Grade 8 Bolt
21 FA-24CDR Running Gear, Front Only,
WITH DRUM BRAKES, Less
Tongue, Hose, Piping, Pole 45 58-RN 5/8” Regular Nut (not shown)
51 910397 Inner Cup (large) (not shown)
52 910332 Outer Cup (small) (not shown)
22 RA-24DR Running Gear, Rear Only
WITH DRUM BRAKES, Less
Rims, Hose, Rocking Bolster
Tongue Assembly Parts List
(See Page 12)
