3
TITLE T
o
T
he
D
ealer
S
pecificaTionS
A
B
C

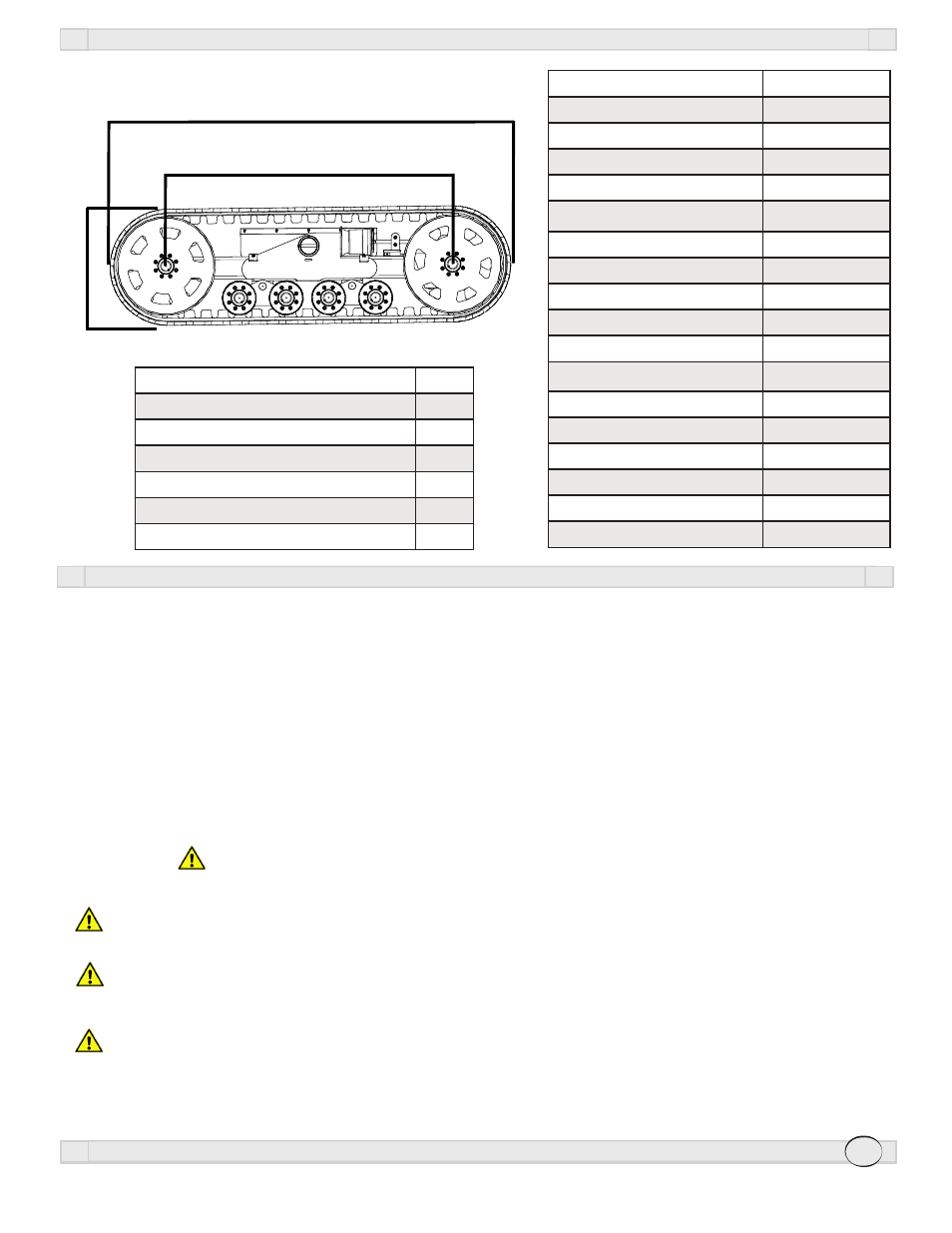

Specifications
Track Width
36”
Idler Width (effective) 36”
Overall Length (A) 146”
Idler Diameter 36”
Roller Diameter 12 3/4”
Wheel Base (B) 105”
Main Pivot Pin Diameter 6” Dia (4140)
Track Length 324”
Track Height (C) 42”
Track Width 36”
Carry Capacity 120,000 lbs.
Overall Weight 11,350 lbs.
Belt Weight (each) 1,300 lbs.
Track Tension 10,000 psi
Footprint per Track 3,780 Sq. In.
Footprint (Total) 7,560 Sq. In.
Features
End Idler Constructions
Steel
Mid Roller (Bogies) (4 Per Set) 4 Sets
Pivot Bogey System Yes
Air-Spring Cushion Belt Tensioner Yes
Leveraged Tensioner
2 to 1
# of Hubs Used 24
TO THE OWNER:
The purpose of this manual is to assist you in operating and maintaining your track system in a safe manner. Read it carefully.
It furnishes information and instructions that will help you achieve years of dependable performance and help maintain safe
operating conditions. If this machine is used by an employee or is loaned or rented, make certain that the operator(s), prior to
operating:
1. Is instructed in safe and proper use.
2. Reviews and understands the manual(s) pertaining to this machine.
Throughout this manual, the term IMPORTANT is used to indicate that failure to observe can cause damage to equipment. The
terms CAUTION, WARNING and DANGER are used in conjunction with the Safety-Alert Symbol, (a triangle with an excla-
mation mark), to indicate the degree of hazard for items of personal safety. When you see this symbol, carefully read the mes-
sage that follows and be alert to the possibility of personal injury or death.
G
eneral
i
nformaTion
This Safety-Alert symbol indicates a hazard and means
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
Indicates an imminently hazardous situation that, if not avoided, will result in death or serious
injury.
Indicates a potentially hazardous situation that, if not avoided, could result in death or serious
injury, and includes hazards that are exposed when guards are removed.
Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate
injury.
Indicates that failure to observe can cause damage to equipment.
Indicates helpful information.
DANGER
WARNING
CAUTION
IMPORTANT
NOTE
