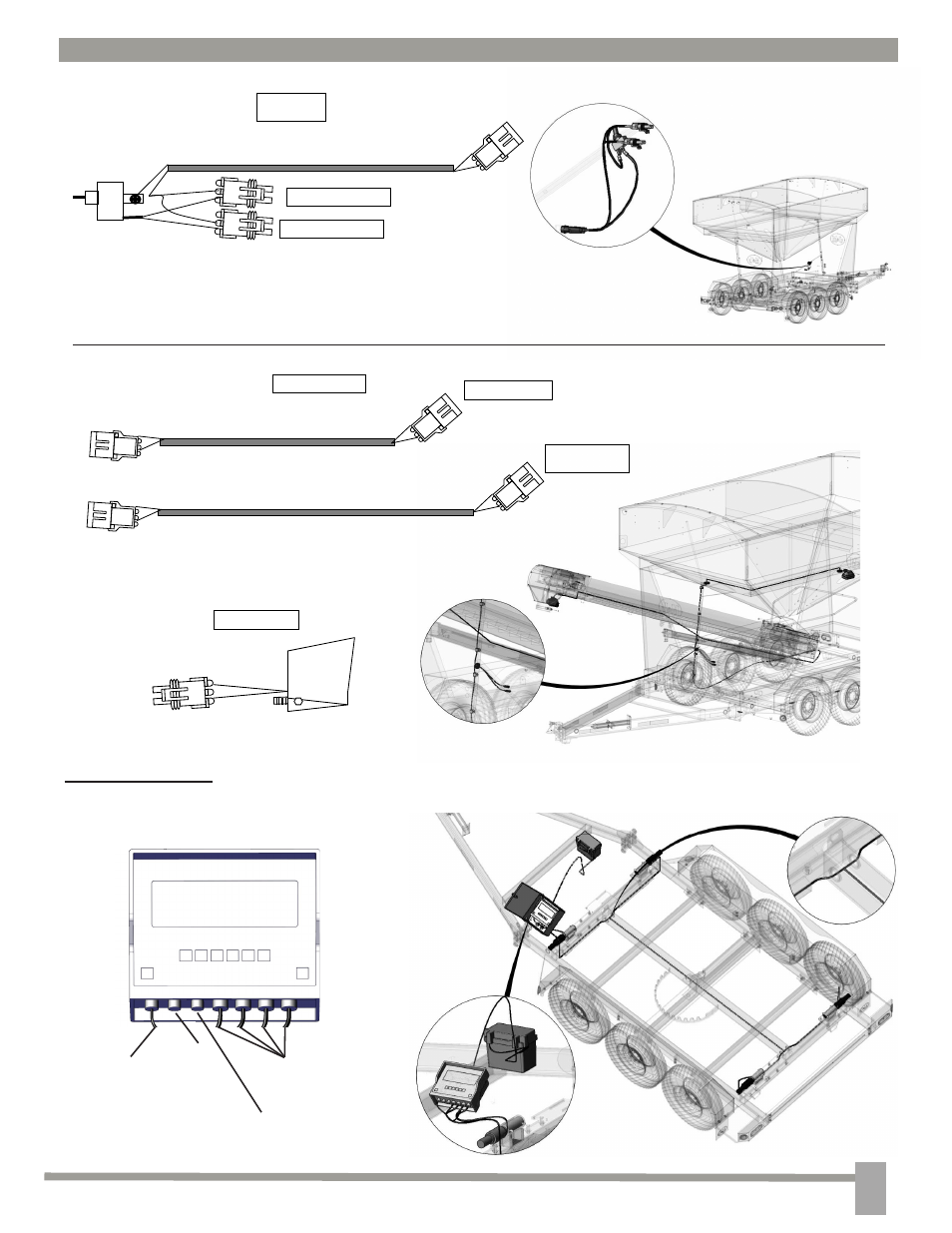

4.0 Wiring
2”
378”
60”
Blk
Wht
Switch w/
Rubber Boot
Black
Black
6”
Flood
Light
Black
Black
White
White
2”
170”
Blk
Wht
Black
Flood Light
Switch Harness
To Tank Flood Light
To Auger/Conveyer
Flood Light
To Flood Light Harnesses
To Flood Light Harnesses
Flood Light Harnesses
Flood Light Qty-2
A
A B
B
D
C
D
C
2”
378”
60”
Blk
Wht
Switch w/
Rubber Boot
Black
Black
6”
Flood
Light
Black
Black
White
White
2”
170”
Blk
Wht
Black
Flood Light
Switch Harness
To Tank Flood Light
To Auger/Conveyer
Flood Light
To Flood Light Harnesses
To Flood Light Harnesses
Flood Light Harnesses
Flood Light Qty-2
A
A
B
B
C
C
D
D
Black
Black
6”
Flood
Light
Flood Light Qty-2
4.3 Scale Wiring
Weigh Bar
Plugins
Print
Plugin
(Optional)
Power Cord
Plugin
Wireless Reciever Plugin
Scale Display/
Interface
