3.0 Hydraulics

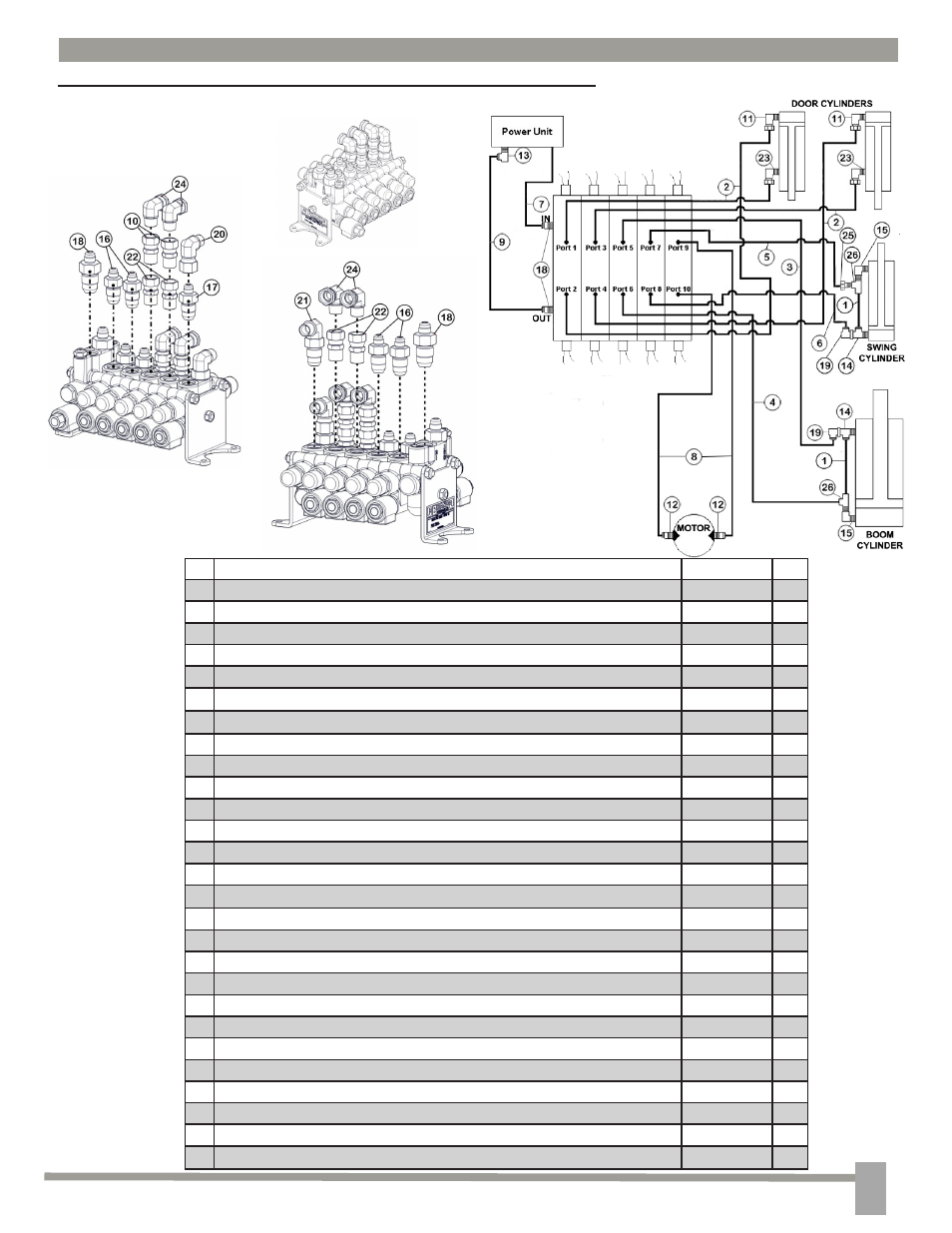

3.3 Deluxe Models with Conveyer/Auger Swing-JM0010316
5 Spool Valve Body
# Description Part # Qty.
1 1/4" I.D. Hose; 1/4" male NPT rigid X #6 female JIC swivel; 12" OAL JM0010282 2
2 1/4" I.D. Hose; 1/4" male NPT rigid X #6 female JIC swivel; 192" OAL JM0010300 4
3 1/4" I.D. Hose; 3/8" male NPT rigid X #6 female JIC swivel; 107" OAL JM0010283 1
4 1/4" I.D. Hose; 3/8" male NPT rigid X 3/8" male NPT swivel; 99" OAL JM0010284 1
5 1/4" I.D. Hose; 3/8" male NPT rigid X 3/8" male NPT swivel; 82" OAL JM0010304 1
6 1/4" I.D. Hose; 3/8" male NPT rigid X 3/8" male NPT swivel; 98" OAL JM0010305 1
7 1/2" I.D. Hose; 3/8" male NPT swivel X #8 female JIC swivel; 34" OAL JM0010285 1
8 1/2" I.D. Hose; #8 female JIC swivel X #8 female JIC swivel; 326" OAL JM0010286 2
9 1/2" I.D. Hose; #8 female JIC swivel X #8 female JIC swivel; 27" OAL JM0010287 1
10 3/8" male NPT X 3/8" female NPT swivel; straight JM0010288 2
11 1/4" male NPT X 1/4" female NPT swivel; 90 degree elbow JM0010301 2
12 #8 male JIC X 1/2" male NPT; straight JM0010289 2
13 #8 male JIC X 3/4" male NPT; 90 degree elbow JM0010290 1
14 #6 male JIC X 1/2" male NPT X #6 male JIC; tee JM0010291 2
15 1/2" male NPT X 3/8" female NPT; 90 degree elbow JM0010292 2
16 #6 male JIC X #8 male o-ring; straight JM0010302 4
17 #8 male JIC X #8 male o-ring; straight JM0010293 1
18 #8 male JIC X #10 male o-ring; straight JM0010294 2
19 #6 male JIC X #6 female JIC swivel; 90 degree elbow JM0010295 2
20 #8 male JIC X #8 female JIC swivel; 90 degree elbow JM0010296 1
21 #8 male JIC X #8 male o-ring; 90 degree elbow JM0010297 1
22 #8 male o-ring X 3/8" female NPT swivel; straight JM0010298 4
23 1/4" male NPT X 1/4" female NPT swivel; 90 degree elbow; with .032" orifice JM0010303 2
24 3/8" male NPT X 3/8" female NPT swivel; 90 degree elbow; with .062" orifice JM0010299 4
25 3/8" male NPT X 3/8" female NPT swivel; straight; with .032” orifice JM0019899 1
26 Pilot Check Valve JM0010153 2
27 5 Spool Valve Body JM0001832 1
