J&M GC-24T Manual User Manual
Page 16
15

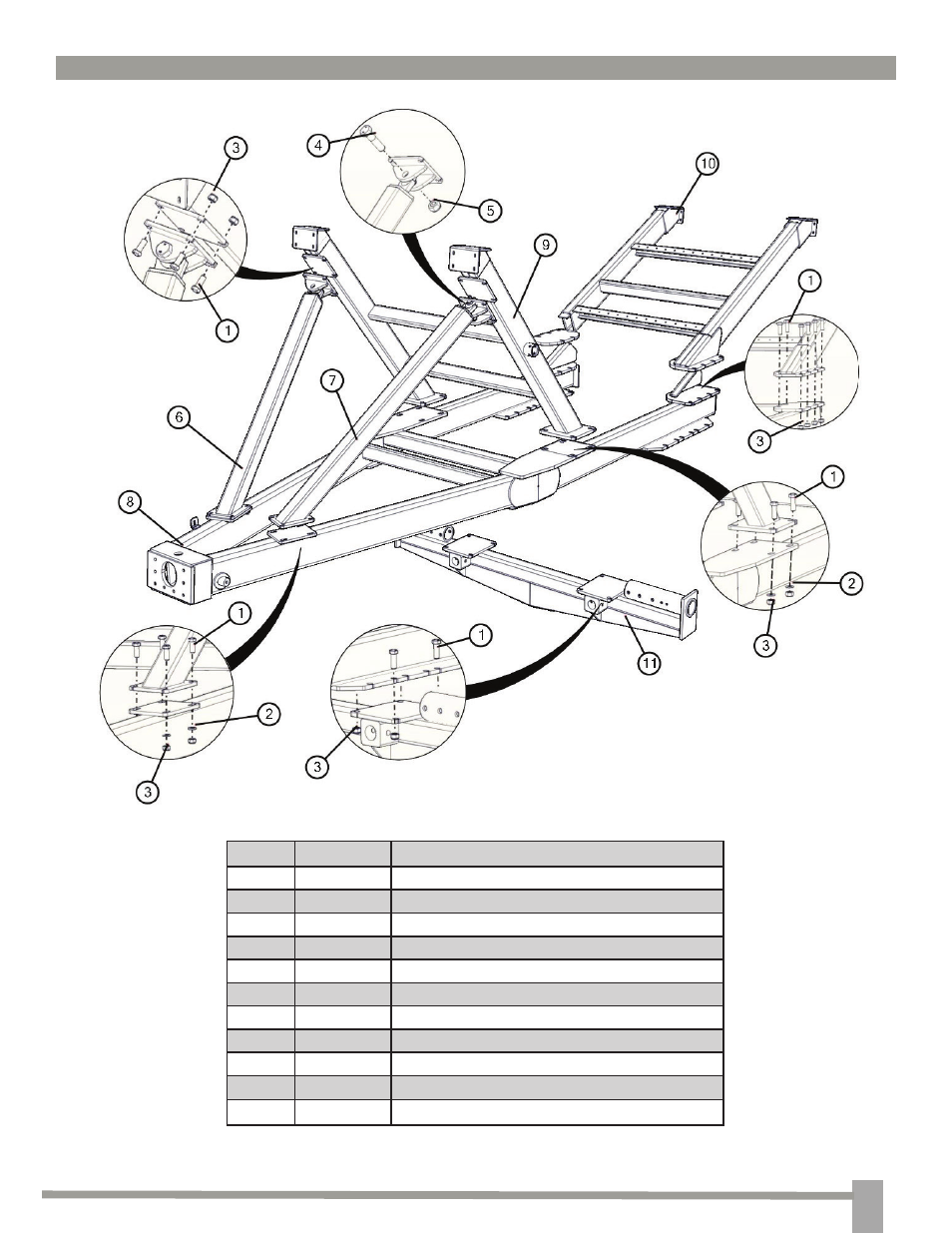

MAIN FRAME AND UNDERCARRIAGE AXLE ASSEMBLY
#
Part No.
Description
1
JM0002116
M16x45 Hex Bolt
2
JM0002909
M16 Flatwasher
3
JM0002164
M16 Nylon Lock Nut
4
JM0002119
M30 x 120 Bolt
5
JM0002166
M30 Nylon Locknut
6
JM0000370
Turnbuckle Leg
7
JM0000370
Turnbuckle Leg
8
JM0000008
Main Frame Weldment
9
JM0000009
Front Slope Frame Weldment
10
JM0000010
Rear Slope Frame Weldment
11
JM0000011
Standard Axle Weldment
