REPAIR PARTS LIST AND DIAGRAMS
When performing maintenance work, wear sturdy, rough-soled work shoes and protective equipment for eyes, hair, hands,
hearing and head. Follow the Operator’s Manual instructions to ensure safe and proper maintenance and repair.
Your local, authorized dealer can supply genuine replacement parts. Substitute parts may not meet original equipment
specifications and may be dangerous.
WARNING
MAKE SURE ALL POWER IS SHUT OFF BEFORE PERFORMING ANY MAINTENANCE OR REPAIR WORK.

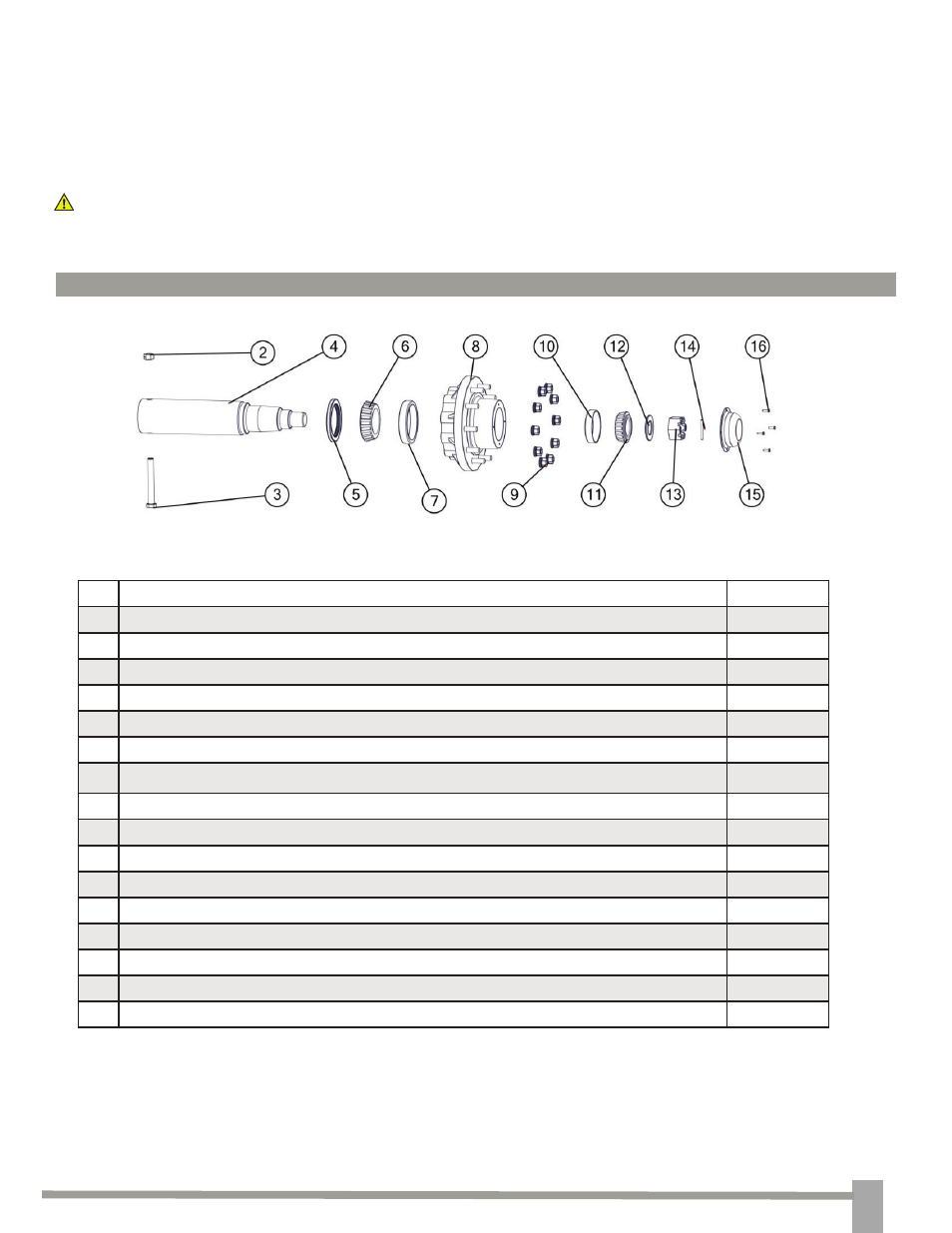

HUB AND SPINDLE ASSEMBLY
#
Descriptions
Part. No.
1
G250-10 Hub, Spindle, and Bearings Assembly
JM0019927
2
M24 x 165MM Hex Bolt
JM0002117
3
M24 Nylon Locking Hex Nut
JM0002165
4
4-1/2” Spindle
JM0018794
5
Seal 55179 (Type C) for G250-10,G300-10B, Spring-assisted
JM0015900
6
Large Bearing
JM0018849
7
Large Race (4T-33462)
JM0019198
8
G250-10 Hub (13.19 bolt circle & 11.13 pilot)
JM0019300
9
3/4” Lug Nut
JM0018958
10 Small Race (4T-453A)
JM0019195
11 Small Bearing
JM0018852
12 Large Spindle Washer
JM0015900
13 Large Castle Nut
JM0015899
14 3/8” X 2-7/8” Z ROLL PIN
JM0018956
15 Dust Cap
JM0018954
16 1/4”-20 X 3/4” Gr5 Z Hex Bolt
JM0001507
