SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product
as required. The dimensions needed for site preparation and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no
responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
June 2008
hOTSOAk 93
General SpecificationS:
Tub Size 65 3/4” x 32” x 24”
167 cm x 91 cm x 61 cm
Bathing Well 43 1/2” long
18” wide
21” interior depth
Maximum Water Depth 17 1/2”
Shipping Weight
186 lbs. / 84 kg
Tub Weight Filled 750 lbs. / 340 kg
Tub Only Weight 84 lbs. / 38 kg
Weight w/Equipment 94 lbs. / 43 kg
Gallons to Overflow 79 gal. / 299 L
electrical SpecificationS:
Pump 1/15 HP; 1.3 AMP; 110V
Heater 1.5 kW; 12.5 AMP; 110V
Requirements 20 AMP; 110V, separate circuit
required protected w/ Class A GFCI
Standard equipment:
optional equipment:

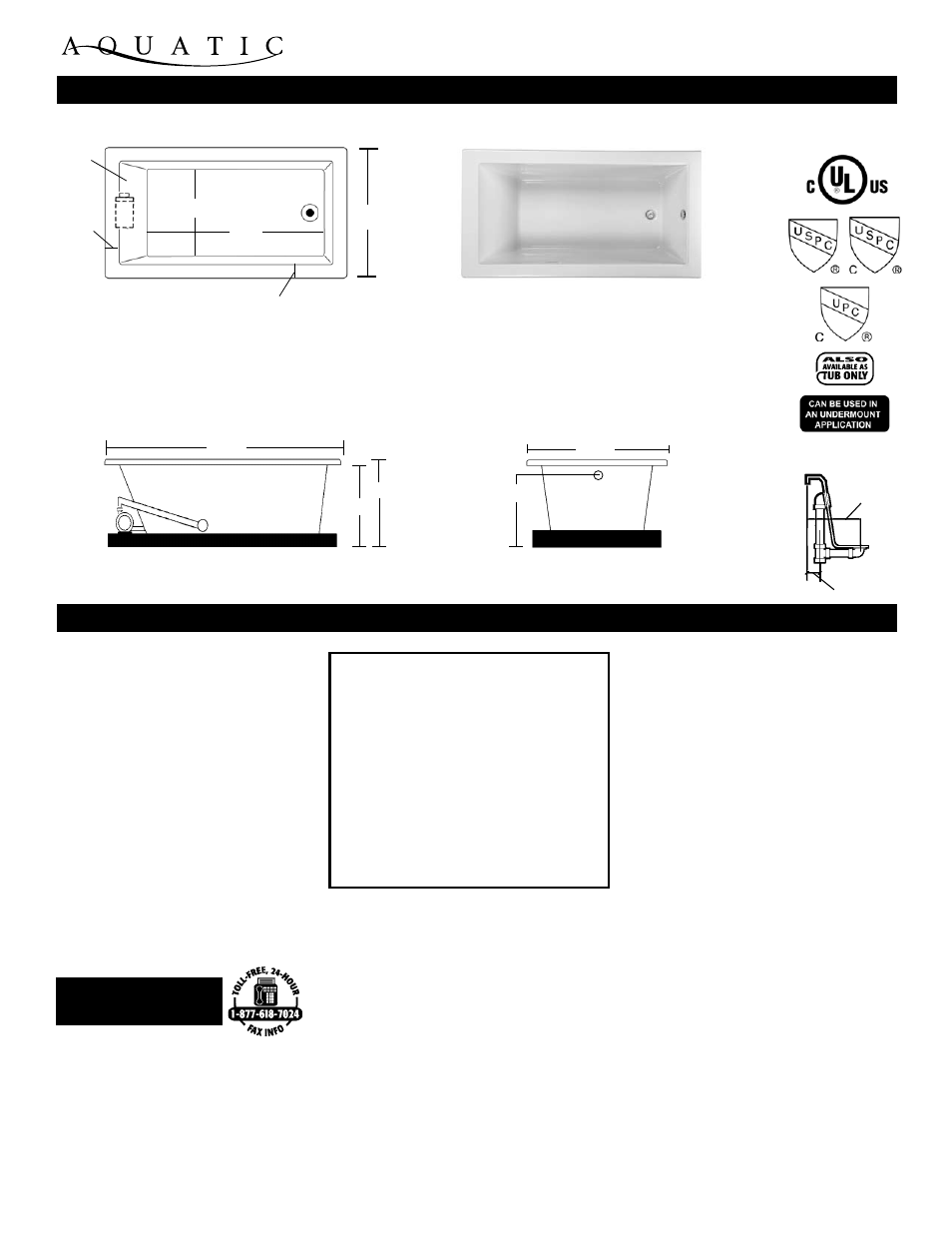

hOTSOAk
Model # AI34AIR6632HS
Deck
Width
4”
32”
Deck Width
3”
43 1/2”
18”
32”
22”
24”
65 3/4”
20 1/2”
aquatic quality features:
- 1.5 kW Inline Maintenance Heater
- Run-Dry Pump with 20-Minute Timer
- 2 Circulation Portal Covers
- Bath-Side On/Off Electronic Button
- ”Quiet Pad”
Anti-Vibration Pump Mount for Quiet Operation
- Slip Resistant Floor
- Pre-leveled ABS Support Base
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
ul & iapmo listed, factory tested
limited lifetime Warranty
• Chromatherapy*
•
Comfort Pillow - Oval or Rectangle
• Bolt-On Grab Bars
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
• Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
•
Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)
• Chromatherapy
•
Integral Tiling Flange (Customer must specify which
side(s) should receive flange)
•
Color Matched Acrylic Skirt
•
Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading fixture manufacturers.
*This whirlpool will need to be hard wired to the breaker box.
Three outlets will be supplied on the whirlpool.
fax-on-demand
document # 1234
Back Angle
26°
rough-in plumbing
measurements
2 3/4”
10 3/4”
