Castle Equalizer Edgebander - Manual (Page 19)

Changing the Hopper Extension
ƒ To change the Hopper Extension, remove the Glue Pot (following the above
instructions) and place it on the Galvanized Shelf.
ƒ Loosen the lower Philips head screws in the Hopper and slide the old Hopper
Extension off.
ƒ Put a new Hopper Extension on so that the Castle logo is visible from the front of the
machine.
ƒ Place the Glue Pot back into position, align the Hopper Extension with the hole in the
top of the Glue Pot, and retighten the screw.
Adjusting the Band Guide
The Band Guides can be adjusted for both tape thickness and tape width.

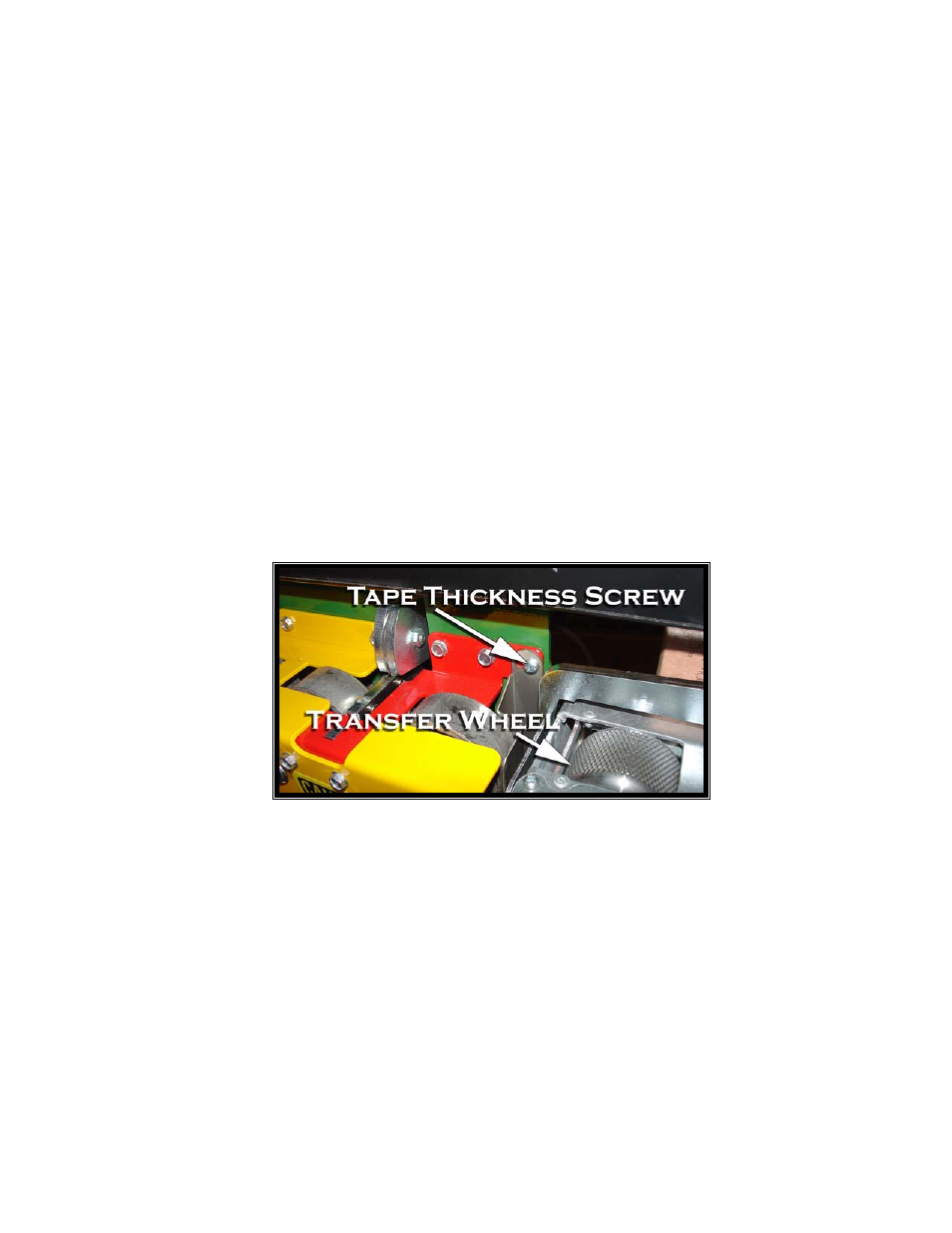

ƒ Locate the Philips head bolt to the left of the Glue Transfer Wheel that goes through
the Main Panel. This is where the adjustment takes place.
ƒ Adjust it so that there is a slight drag when the tape is pulled through it.
17
