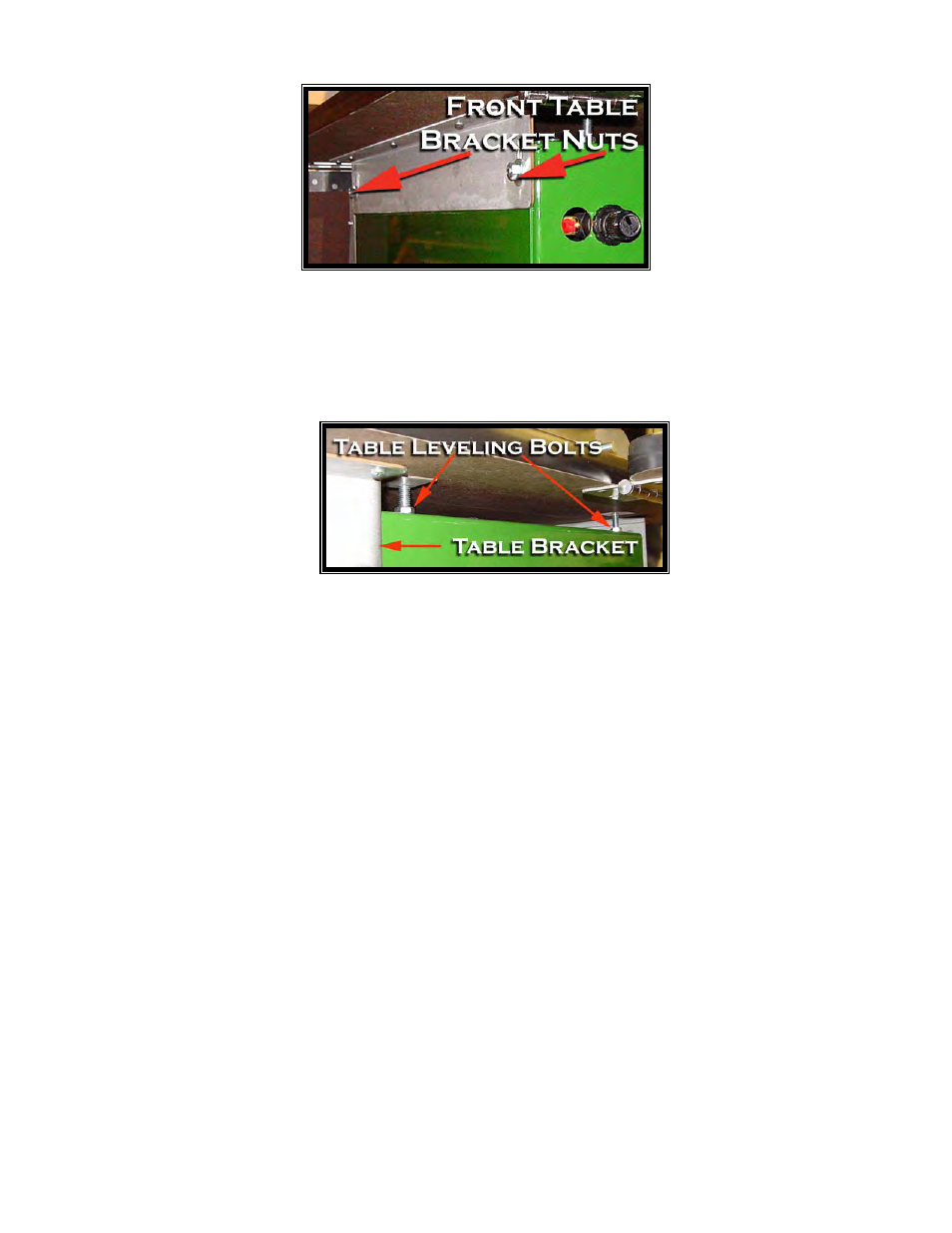

ƒ Once the table is loose, locate the four leveling bolts. There are two on
each side of the machine on the underside of the table.
ƒ Adjust the bolts up or down and check that the table is level and has the
appropriate clearance from the guard.
ƒ It is important to maintain the table in the same level position it was in
before the adjustment.
ƒ To do this, the leveling bolts must be turned the SAME NUMBER OF
TURNS AS ONE ANOTHER. It may be helpful to mark one face of the
hex head, to use as a reference point as the bolt turns.
ƒ Retighten the bracket nuts and drill a set of test holes to make sure that
the table stayed level.
Adjusting the Wing Table
The wing tables fold out on either side of the tabletop to extend the work
surface. The adjustment for the wing table is inside the body of the machine.
Another person will be needed for this adjustment.
ƒ Open the front door of the machine.
ƒ Locate the nuts that secure the wing table arm to the case side.
