Set-up / Installation
Always use eye protection when operating power equipment.
Your Castle TSM-21 Pocket Cutter was set up and tested for proper operation at the
factory. It is normal to find a small amount of sawdust in the TSM-21 from this process.
Verify that the Power Switch is turned off. Remove the Power Cord and Foot Pedal from
inside the machine.

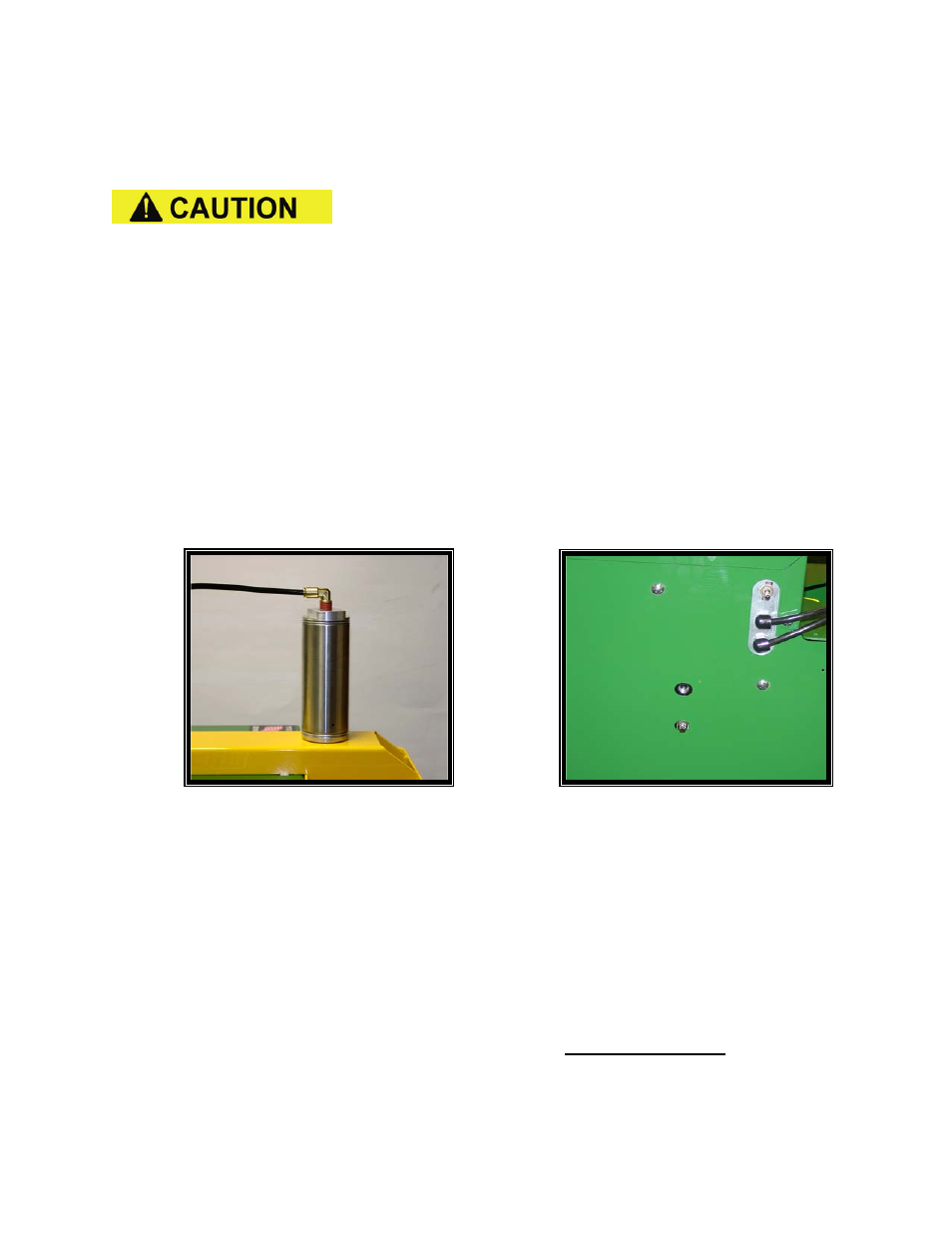

Remove the swivel elbow from the black urethane hose by pushing the floating ring
toward the elbow and pulling the hose at the same time.
Thread the elbow into the top of the Clamp Cylinder. It is pre-primed and self-sealing.
Point it toward the rear of the machine and firmly push the hose back into the fitting.
(Figure 1)
Figure 1
Figure2
Connect a clean, dry air supply to the left side of the machine with a minimum supply of
80psi. (Figure 2) Using an air supply of less than 80psi. will result in insufficient
clamping force, which can cause material shifting and possible injury to the operator.
We strongly recommend that you use an inline filter/water trap.
IMPORTANT
Do not introduce lubricants, oils, or solvents into the pneumatic system. Irreparable
damage to pneumatic seals and components may occur.
Using lubricants in the pneumatics of your TSM-21 may void your Warranty!
9
