ULTRA MAGNUM SERVO ROLL FEED 2 /14/2003
7
1.4 STRIP ENCODER INSTALLATION (OPTIONAL)
The Strip Encoder comes pre-installed on the feed body and all it needs is proper electrical connections and
air
pressure of 80-100 PSI to the pressure regulator mounted on the front side of Strip Encoder Assembly.
1.5 LOADING THE FEED

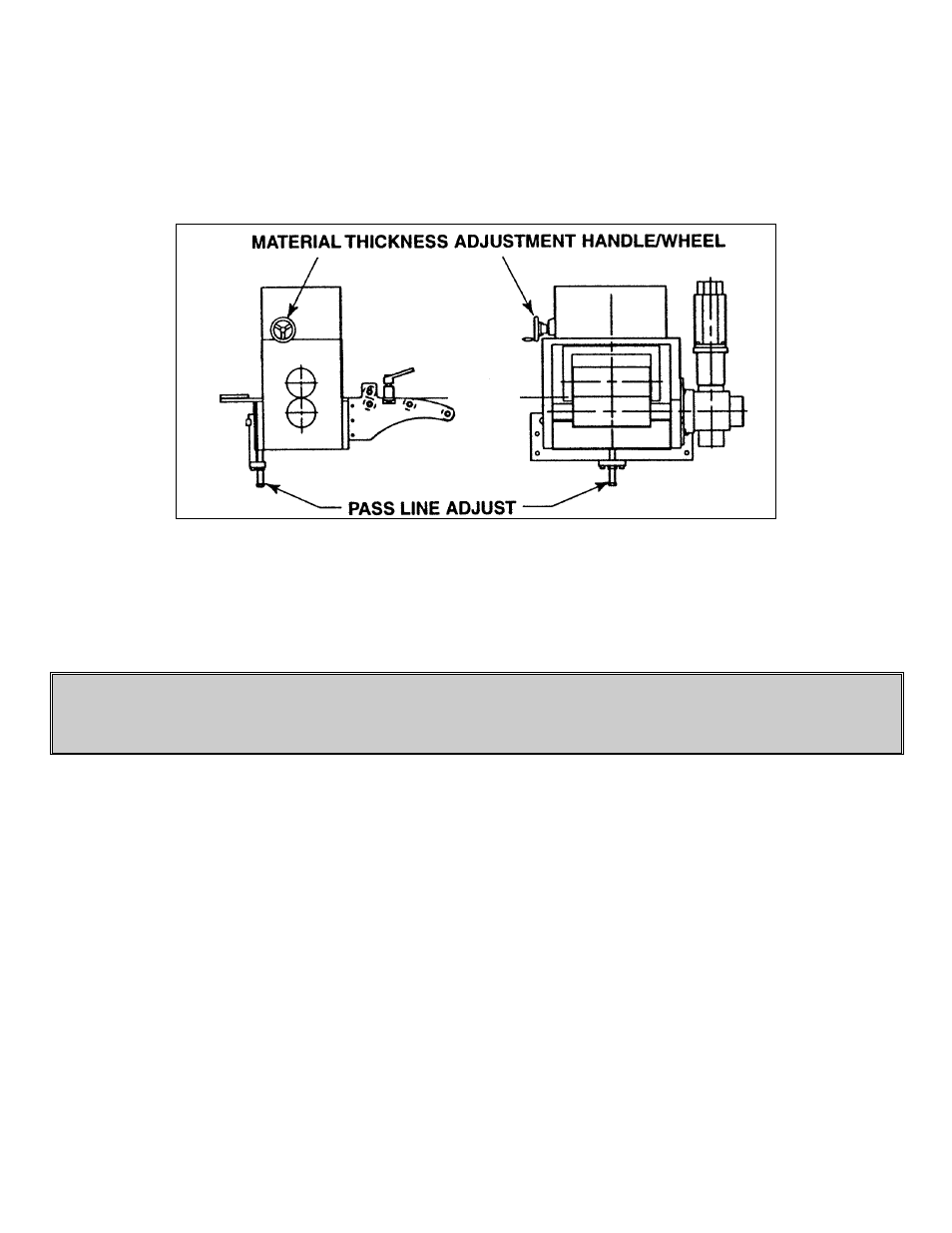

FIGURE 3
Prior to this step, the electrical control must be powered up and all needed parameters are loaded. (Refer to
the Ultra Magnum Servo Feed Operating Manual.)
NOTE:
This example is based on using PLS (Programmable Limit Switch), but all PLS timing notes can be easily translated to
other forms of timing.
The material thickness and width table, shown on page 8, defines the maximum stock thickness at full width
allowed. Do not try to operate the feeder with material thicker than it was designed to feed. Read the following
table before loading any material into the feeder
.
