1 INSTALLATION
1.1 MECHANICAL INSTALLATION
The Ultra Magnum Servo Roll Feed is supplied with an adjustable mounting bracket. The feed should be securely mounted
to the press frame. (A transition bracket is sometimes required in certain applications.) The feed should be centered, square,
and perpendicular to the pass line of the press. It should be mounted at a height that will accommodate the appropriate die
sets. The feed has a pass line height adjustment of ±2.0 inches. For mounting dimensions refer to FIGURE 1 and
MOUNTING DEMENSIONS table on p.4.
The roll release system requires a clean, dry and lubricated air supply 80-100PSI.
The feeder may be used to push or pull strip stock through the die.
If pilot locating pins are used in your die sets a cam switch will be necessary for controlling feed roll opening and closing.

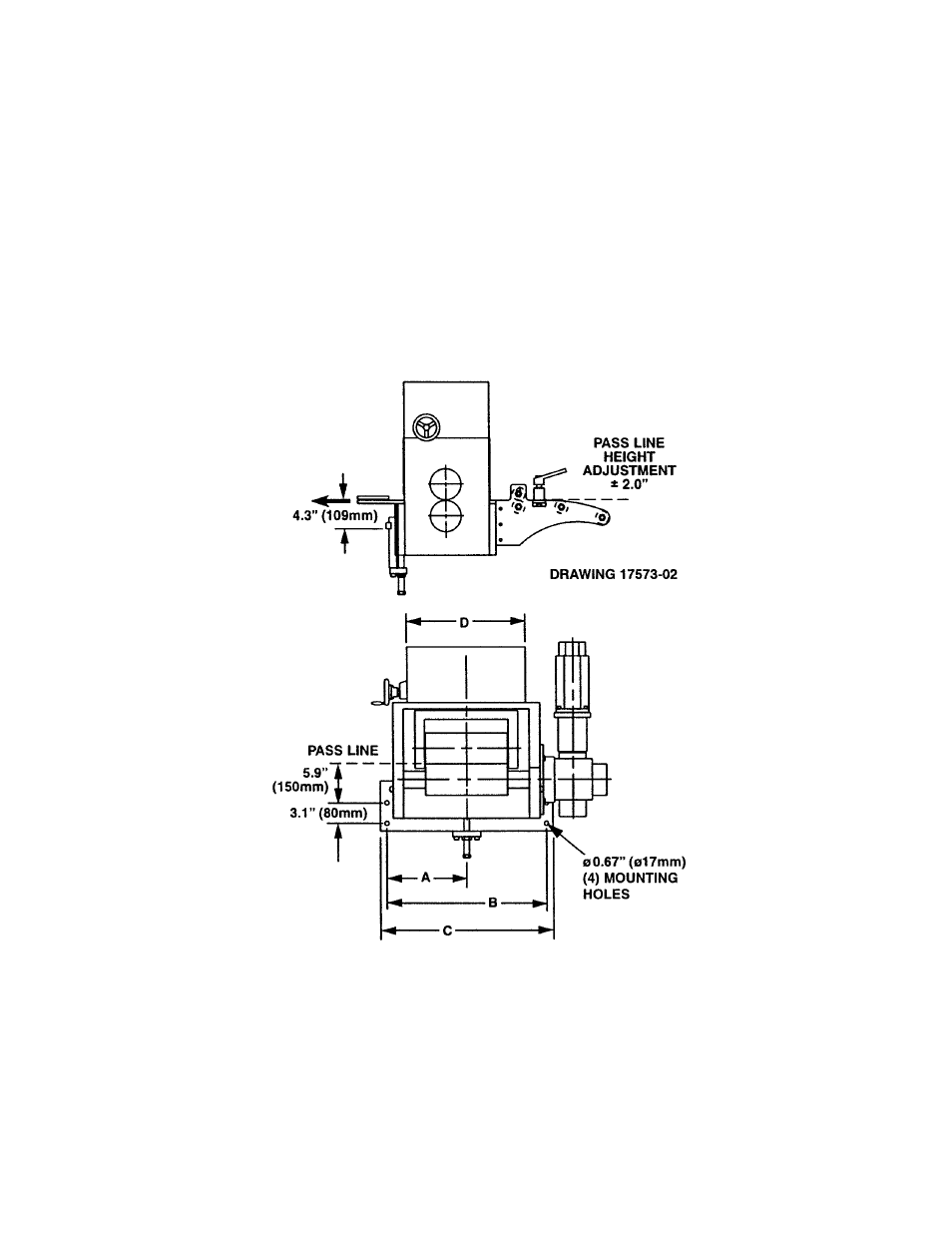

FIGURE 1
