Page 68: Cdl3 / c125, Ethernet connector, Function, Pin numbering, Wire, Cable, Motec appendices 67 crimp tool
MoTeC
Appendices
67
Crimp Tool
Crimp Tool: M22520/2-01
Positioner for Crimp Tool: M22520/2-07
Crimp Contacts are type 22D (needed to set the crimp tool correctly)
Wire Stripping Tool
Recommended: Ideal Industries 45-2133 stripping tool with LB1195 wire stop
PC Connection

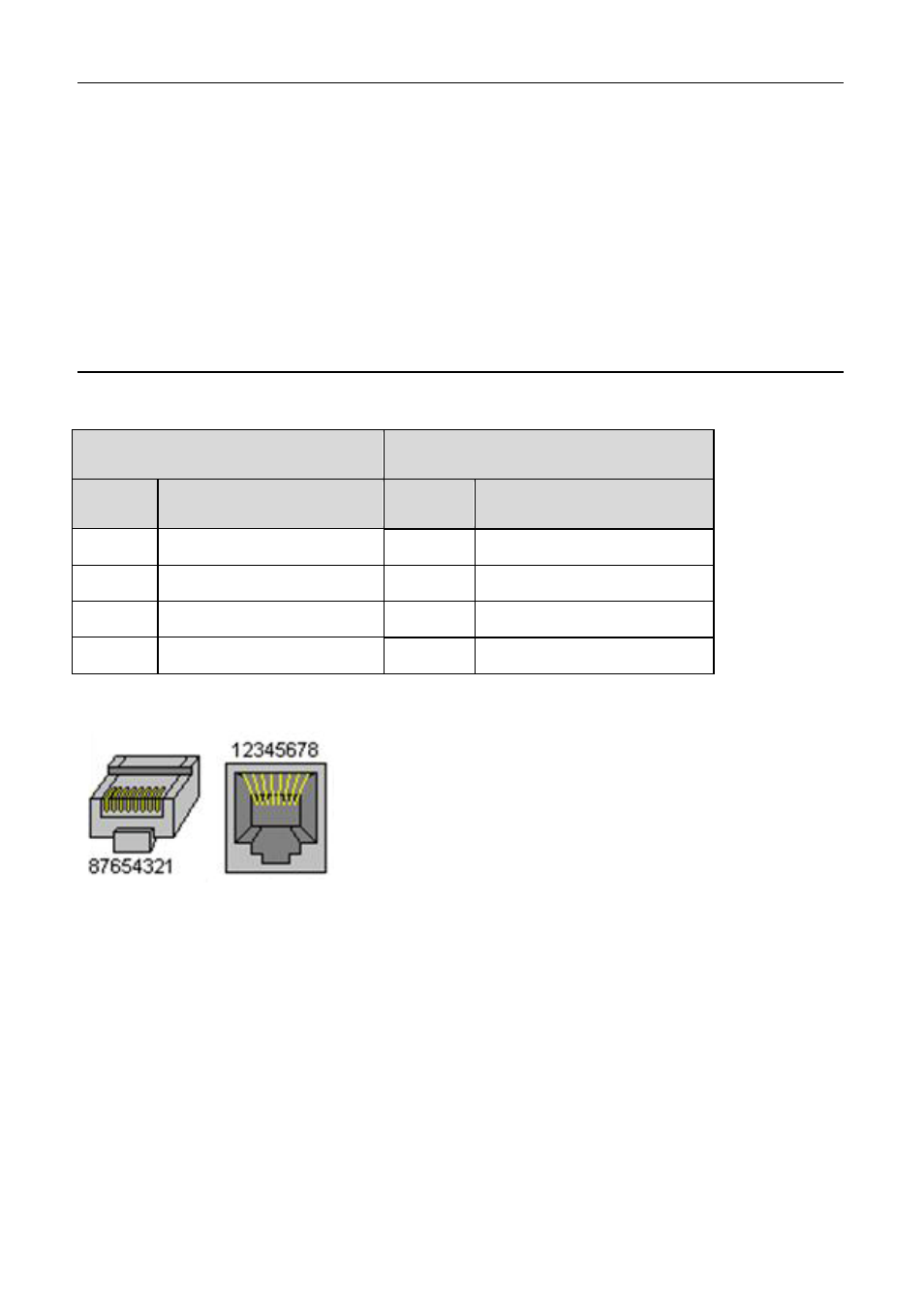

Ethernet Wiring Schematic:
CDL3 / C125
Ethernet Connector
Pin
Function
Pin
Function
11
Ethernet RX+
1
Ethernet TX+
10
Ethernet RX–
2
Ethernet TX–
2
Ethernet TX+
3
Ethernet RX+
1
Ethernet TX–
6
Ethernet RX–
Pin numbering
Plug Socket
Wire
CAT5 UTP Ethernet cable
Cable
An Ethernet RJ45 socket, connecting to a standard Ethernet cable, is
provided on:
• #62202 C125 loom
• #61131 Ethernet cable, unterminated, 2 metre
