Page 9
9
SK31101 ver. A2~A4
User’s Manual
www
.chenbr
o.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]

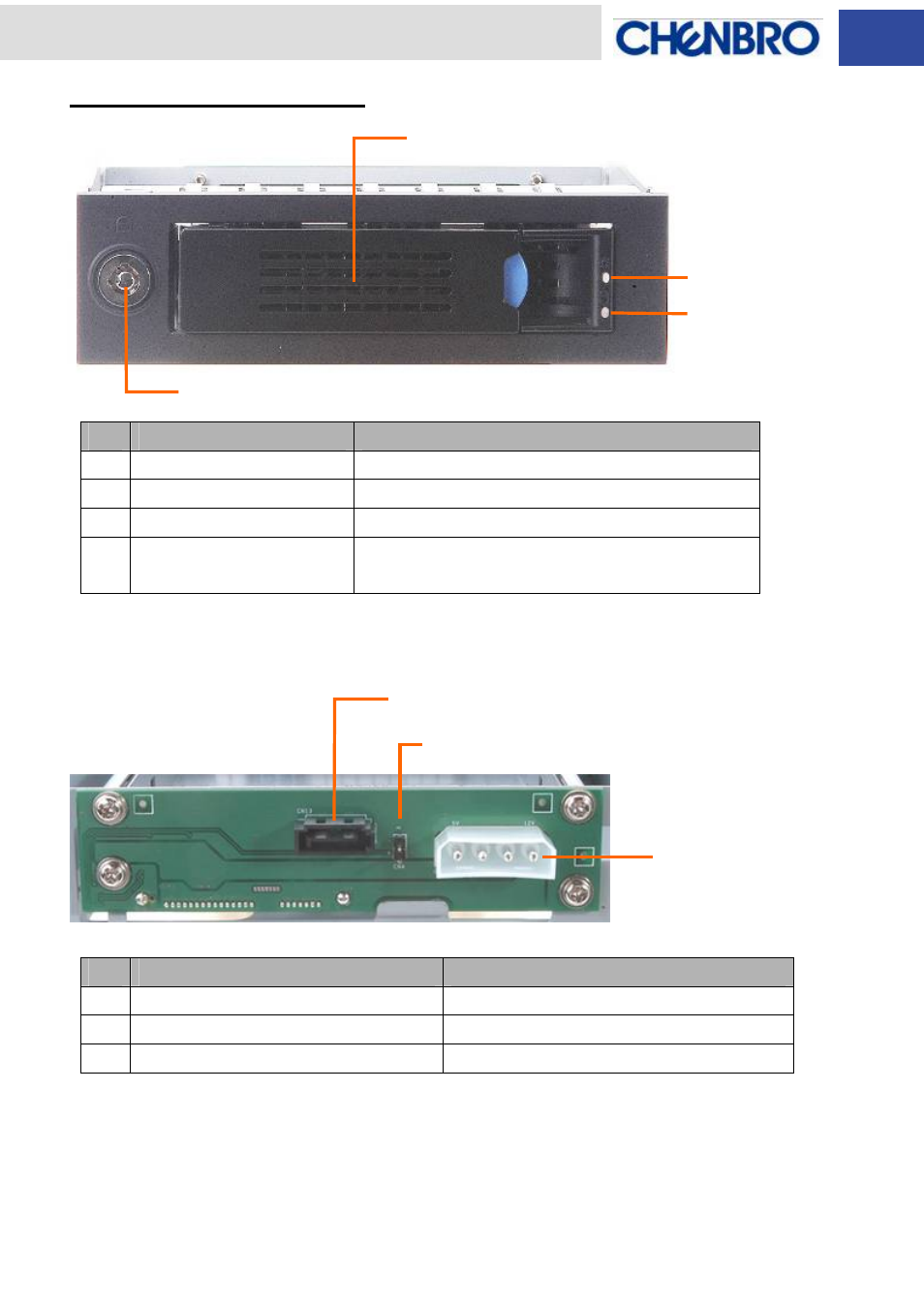

Components Description
Front View
Device
Function
1
3.5” HDD Hot-swap Tray
Refer to Page 11
2
Key lock
Refer to Page 10
3 HDD
Power
LED
Blue
LED On - HDD Power On
4
HDD activity / failure LED
Green
LED On - HDD active
Red
LED On - HDD failure
Rear View
Device
Function
1
SATA Connector
Connect to motherboard / RAID card
2
HDD failure signal connector
Refer to Page 10
3
Power Connector
Power input
2. Key Lock
1. 3.5” HDD Hot-swap Tray
3. Power connector
3. HDD power LED
4. HDD activity / failure
LED
2. HDD failure signal connector
1. SATA connector
