Page 10
10
SK31101 ver. A2~A4
User’s Manual
www
.chenbr
o.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]

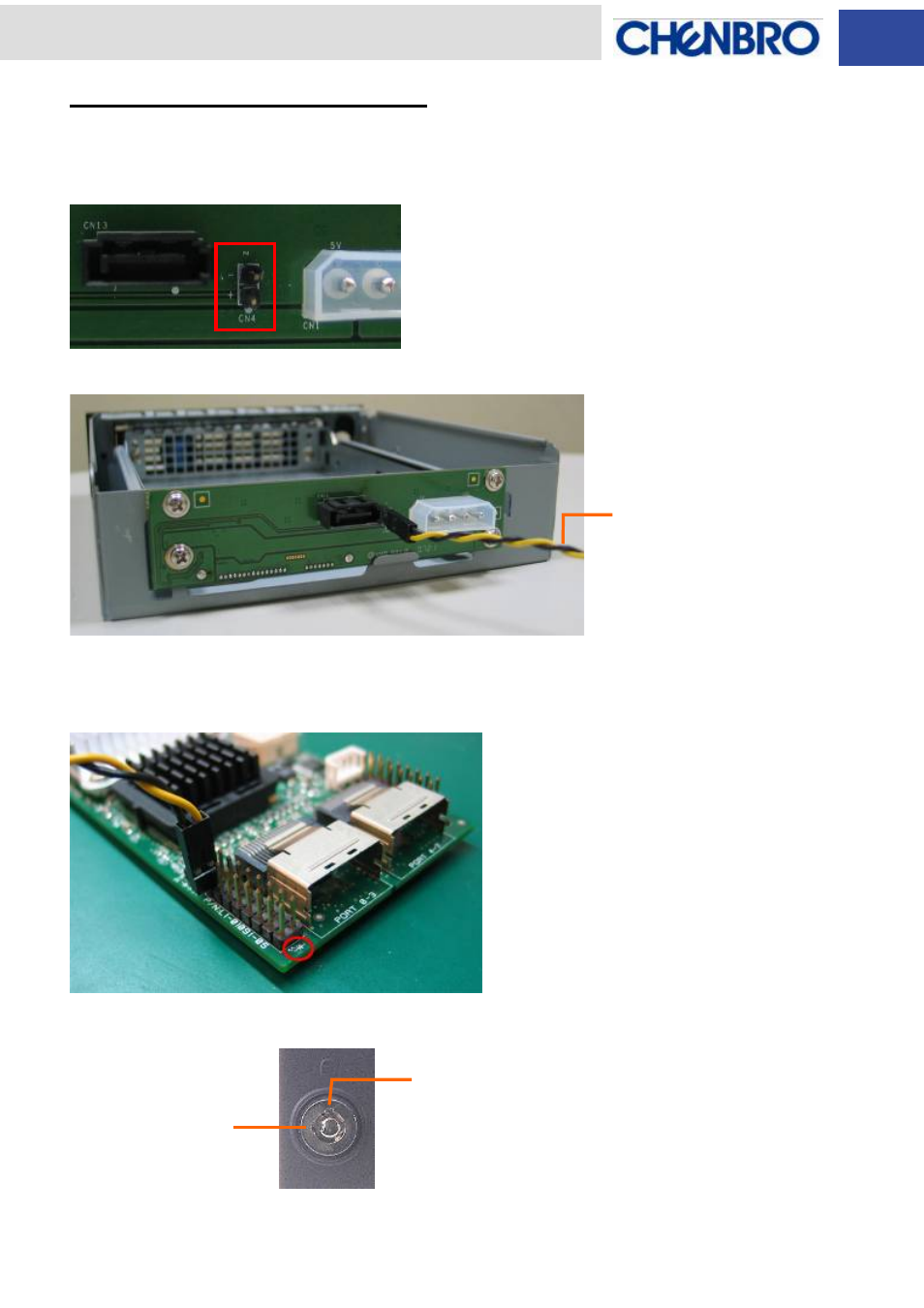

Connector & Switch Definition
HDD Failure Signal Connector
This connector is for the SAS / SATA RAID card with HDD failure signal support such as LSI MegaRAID
8308ELP. Connect the 2-pin cable on SK31101 backplane and RAID card to activate the HDD failure LED.
Setting for HDD Failure Signal Cable Connection (SK31101)
Setting for HDD Failure Signal Cable Connection (RAID Card)
Connect the yellow wire of the cable to the CATHODE of the HDD failure connector on RAID card.
Refer to your RAID card’s user manual for the detailed pin definition.
Key Lock
Lock
HDD Failure LED Cable:
26H115311-001
Unlock
