Page 11
11
SK31101 ver. A2~A4
User’s Manual
www
.chenbr
o.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]

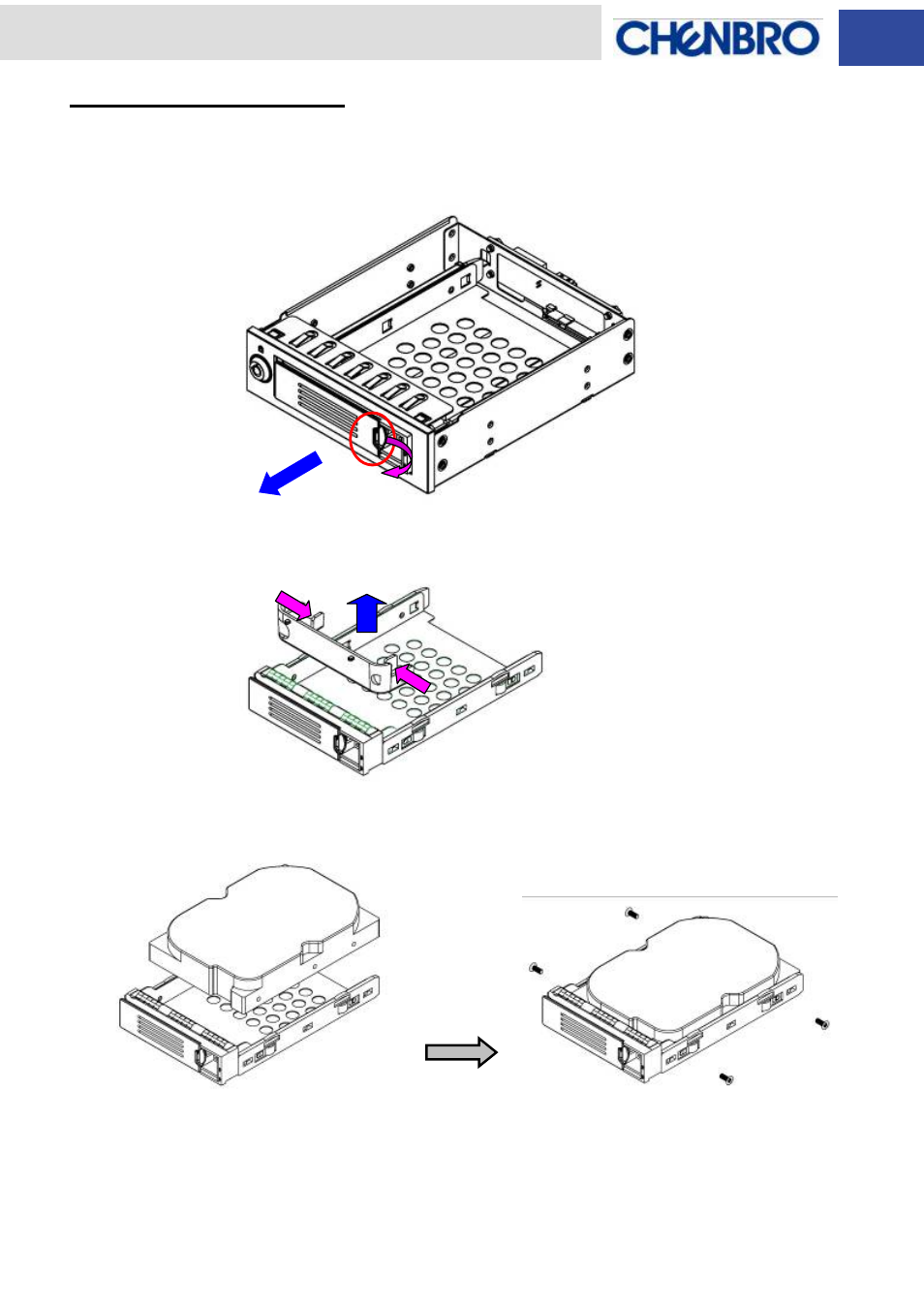

Installation Procedures
The following is the installation procedures of HDD assembly.
Hot-swap HDD Assembly
a. Push the blue latch of HDD tray and pull it out from the cage
b. Remove the vent cover and four screws from the vent cover
c. Attach HDD with four screws per tray
