Chenbro RM418 Series 6Gb/s 24-port 3.5 Expander Backplane(80H10341801A0), For 24-bay 3.5 Hot-swap HDD Cage - Manual User Manual
Page 17
- 17 -
3.5” 24-Port 6Gb/s SAS Expander Backplane 80H10341801A0
User’s Manual

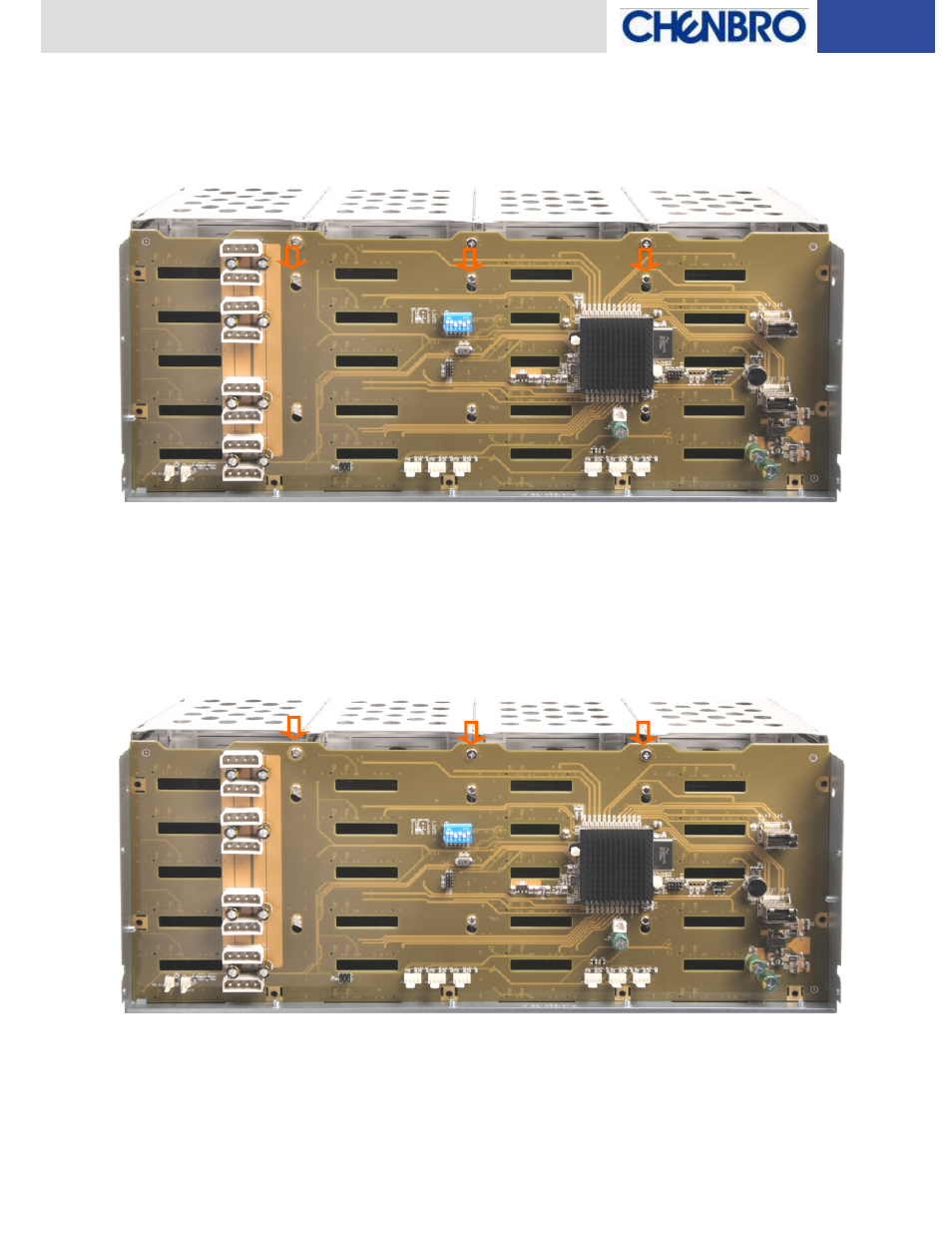

Step 2 : Aim at the three “T” shape stand off on the top of backplane then press downward
until backplane fasten and align with mounting holes
Step 3 : Attach three screws on the top of backplane and fix the backplane on the HDD cage
This manual is related to the following products:
