Page 13
- 13 -
3.5” 24-Port 6Gb/s SAS Expander Backplane 80H10341801A0
User’s Manual
SW1-3: TEMP Threshold Setting
Sw1-3
TEMP
ON
65℃
OFF
55℃
SW1-4: FAN Enable/Disable Setting
Sw1-4
FAN
ON
Enable
OFF
Disable
SW1-5: BUZZER Enable/Disable Setting
Sw1-5
BUZZER
ON
Enable
OFF
Disable
SW1-6: SES Enable/Disable Setting
Sw1-6
SES
ON
Enable
OFF
Disable

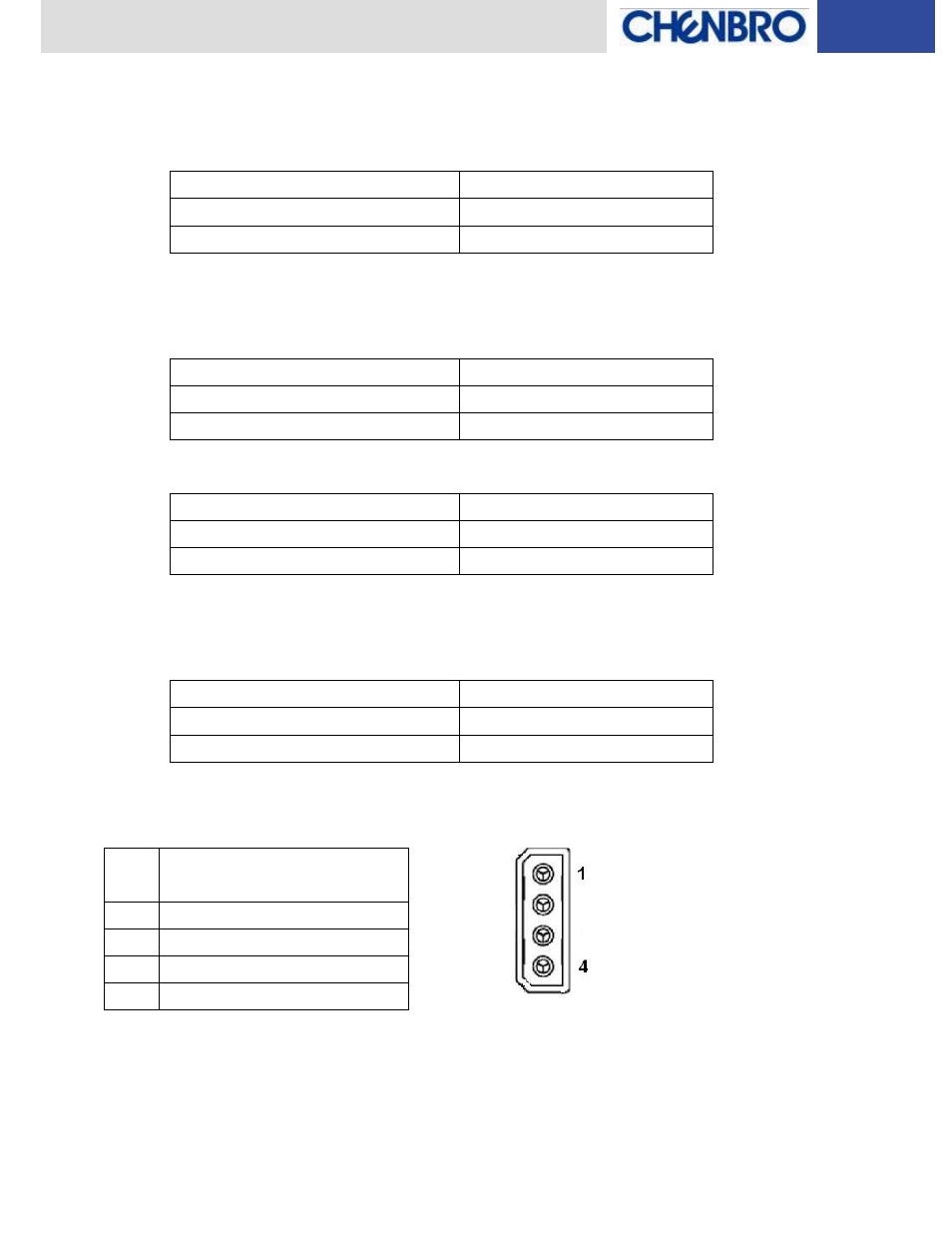

POWER Connector (JP1 ~ JP8)
Pin
NO.
Descriptions
1
12V
2
GND
3
GND
4
5V
