- 15 -
3.5” 24-Port 6Gb/s SAS Expander Backplane 80H10341801A0
User’s Manual
PWM (Pulse Width Modulation) Function of Backplane
See the table below for PWM level
Duty Cycle
Under 45℃ (113℉) 50%
45℃~50℃ (113℉~122℉) 85%
50℃ (122℉) and above 100%

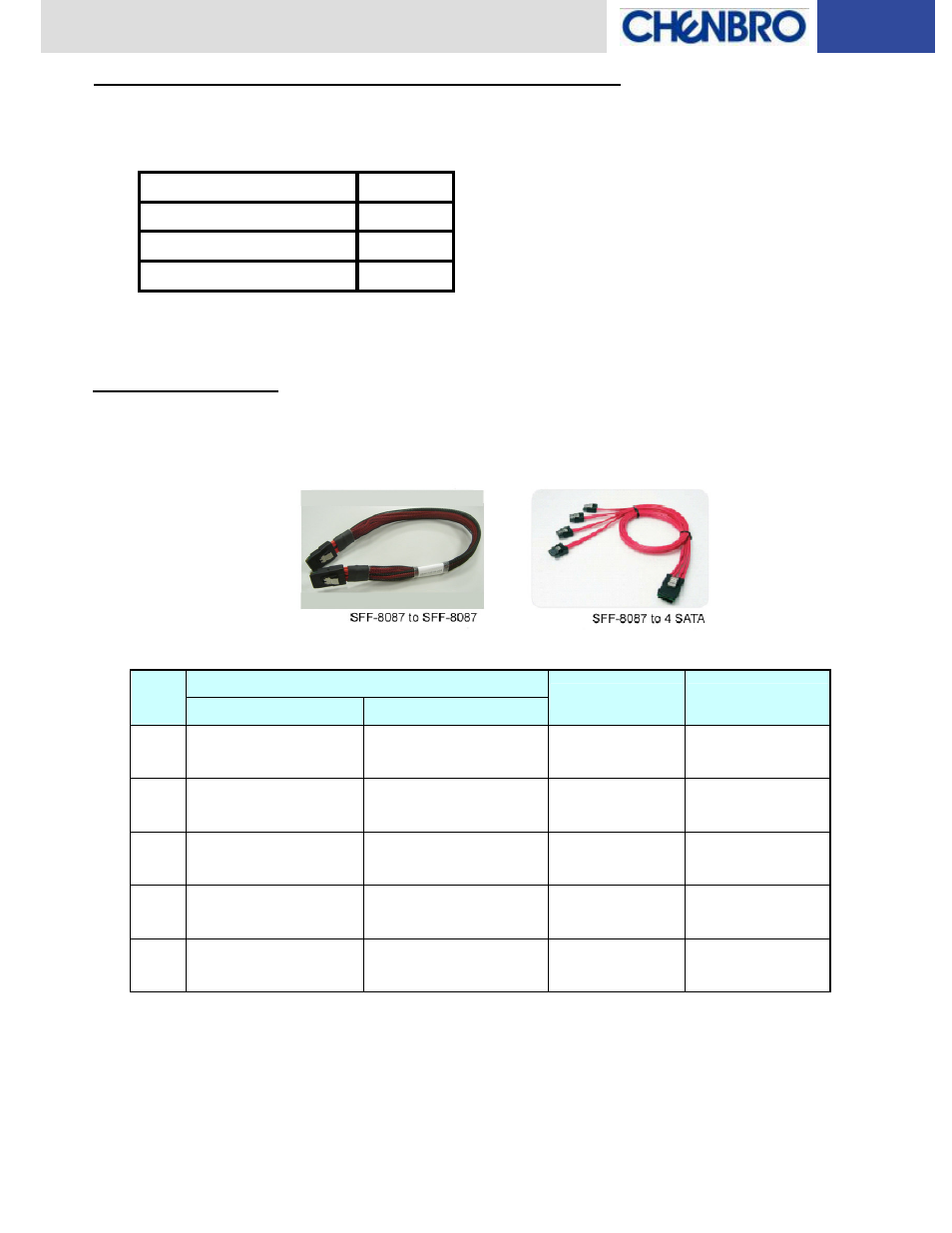

Mini-SAS Cables
RM23212 SAS Expander Backplane provides most benefits to users using various SAS RAID card via
different conversion cables. Chenbro provides various cables for different interfaces which include the
followings:
Connector Cable
Type Host (RAID Card) Side Backplane Side
P/N Length
A1
Mini-SAS
(SFF-8087 36pin)
Mini-SAS
(SFF-8087 36pin)
26H113215-027 200 mm
A2
Mini-SAS
(SFF-8087 36pin)
Mini-SAS
(SFF-8087 36pin)
26H113215-028 350 mm
A3
Mini-SAS
(SFF-8087 36pin)
Mini-SAS
(SFF-8087 36pin)
26H113215-029 500 mm
A4
Mini-SAS
(SFF-8087 36pin)
Mini-SAS
(SFF-8087 36pin)
26H113215-030 600 mm
B SATA-7Pin x4
Mini-SAS
(SFF-8087 36pin)
26H113215-010 600 mm
(A) (B)
