Rev. B-020907 P/N VDC24041AA-MNL
BatteryMINDer ® Model 24041-AA
Page 15
9LL=JQ'#(=J ¸
Charger / Maintainer /
Full Time De-Sulfator - Conditioner
24-Volt @ 4 Amp
Model 24041-AA
4 A
Select
Charge Rate
Until
Aviation Lit
Green = Power ON
ERROR:
Red = Polarity Reversed
/ Battery = less than 6-Volts*
Red (Blinking) = Battery Fault / Battery Weak*
Charge - Float
Green (solid) = Charging
Green (blinking) = Float (maintenance)
*See Instruction Manual
PRESS PRESS PRESS
Battery Condition Indication
Power On & Battery Connected
Before Start Charge:
Green = OK - Accepted
Yellow = Weak / Sulphated / Deep Discharge*
After Charge:
Green = Good
Yellow = Sulphated / Weak* MAINTENANCE
(FLOAT)
U.S. Patents: 5783929 & 6078166
Start / Reset
/ Stop
VDC Electronics, Inc.
800-379-5579 (ET)
www.vdcelectronics.com
AVIATION
Hold for 5 sec. for full reset
RED RED RED
GEL AGM FLOODED
GEL ON OFF OFF
AGM OFF ON OFF
FLOODED OFF OFF ON
GREEN GREEN GREEN
1A 2A 4A
1A ON OFF OFF
2A OFF ON OFF
4A OFF OFF ON

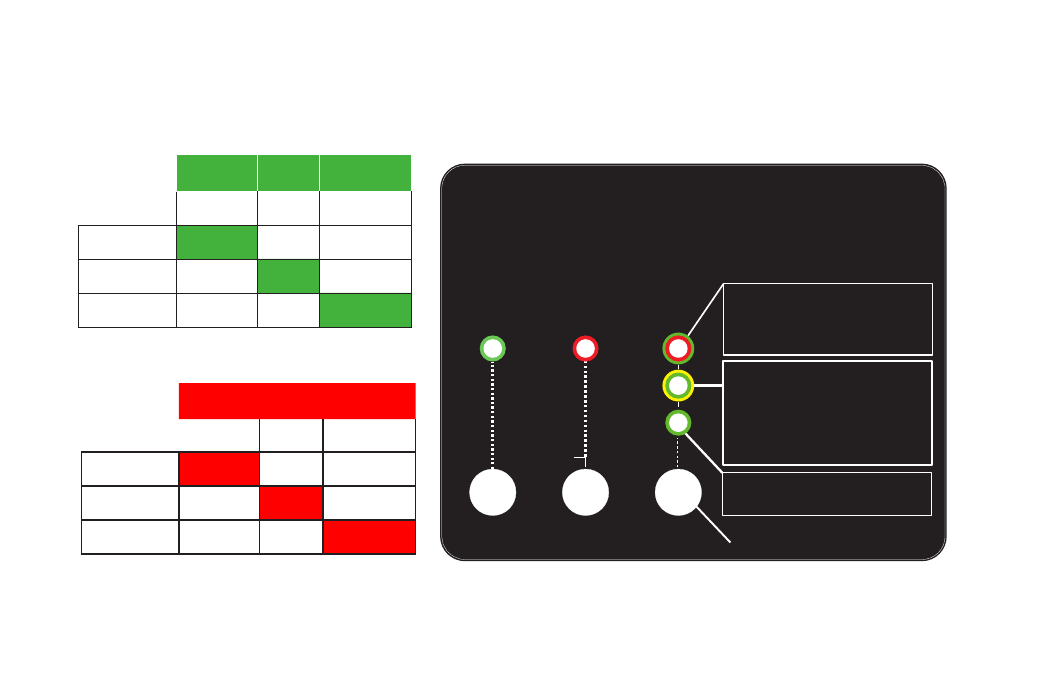

LED INDICATOR FUNCTIONS
LED indicators refer to charger label at right
TABLE 5
TABLE 6
