MODEL NUMBER: IAP10010, IEP10010, IEPD10010 & IEPDS10010
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419 * Fax: 816-891-6599
E-mail: [email protected] Website: www.bvahydraulics.com
Parts Illustration
Note: Not all components of the press are replacement items, but are illustrated as a convenient reference of location and
position in the assembly sequence.
9

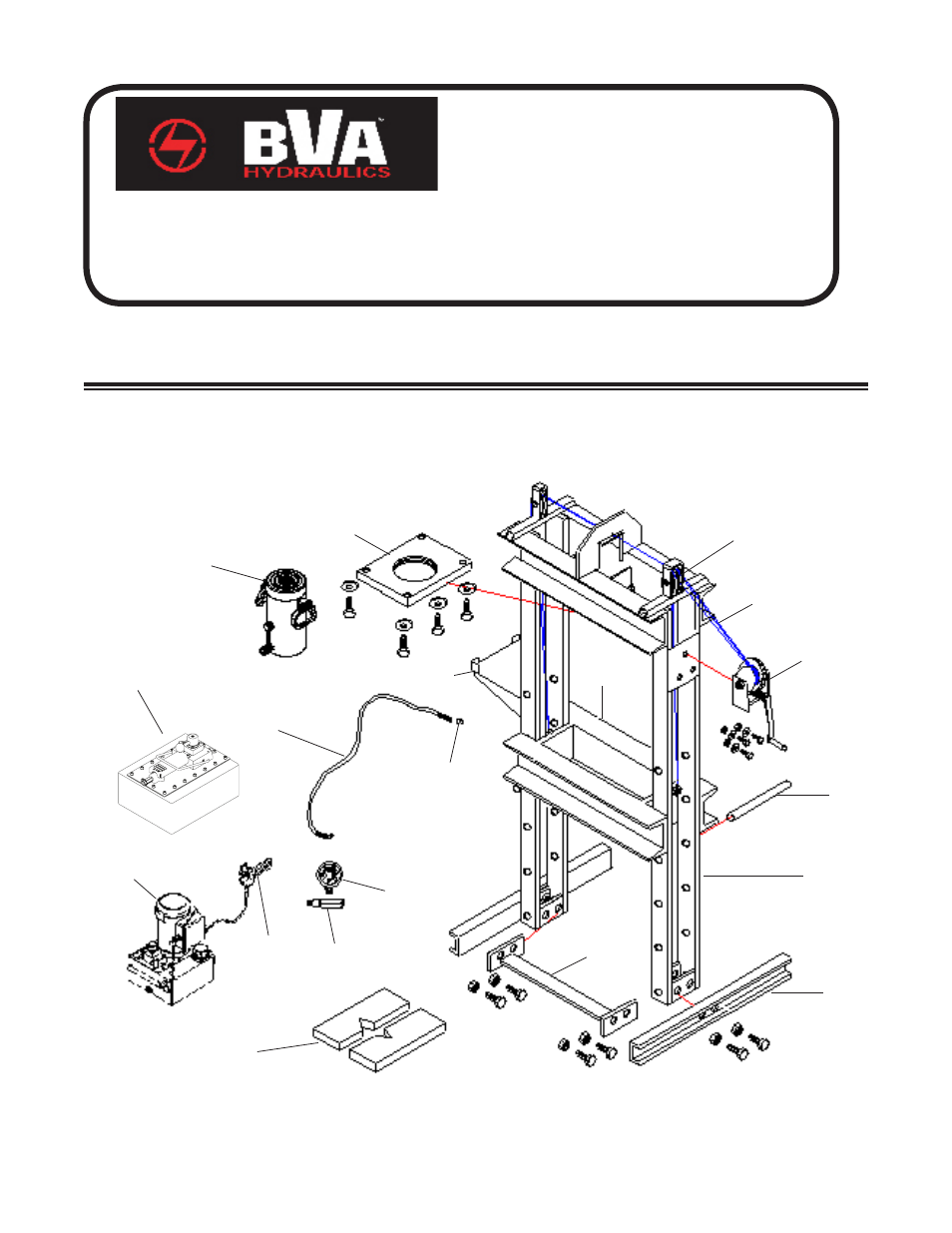

Figure 4- Replacement Parts Illustration for Models IAP10010, IEP10010, IEPD10010 & IEPDS10010
10
13
15
16
17
11b
1
3
2
4
5
6
8
7
9
14
12
18
11a
