BVA Hydraulics PW2, PW3, PW4, PW33L, PW43L - Manual (Page 9)

9
Note: Not all components of the valve are replacement items, but are illustrated as a convenient
reference of location and position in the assembly sequence.
PW2-M1
rev 06/08
PW43L
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419 - Fax: 816-891-6599
E-mail: [email protected] Website: www.bvahydraulics.com
*Repair Kits require special skill, training, and equipment to repair. Installation must be done by Authorized Service Center.
Contact BVA for list of Authorized Service Centers.
Item Part No. Description Qty.
1 E05-6-1002-107 Valve Cap, Rotor 1
2 **649-1-0095-406 Socket Head Cap Screw 4
3 514-2-0060-102 Detent Spring 1
4 601-7-0008-009 Steel Ball 1
5 E05-6-1003-109 Valve Block, Upper 1
6 511-7-0444-109 O-ring 1
7 511-7-0158-108 O-ring 1
8 611-3-0200-106 Thrust Washer 1
9 622-6-0200-109 Thrust Bearing 1
10 E05-3-1005-105 Selector Cam 1
11 E05-6-1001-105 Shear Seal Valve Body 3
11a * 573-7-0081-101 Back-up Ring 2
11b * 511-7-0081-109 O-ring 2
12 601-3-0111-107 Spring Washer 3
13 D09-6-1024-106 Valve Block, Lower 1
14 **649-1-0095-507 Socket Head Cap Screw 4
15 609-1-0075-105 Hex Socket Plug 2
16 E05-6-1010-103 Gasket, Lower Valve Block 1
17 641-1-0100-104 Socket head Cap Screw 2
18 E05-6-1009-101 Lever 1
19 E05-6-1008-109 Lever Knob 1
20 601-4-0060-101 Spring Pin 1
21 D05-6-1001-106 Hex Head Plug 1
22 E05-6-1004-101 Fluid Connector Valve 1
22a 573-7-0097-106 Back-up Ring 2
22b 511-7-0095-100 O-ring 2
23 D09-4-1004-108 ***Locking Valve Block Assembly 1
- E05-3-9911-106 *Repair Kit, Valve Assy 1
- E05-3-9910-104 **Bolt Kit 1
- PW2-M1 OIPM 1
*** repair kit N/A, available as complete assembly only
File name: D09050708EXP.slddrw Date: 2007.08.28
Drawn By: 黃長發 Checked By: Approved By:
1
2
11
3
4
5
6
7
8
9
10
11
11
23
12
13
14
15
16
17
18
19
20
21
22 22a
22b
22b

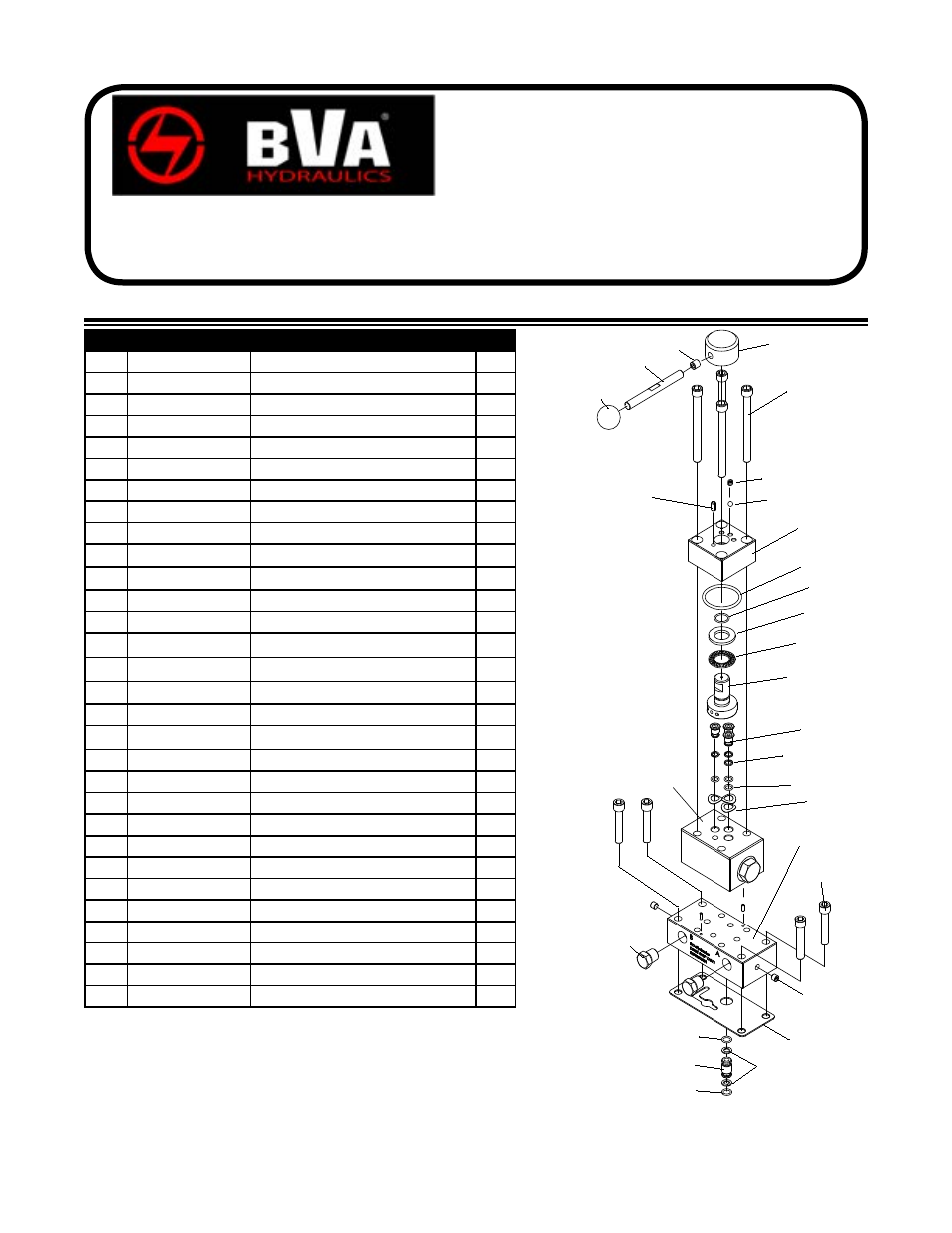

Pump Mounted Control
Valve Service Parts
