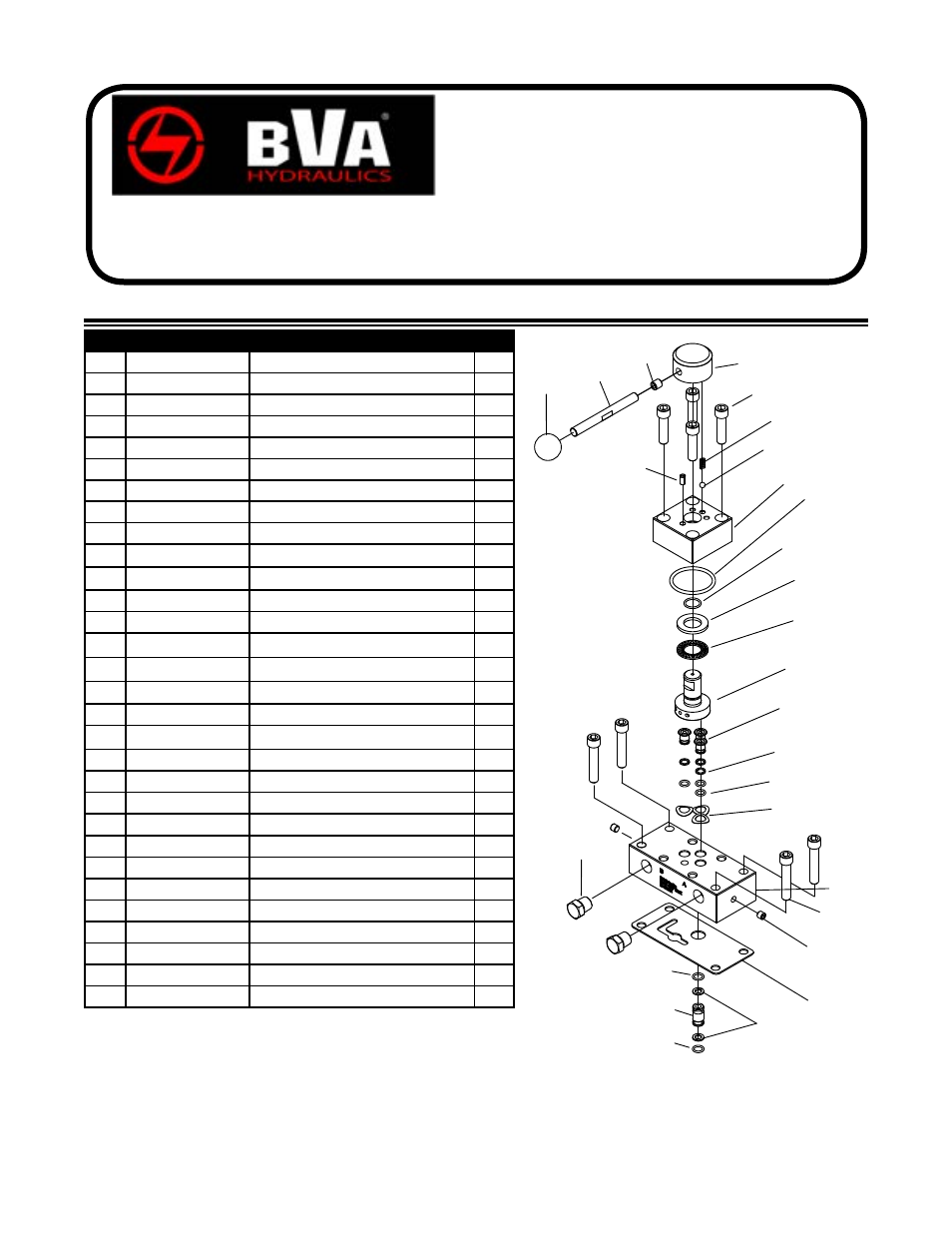

Note: Not all components of the valve are replacement items, but are illustrated as a convenient
reference of location and position in the assembly sequence.
PW2-M1
rev 06/08
PW4
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419 - Fax: 816-891-6599
E-mail: [email protected] Website: www.bvahydraulics.com
*Repair Kits require special skill, training, and equipment to repair. Installation must be done by Authorized Service Center.
Contact BVA for list of Authorized Service Centers.
1
2
3
4
5
6
7
8
9
10
12
13
15
16
17
18
19
22
22b
22b
11
11b
11a
14
20
21
22a
Item Part No. Description Qty.
1 E05-6-1002-107 Valve Cap, Rotor 1
2 **649-1-0095-305 Socket Head Cap Screw 4
3 514-2-0060-102 Detent Spring 1
4 601-7-0008-009 Steel Ball 1
5 E05-6-1003-109 Valve Block, Upper 1
6 511-7-0444-109 O-ring 1
7 511-7-0158-108 O-ring 1
8 611-3-0190-109 Thrust Washer 1
9 622-6-0190-102 Thrust Bearing 1
10 E05-3-1005-105 Selector Cam 1
11 E05-6-1001-105 Shear Seal Valve Body 3
11a * 573-7-0081-101 Back-up Ring 2
11b * 511-7-0081-109 O-ring 2
12 601-3-0111-107 Spring Washer 3
13 D09-6-1007-106 Valve Block, Lower 1
14 **649-1-0095-507 Socket Head Cap Screw 4
15 609-1-0075-105 Hex Socket Plug 2
16 E05-6-1010-103 Gasket, Lower Valve Block 1
17 641-1-0100-104 Socket head Cap Screw 2
18 E05-6-1009-101 Lever 1
19 E05-6-1008-109 Lever Knob 1
20 601-4-0060-101 Spring Pin 1
21 D05-6-1001-106 Hex Head Plug 1
22 E05-6-1004-101 Fluid Connector Valve 1
22a 573-7-0097-106 Back-up Ring 2
22b 511-7-0095-100 O-ring 2
23 H18-6-8104-106 Socket Head Threaded Plug 1
- E05-3-9911-106 *Repair Kit, Valve Assy 1
- E05-3-9910-104 **Bolt Kit 1
- PW2-M1 OIPM 1
Pump Mounted Control
Valve Service Parts
