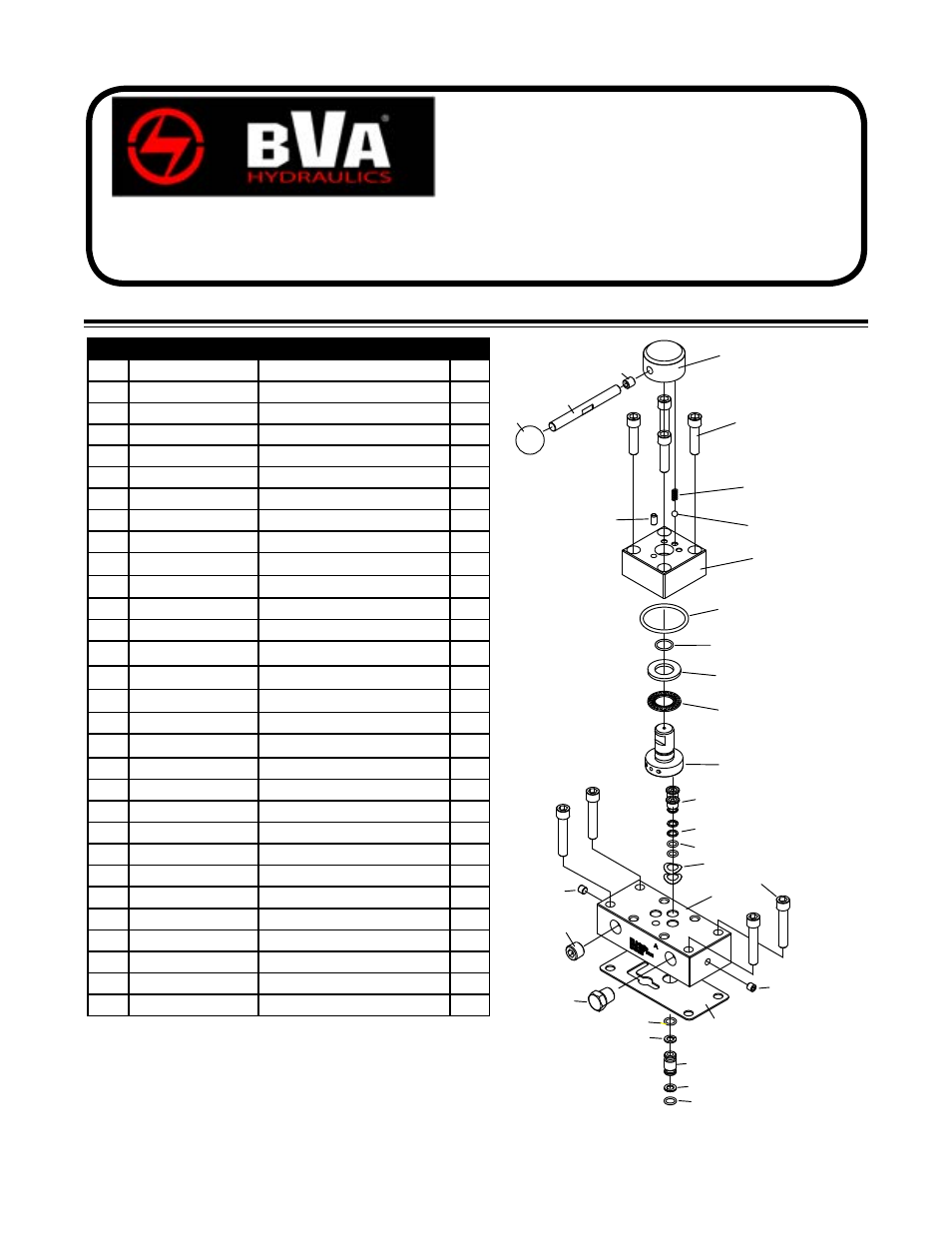

Note: Not all components of the valve are replacement items, but are illustrated as a convenient
reference of location and position in the assembly sequence.
PW2-M1
rev 06/08
PW3
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419 - Fax: 816-891-6599
E-mail: [email protected] Website: www.bvahydraulics.com
*Repair Kits require special skill, training, and equipment to repair. Installation must be done by Authorized Service Center.
Contact BVA for list of Authorized Service Centers.
Item Part No. Description Qty.
1 E05-6-1002-107 Valve Cap, Rotor 1
2 **649-1-0095-305 Socket Head Cap Screw 4
3 514-2-0060-102 Detent Spring 1
4 601-7-0008-009 Steel Ball 1
5 E05-6-1003-109 Valve Block, Upper 1
6 511-7-0444-109 O-ring 1
7 511-7-0158-108 O-ring 1
8 611-3-0190-109 Thrust Washer 1
9 622-6-0190-102 Thrust Bearing 1
10 E05-3-1005-105 Selector Cam 1
11 E05-6-1001-105 Shear Seal Valve Body 2
11a * 573-7-0081-101 Back-up Ring 2
11b * 511-7-0081-109 O-ring 2
12 601-3-0111-107 Spring Washer 2
13 D09-6-1009-100 Valve Block, Lower 1
14 **649-1-0095-507 Socket Head Cap Screw 4
15 609-1-0075-105 Hex Socket Plug 2
16 E05-6-1010-103 Gasket, Lower Valve Block 1
17 641-1-0100-104 Socket head Cap Screw 2
18 E05-6-1009-101 Lever 1
19 E05-6-1008-109 Lever Knob 1
20 601-4-0060-101 Spring Pin 1
21 D05-6-1001-106 Hex Head Plug 1
22 E05-6-1004-101 Fluid Connector Valve 1
22a 573-7-0097-106 Back-up Ring 2
22b 511-7-0095-100 O-ring 2
23 H18-6-8104-106 Socket Head Threaded Plug 1
- E05-3-9911-106 *Repair Kit, Valve Assy 1
- E05-3-9910-104 **Bolt Kit 1
- PW2-M1 OIPM 1
2
3
4
5
6
7
8
9
10
12
14
13
11
11a
11b
19
18
17
20
15
16
22
21
23
22a
22b
22a
22b
15
1
Pump Mounted Control
Valve Service Parts
