2
Save these instructions. For your safety, read and
understand the information contained within. The owner and
operator shall have an understanding of this product and safe
operating procedures before attempting to use this product.
Instructions and safety information shall be conveyed in
the operator's native language before use of this product
is authorized. Make certain that the operator thoroughly
understands the inherent dangers associated with the use and
misuse of the product. If any doubt exists as to the safe and
proper use of this product as outlined in this factory authorized
manual, remove from service immediately.
Inspect before each use. It is recommended that, prior to
each use, an inspection be done by qualified personnel and
that any missing or damaged parts, decals, warning/ safety
labels or signs be replaced with BVA Hydraulics authorized
replacement parts only. Any pump that appears to be damaged
in any way, is worn, leaking or operates abnormally shall be
removed from service immediately until such time as repairs
can be made. Any pump that has been or suspected to have
been subject to a shock load (a load dropped suddenly,
causing the system pressure to exceed 12,000 PSI), shall
be removed from service immediately until checked out by
a BVA Hydraulics authorized service center. Owners and
operators of this equipment shall be aware that the use and
subsequent repair of this equipment may require special
training and knowledge.
SPECIFICATIONS
Model Num-
ber
Usable Oil
Capacity
(in 3 )
Rated
Pressure
(psi)
Output Flow Rate
(in 3 /min)
Input Air
Pressure
(psi)
Output Port
Thread
(Oil)
Input Port
Threads
(Air)
Weight
(lbs w/
fluid) No Load Load
PA3801-HP12 231.9 12,000 42 14 110-175 3/8 - 18NPTF 1/4 - 18NPTF 27

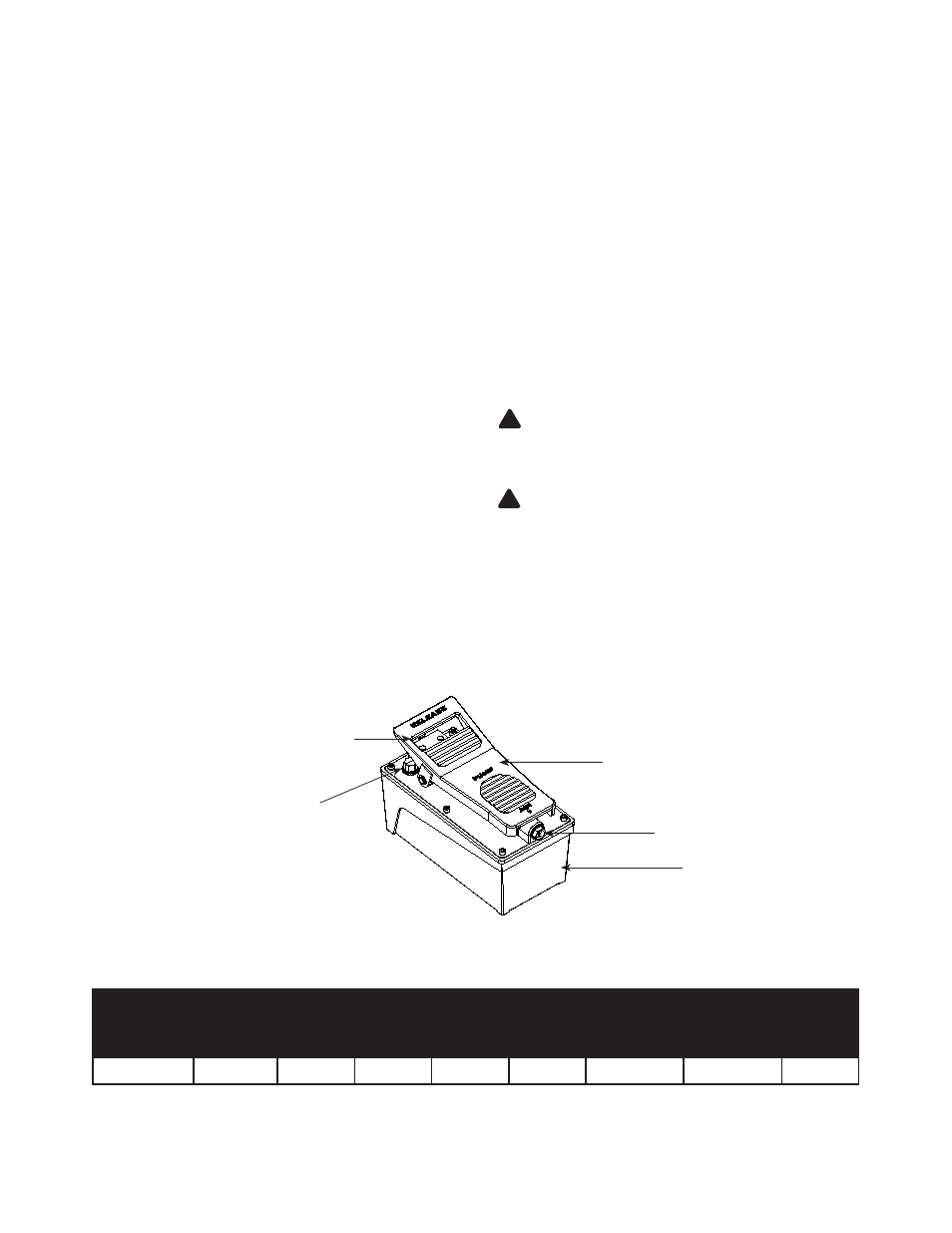

Reservoir
Manifold Plug/ Oil Output Port
Plastic Cap/ Air Input Port
Foot Pedal
Shipping/ Air Vent Plug
(replace Shipping Plug with
Air Vent Plug prior to use)
!
!
PRODUCT DESCRIPTION
BVA Hydraulics Air Hydraulic Pumps are engineered to meet
most Industrial Standards for Performance and Safety. Its
unique hydraulic circuit allows quick displacement of hydraulic
fluid under no load conditions and easy pumping in loaded
conditions. These air actuated pumps supply compressed
hydraulic fluid to compatible applications i.e. rams, presses,
spreaders, compactors and crimping machines, anywhere
that 12,000 PSI of fluid pressure is needed. Special skill,
knowledge and training may be required for a specific task
and the product may not be suitable for all the jobs described
above. Unsuitable applications would include applications
that call for a device to move, level or support persons,
animals, hazardous materials, mobile homes/ dwellings in
general, mirrors and/or plate glass, and/or to connect/secure
hatches, components, etc. between bulkheads. The user
must ultimately make the decision regarding suitability of
the product for any given task and assume the responsibility
of safety for himself or herself and others in the work area.
WARNING: To reduce the risk of personal injury and/or
property damage, ensure that the rated working pressure of
each pressurized attachment be equal to or greater than the
rated working pressure developed by the hydraulic pump.
WARNING: Always check connections before using.
Alteration of these products is strictly prohibited. Use only
those adapters and attachments provided and approved by
the manufacturer.
