8
1
* - indicates items included in, and available only as part of Seal Kit; N/A - part is not available as replacement
14
Item Part Number for Model: Description Qty
H5506 H5513 H7506
1 N/A N/A N/A Cylinder Housing 1
2 N/A N/A N/A Ram Plunger 1
3 H55-6-1103-100 H55-6-1103-100 H55-6-1103-100 Saddle 1
4 649-1-0010-109 649-1-0010-109 649-1-0010-109 Bolt 2
5 H55-6-2305-107 H55-6-2305-107 H75-6-2305-103 Protecting Cap 1
6 * * * Dust Seal 1
7 H55-5-1804-104 H55-5-1804-104 H75-5-1804-100 Upper Bearing 1
8 H55-4-0206-103 H55-4-0213-100 H75-4-0206-109 Return Spring Assy. 1
9 H55-5-1204-100 H55-5-1204-100 H75-5-1204-106 Bearing 1
10 * * * Back-up Ring 1
11 * * * U-cup 1
12 * * * Washer 2
13 649-1-0100-302 649-1-0100-302 649-1-0100-302 Bolt 2
14 CH38F CH38F CH38F Female Coupler (3/8” - 18NPTF) 1
15 H02-4-6003-108 H02-4-6003-108 H02-4-6003-108 Dust Cover 1
16 H02-6-1008-105 H02-6-1008-105 H02-6-1008-105 Rubber Plug 1
17 H55-3-1806-106 H55-3-1806-106 H55-3-1806-106 Handle Assy. 2
(*) H55-3-9901-108 H55-3-9901-108 H75-3-9901-106 Seal Kit -
2
12
13
3
4
11
10
9
8
17
15
5
6
7
16
12
13

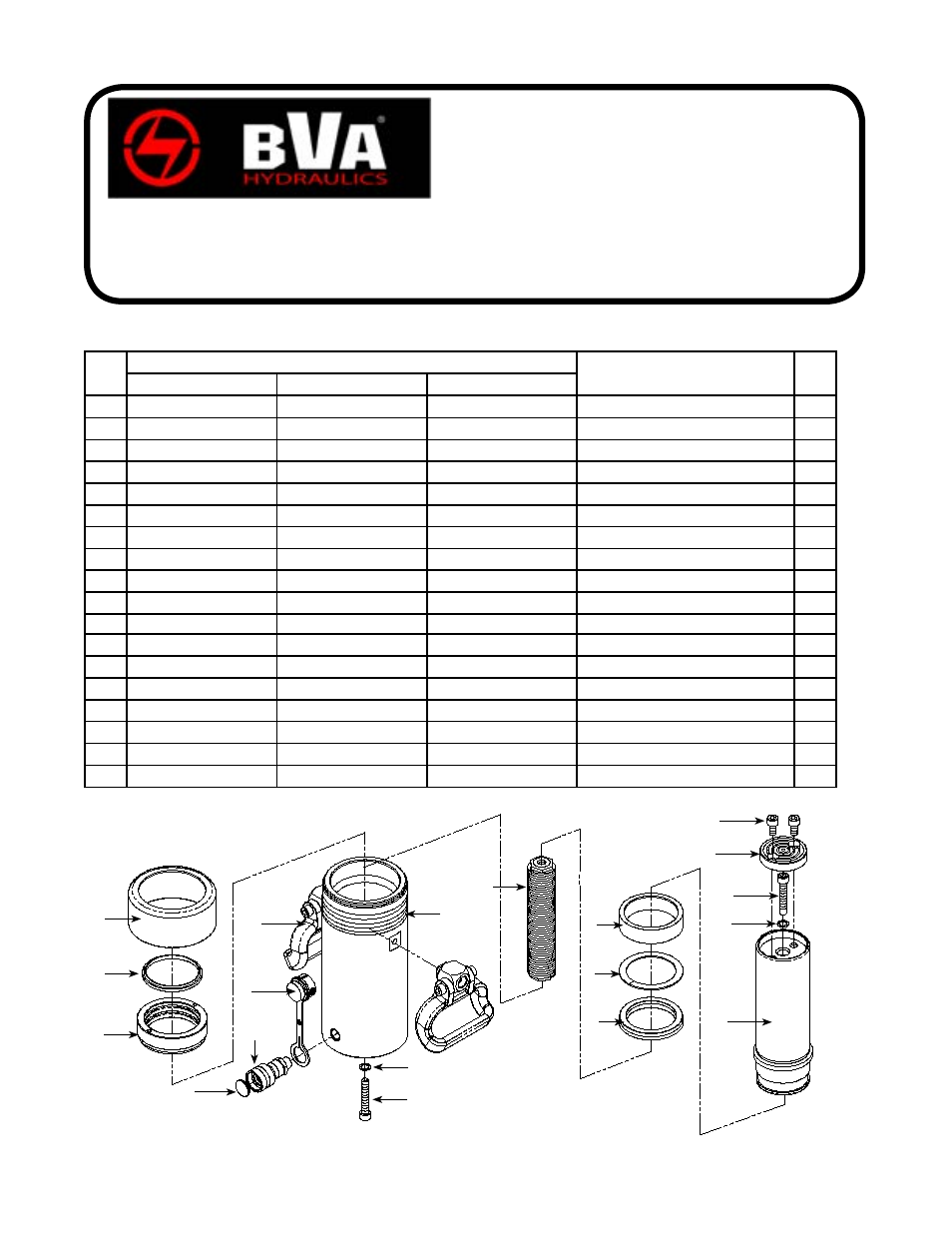

MODELS: H5506, H5513 & H7506
Single Acting Cylinders
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419 * Fax: 816-891-6599
E-mail: [email protected] Website: www.bvahydraulics.com
note: Not all components of the cylinder are replacement items, but are illustrated as a
convenient reference of location and position in the assembly sequence.
H5502-M0
rev 12/12
note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics
Authorized Replacement Parts only.
