Item Part Number Description Qty.
1 N/A Cylinder Housing 1
2 N/A Ram Plunger 1
3 H55-6-1103-100 Saddle 1
4 649-1-0010-109 Bolt 2
5 H55-6-2305-107 Protecting Cap 1
6 * Dust Seal 1
7 H55-5-1804-104 Upper Bearing 1
8 H55-4-0202-105 Return Spring Assy. 1
9 H55-5-1204-100 Bearing 1
10 * Back-up Ring 1
Item Part Number Description Qty.
11 * U-cup 1
12 * Washer 1
13 649-1-0100-302 Bolt 1
14 644-1-0100-105 Bolt 1
15 CH38F Female Coupler
(3/8”-18NPTF)
1
16 H02-4-6003-108 Dust Cover 1
17 H02-6-1008-105 Rubber Plug 1
(*) H55-3-9901-108 Seal Kit -
(*) - indicates items included in, and available only as
part of Seal Kit
N/A - part is not available as replacement
4
5
6
7
1
16
3
2
14
8
9
10
11
17
15
12
13

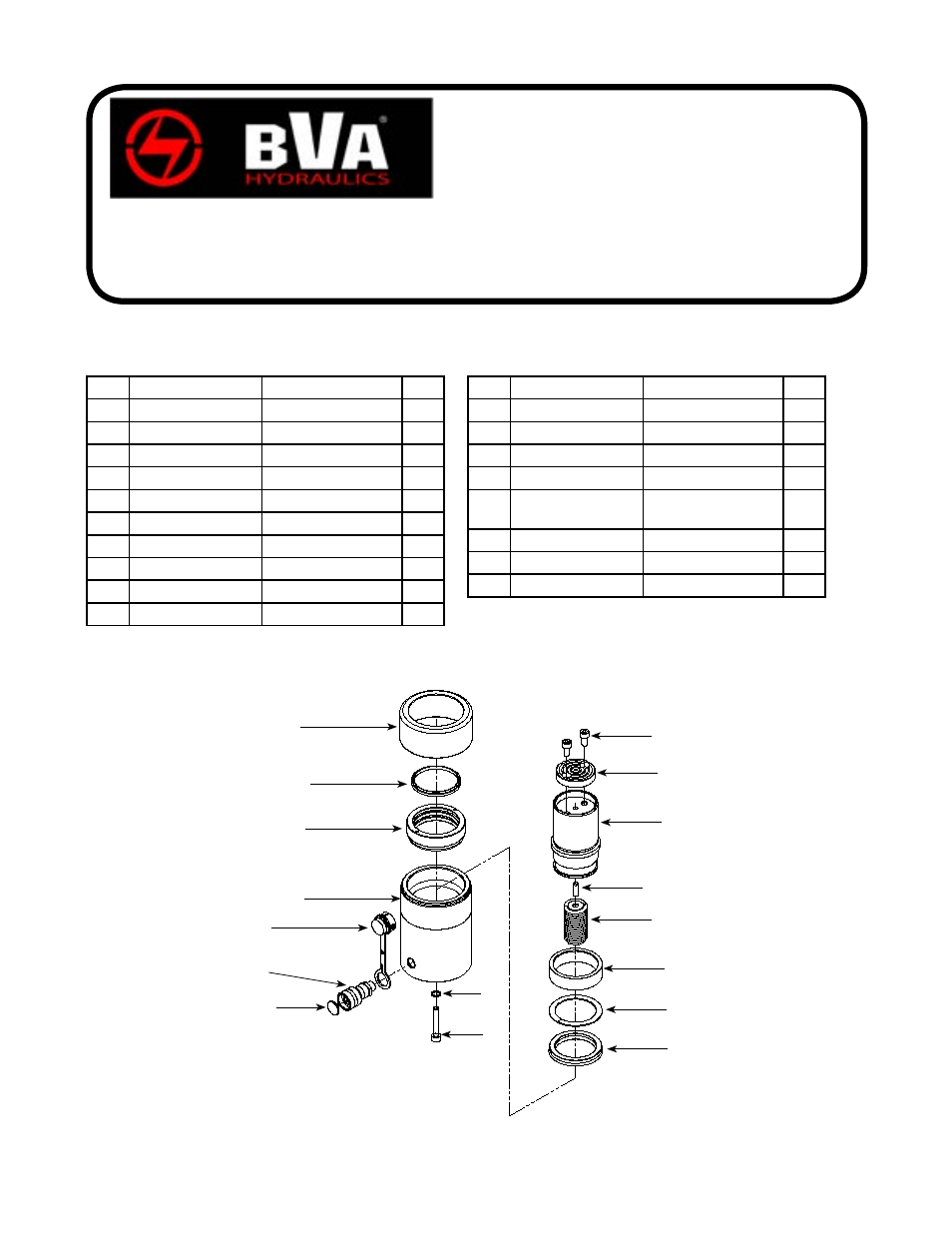

MODEL: H5502
Single Acting Cylinder
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419 * Fax: 816-891-6599
E-mail: [email protected] Website: www.bvahydraulics.com
note: Not all components of the cylinder are replacement items, but are illustrated as a
convenient reference of location and position in the assembly sequence.
H5502-M0
rev 12/12
