Single acting cylinders service parts – BVA Hydraulics H5502--H10010 User Manual
Page 11
11
17
Item Part Number
Description
Qty.
1
N/A
Cylinder Housing
1
2
N/A
Ram Plunger
1
3
H55-6-1103-100
Saddle
1
4
649-1-0010-109
Bolt
2
5
H99-6-2305-107
Protecting Cap
1
6
*
Dust Seal
1
7
H99-5-1804-104
Upper Bearing
1
8
H99-6-2100-109
Spring Base
2
9
614-1-0060-206
Bolt
8
10
H25-4-0208-204
(for H10006)
Return Spring Assy.
4
H25-4-0212-205
(for H10010)
Item Part Number
Description
Qty.
11
H99-5-1204-100
Bearing
1
12
*
Back-up Ring
1
13
*
U-cup
1
14
*
Washer
2
15
649-1-0100-403
Bolt
2
16
CH38F
Female Coupler
(3/8”-18NPTF)
1
17
H02-4-6003-108
Dust Cover
1
18
H02-6-1008-105
Rubber Plug
1
19
H55-3-1806-106
Handle Assy.
2
(*)
H99-3-9901-106
Seal Kit
-
5
6
7
1
4
3
15
18
16
14
2
11
12
13
9
14
15
19
8
10
8
9

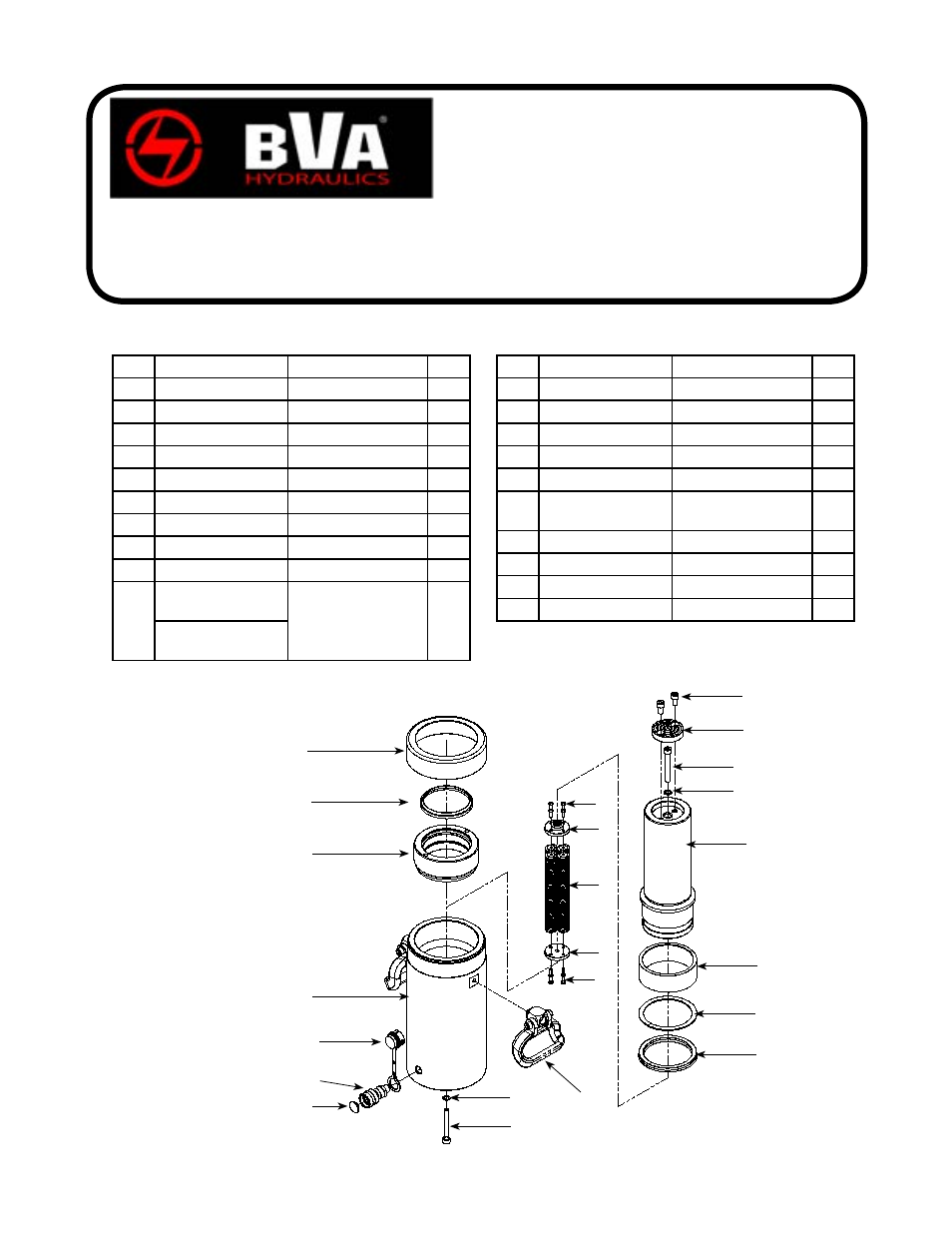

MODEL: H10006 & H10010
Single Acting Cylinders
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419 * Fax: 816-891-6599
E-mail: [email protected] Website: www.bvahydraulics.com
note: Not all components of the cylinder are replacement items, but are illustrated as a
convenient reference of location and position in the assembly sequence.
H5502-M0
rev 12/12
(*) - indicates items included in, and available only as
part of Seal Kit
N/A - part is not available as replacement
note: To ensure safe and
reliable performance, replace
worn or damaged parts with
BVA Hydraulics Authorized
Replacement Parts only.
