BVA Hydraulics H0203 - Manual (Page 6)

6
Single Acting
Cylinder
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419 * Fax: 816-891-6599
E-mail: [email protected] Website: www.bvahydraulics.com
MODEL: H0203
Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and
position in the assembly sequence.

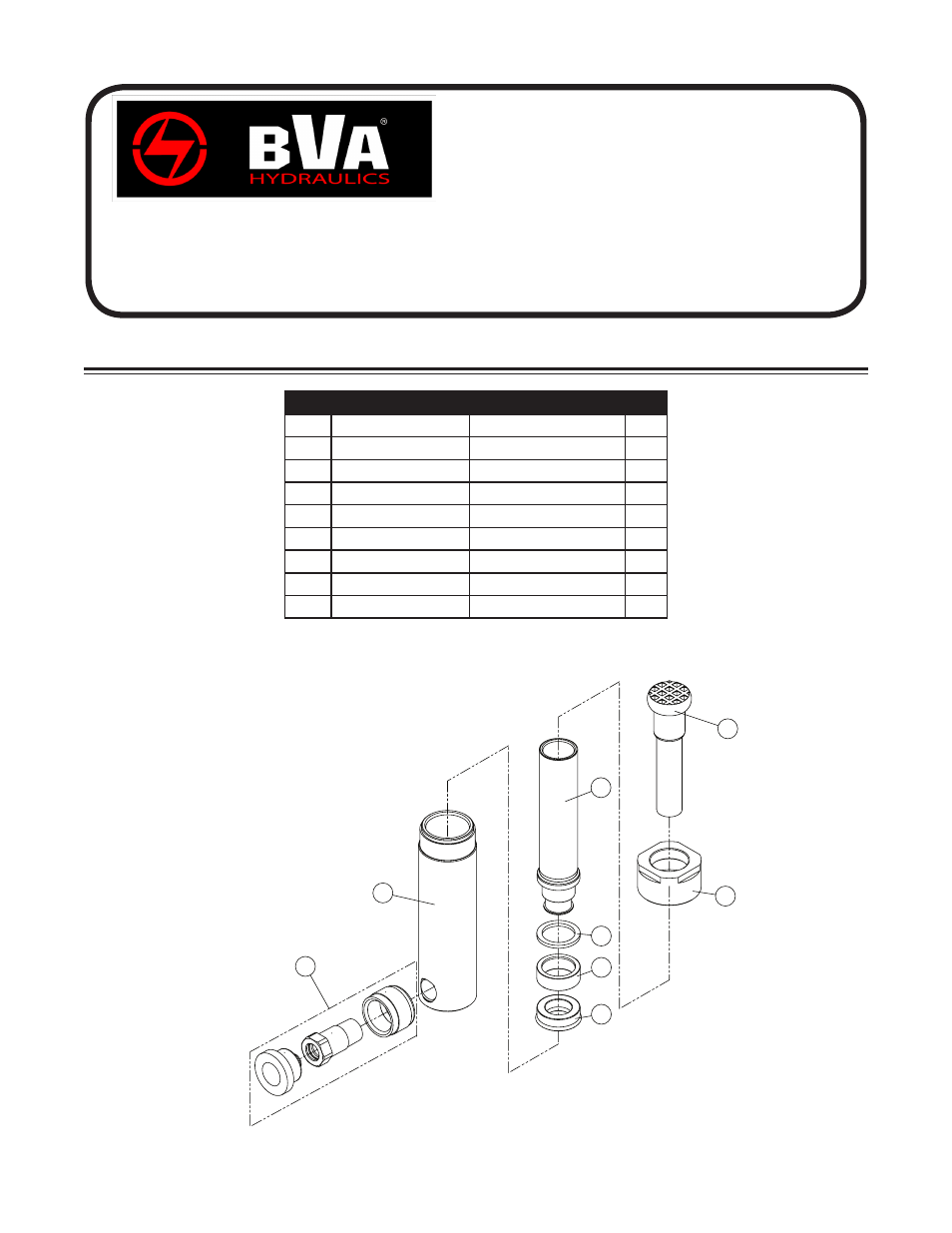

Item Part Number Description Qty.
1 120-3-1100-406 Extension Screw Assy 1
2 H02-6-1804-109 Upper Bearing 1
3 N/A Cylinder 1
4 N/A Ram 1
5 * Bearing 1
6 * Back-up Ring 1
7 * U-cup 1
8 B694M Coupler 1
(*) H02-3-9901-109 Seal Kit 1
4
1
2
6
5
7
8
3
(*) - indicates items included in, and available only as part of Seal Kit
