Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized Replacement

Parts only.

Note: Not all components of the cylinder are replacement items, but are illustrated as a convenient reference of location

and position in the assembly sequence.

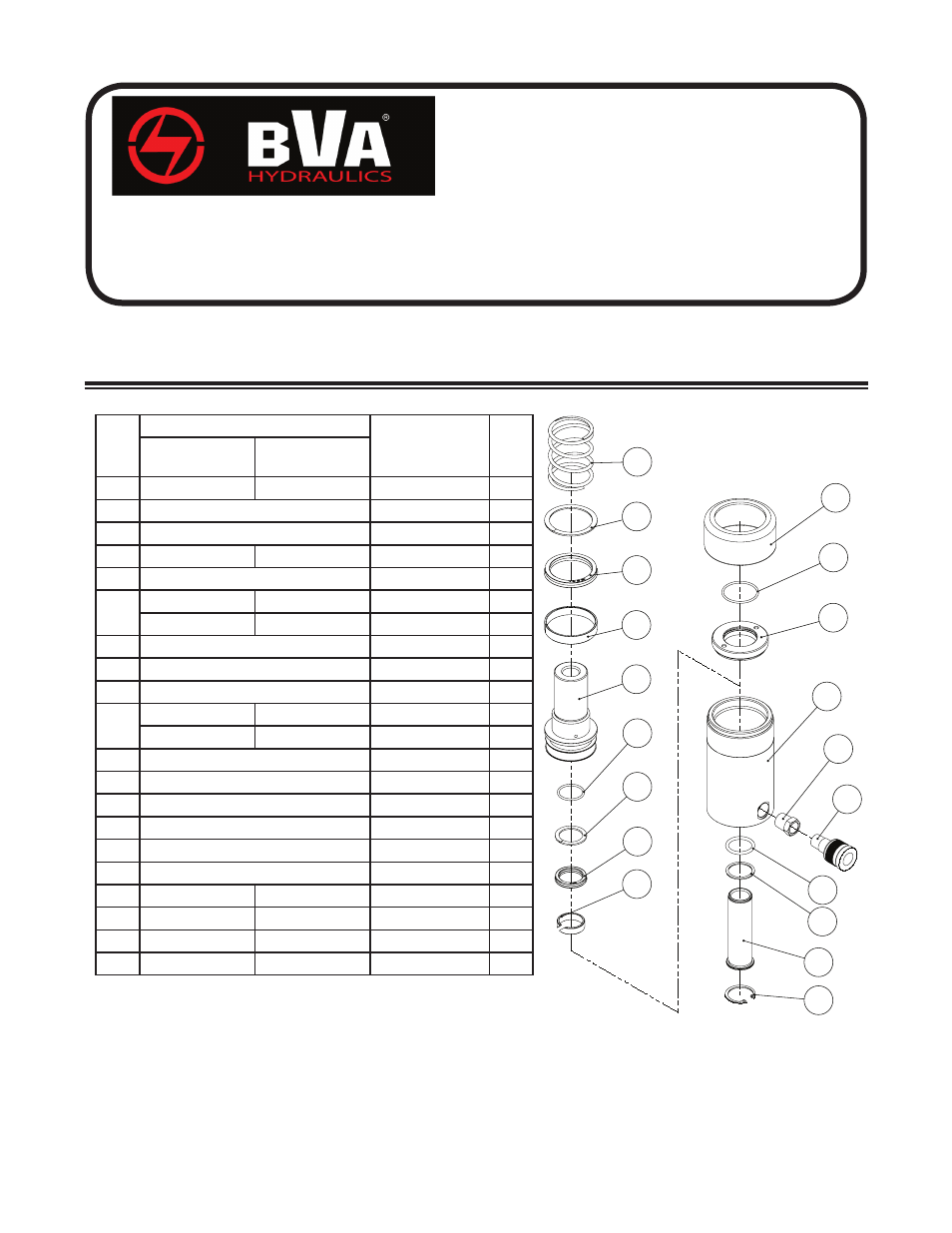

MODELS: HC1201T & HC1202T

Single Acting,

Hollow Hole Cylinders

Service Parts

SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153

Tel: 888-332-6419 * Fax: 816-891-6599

E-mail: [email protected] Website: www.bvahydraulics.com

Item

Part Number for Model:

Description

Qty

HC1201T

HC1202T &

HC1202XT

1

H32-6-2305-100 H32-6-2305-100 Protecting Cap

1

2

*

O-ring

1

3

H32-6-1821-103

Upper Bearing

1

4

512-2-0460-104 512-2-0470-107 Return Spring

1

5

*

Back-up Ring

1

6

*

N/A

O-ring

1

N/A

*

U-cup

1

7

N/A

Ram Plunger

1

8

*

O-ring

1

9

*

Back-up Ring

1

10

*

N/A

O-ring

1

N/A

*

U-cup

1

11

N/A

Cylinder Housing

1

12

*

O-ring

1

13

*

Back-up Ring

1

14

N/A

Center Tube

1

15

666-5-0300-107

C-clip

1

16

434-4-3201-108

Female Coupler

1

17

N/A

H20-6-6008-102 Bushing

1

18

N/A

H32-6-1122-107 Bearing

1

19

N/A

H32-6-1121-105 Bearing

1

(*)

H32-3-9906-103 H32-3-9905-101 Repair Kit

-

(*) - indicates items included in, and available only as part of Repair Kit

N/A - not a component of in this model, or is not available as replacement

1

3

2

11

17

16

12

13

14

15

4

5

6

7

18

8

9

10

19
