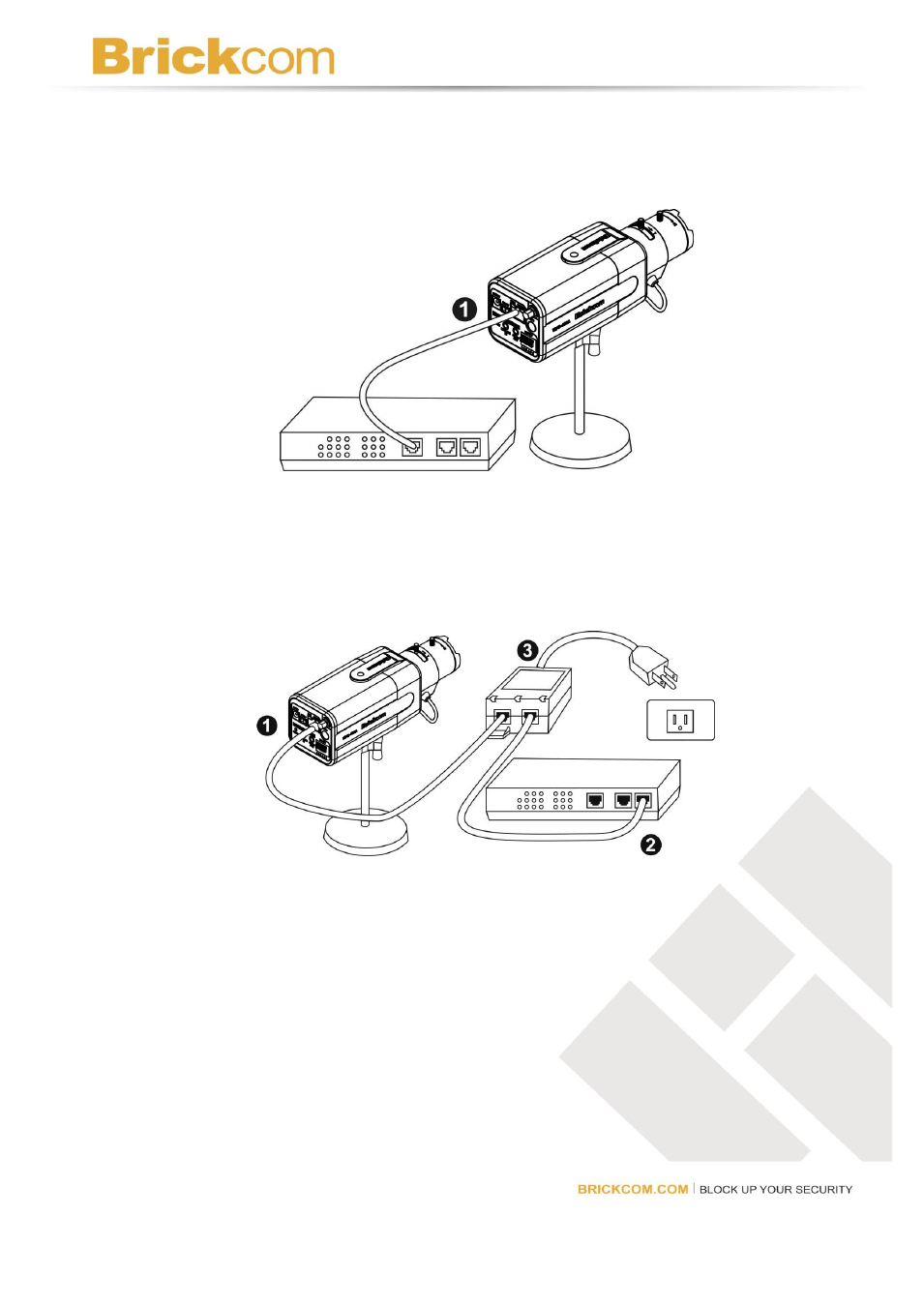

Connection to PoE Switch or Router or Injector
A. PoE Switch or Router:
1) Connect the camera to the PoE switch or router with the RJ-45 Ethernet cable.
B. PoE injector:
1) Connect the camera to the OUT port ("DATA+Power" port, etc.) of the PoE injector
with the RJ-45 Ethernet cable.
2) Connect the IN port ("DATA" port, etc.) of the PoE injector to the switch or router with
the RJ-45 Ethernet cable.
3) Connect the PoE injector to the power outlet
