Page 9: Front panel, 3controls and indicators

Controls and Indicators

3.1

Front Panel

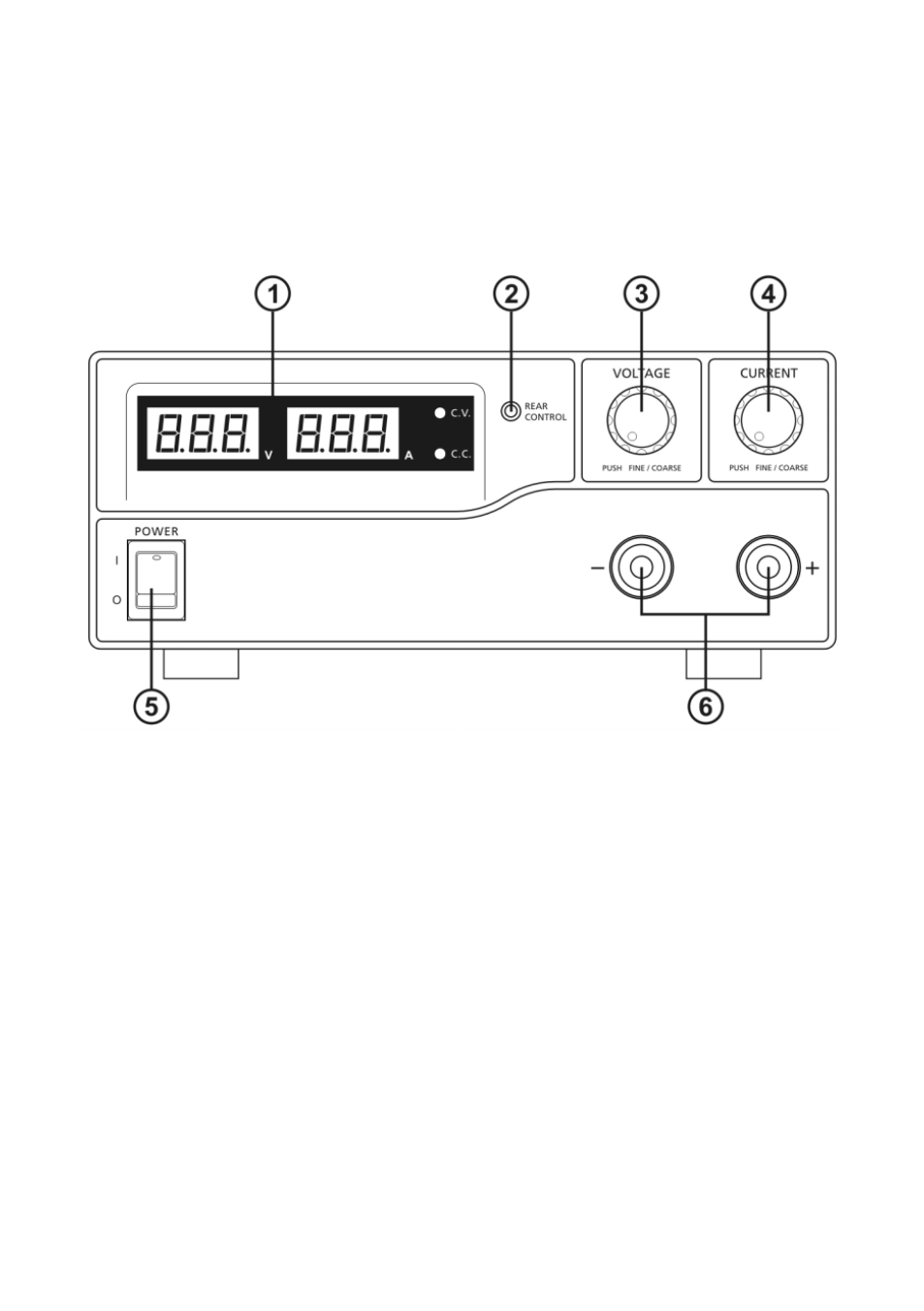

Figure 1 - Front Panel

(1)

LED panel meter display with CV/CC indicator

(2)

Rear Control Indicator (lights up when using Preset/Remote Control/Set mode)

(3)

Output Voltage Control Knob (control main and auxiliary output voltage)

(4)

Output Current Control Knob (control main and auxiliary output current limit)

(5)

Power ON/OFF Switch

(6)

Auxiliary Output Terminal (max 5 A)

Note:

Please see

for more details on using both main and

auxiliary output terminals together.
