Installation and Connection
Accessories Installation
9

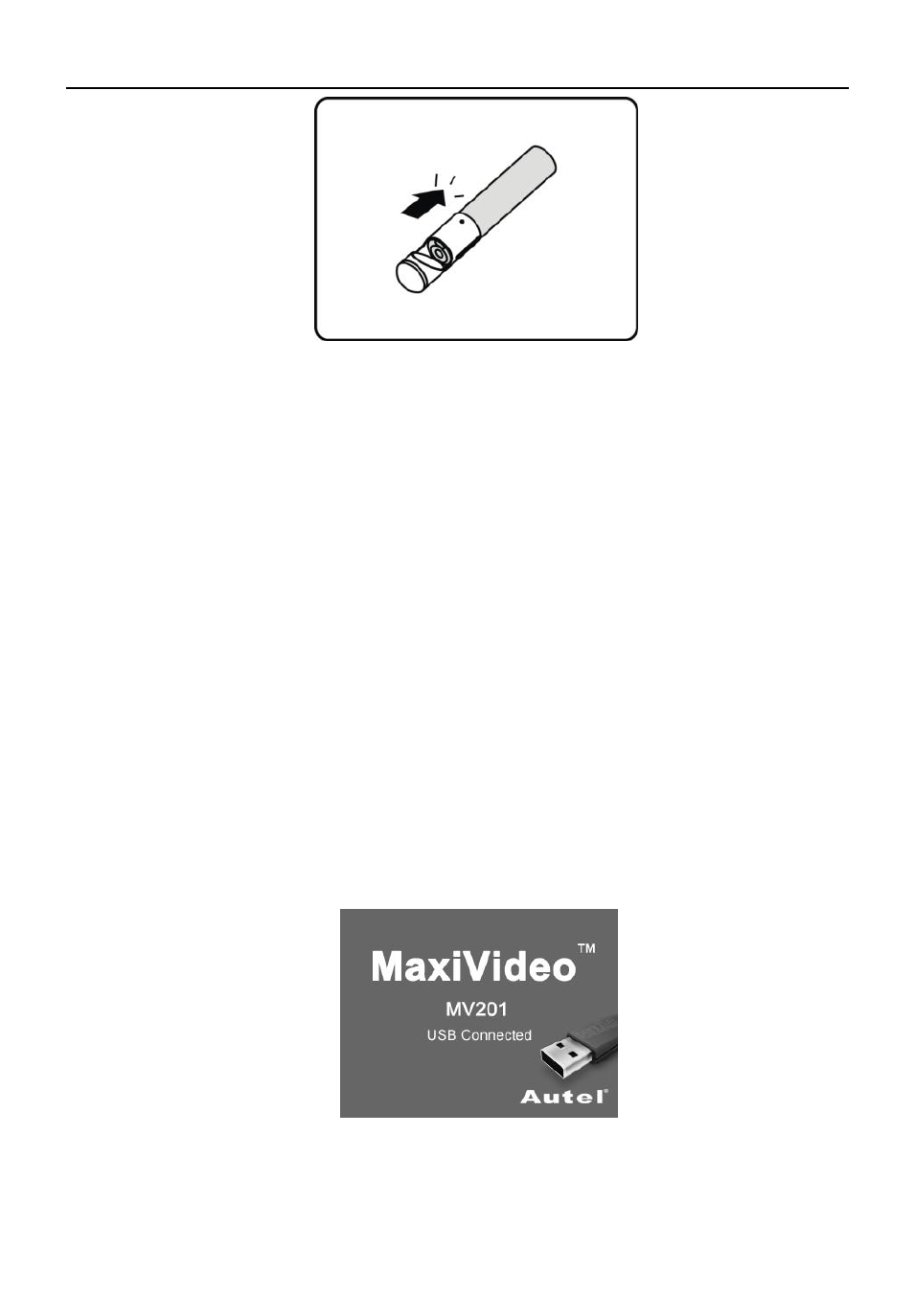

Fig. 6
3.3 SD Card Installation
NOTE: SD card slot provides for additional memory, but SD card is
optional and not included. Different SD cards can be used to insert
into the SD card slot.
To insert an SD card into the SD card slot, make sure the contacts are
facing towards slot and the angled portion of the card is facing down.
When the SD card is installed, a small SD card icon will appear at the
top right
portion of the screen. To remove an SD card, gently push the
SD card inward and then release to eject it from the card slot.
3.4 USB Cable Connection
Use the supplied USB cable to connect the tool to a PC to upload and
view captured photos and videos. A “USB Connected” message will
appear on the screen as shown. (Fig. 7)
Fig. 7
