Text mode
Original mode

While the tool in this mode, contact the probe tip to a circuit, then the
LCD display will read the DC voltage with a resolution of 0.1 volt.
(Figure 3)

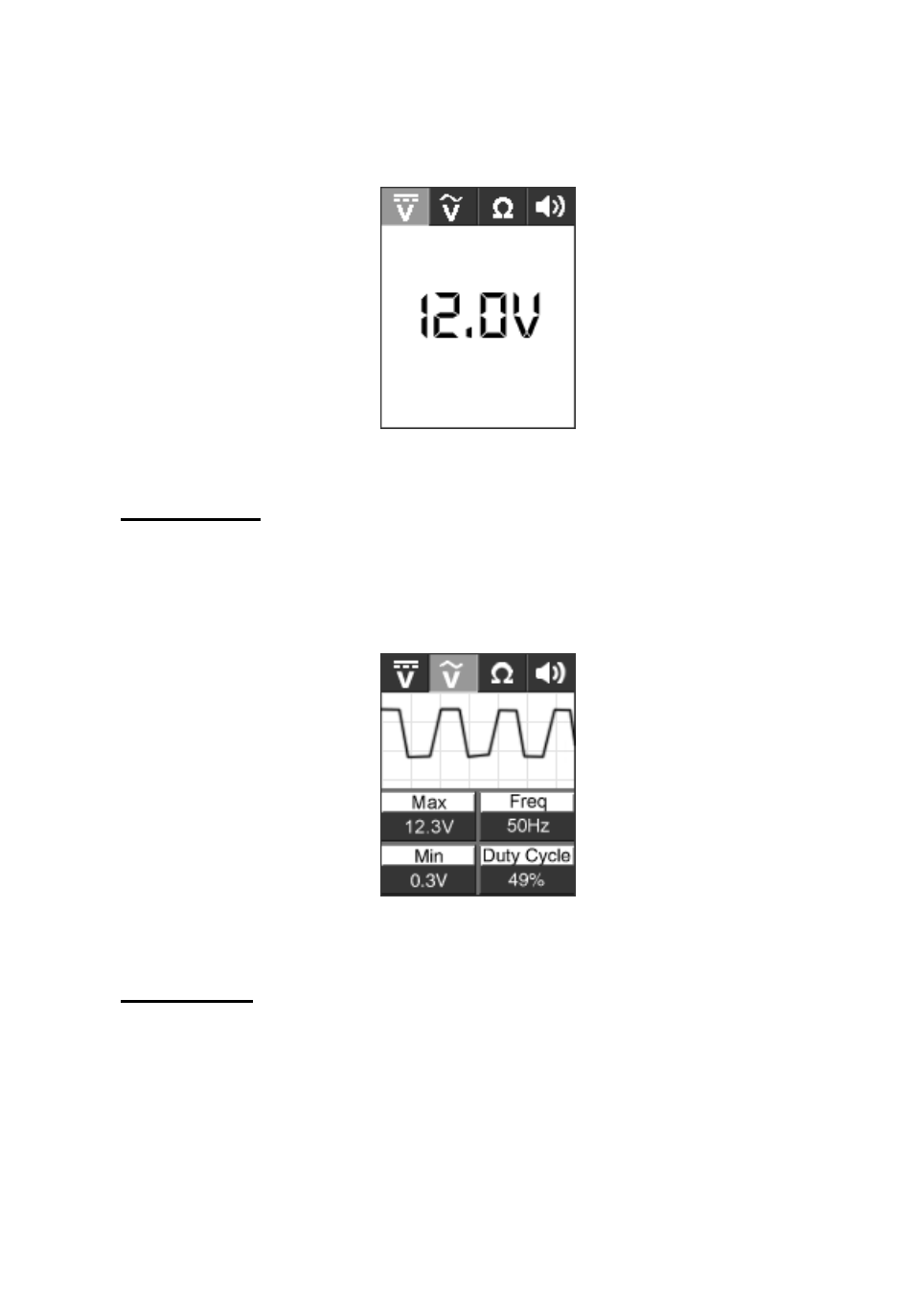

Figure 3

AC voltage

While the tool in this mode, contact the probe tip to a circuit, then the
LCD display will read the Max. voltage, the Min. voltage, frequency
and duty cycle. ( Figure 4).

Figure 4

Resistance

While the tool in this mode, contact the probe tip to a circuit, then the
LCD display will read the resistance between the tip and auxiliary
ground lead. (Figure 5)
