American Expedition Vehicles Rear Vision System User Manual
Page 8
6
4. For vehicles without factory map lights in the mirror: Locate the white wire with the grey stripe in the
wiring harness running under the front passenger kick panel (fig. 12). Splice in the reverse signal
wire (Green) from the mirror harness. Apply electrical tape to prevent arching.

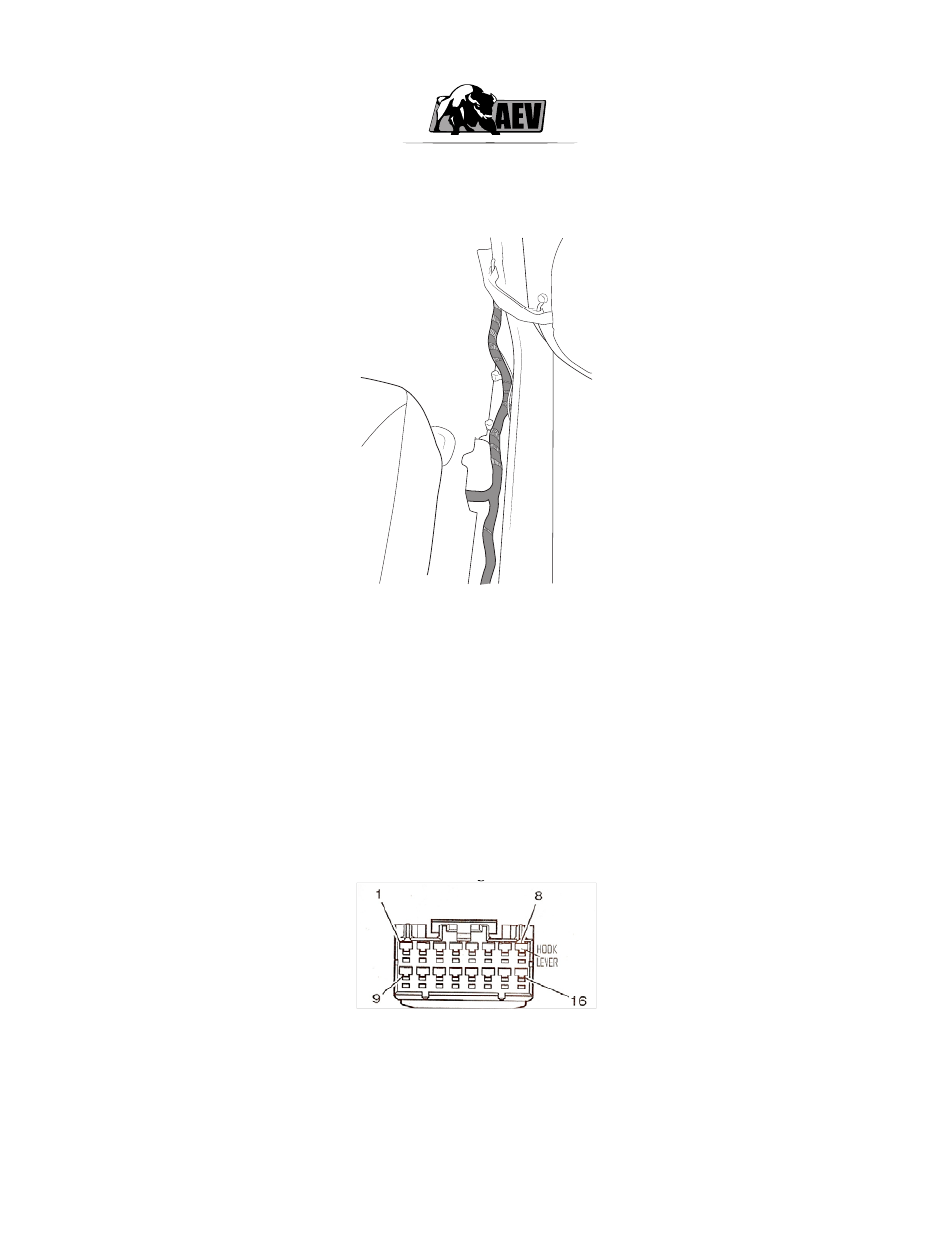

Figure 12
5. Route the end of AEV Wiring Harness B (see diagram pg 1) up the passenger side A pillar and the
2-connector end across the dash to the power plug.
6. Route the mirror wire through the access hole in step 3.
7. Insert AEV Wiring Harness terminals into factory mirror connector or AEV supplied connector for ve-
hicles without factory mirror connection.
a. Disengage Terminal Position Assurance (TPA) device (rectangular white tab) on existing vehicle
mirror connector by prying up the notches in the TPA. The tab will only lift about 1/10”.
b. Insert White terminal of Harness into Cavity 6 of the vehicle mirror harness connector and the
Brown terminal into Cavity 7 (fig. 13). The terminals should click into place.
Figure 13: 16-pin Connector face
8. Plug AEV Wiring Harness B into the 12 volt outlet plug and the factory 12 volt connector unplugged in
step I–15 (see diagram pg 1).
