5

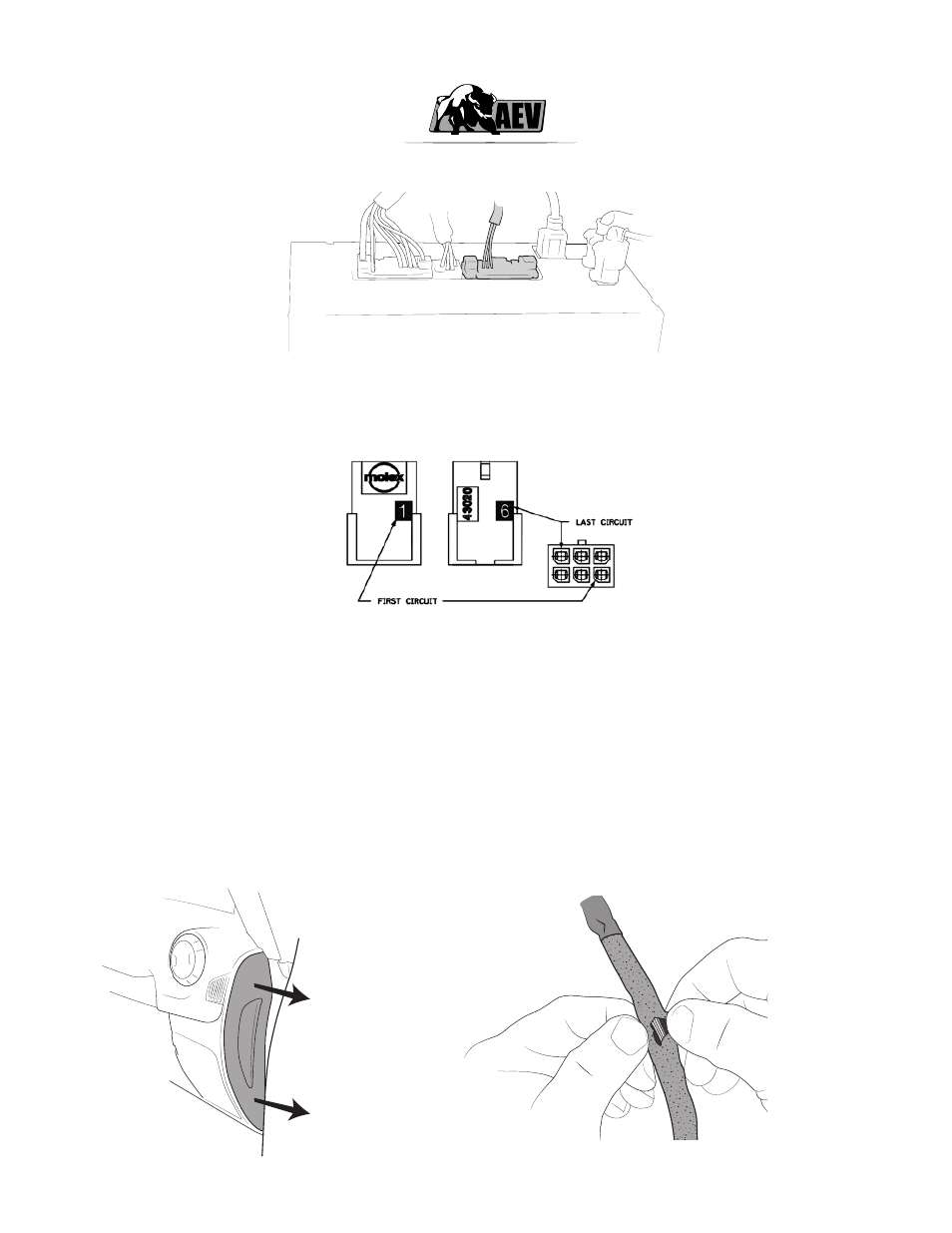

4. Connect the white plug into the back of the radio (fig. 8) then reinstall the radio.
Figure 8
5. Install the 6-pin connector onto the end of Harness A matching wire colors with the corresponding
connector on Harness B (fig. 9).
Figure 9
6. Connect Harness A and Harness B.
7. Secure all wiring to prevent any rubbing/chafing
IV. mirror display installation
1. Remove the side panel from the dash on the passenger side (fig. 10)
2. Remove the visor, A pillar trim, and factory rearview mirror.
3. For vehicles with factory map lights, cut an access hole into the wiring cover of the factory mirror wir-
ing harness (fig. 11).
Figure 10 Figure 11
1. White
2. Blue
3. Green
4. Brown
5. Black
6. Red
