4
II. routing the wiring harness

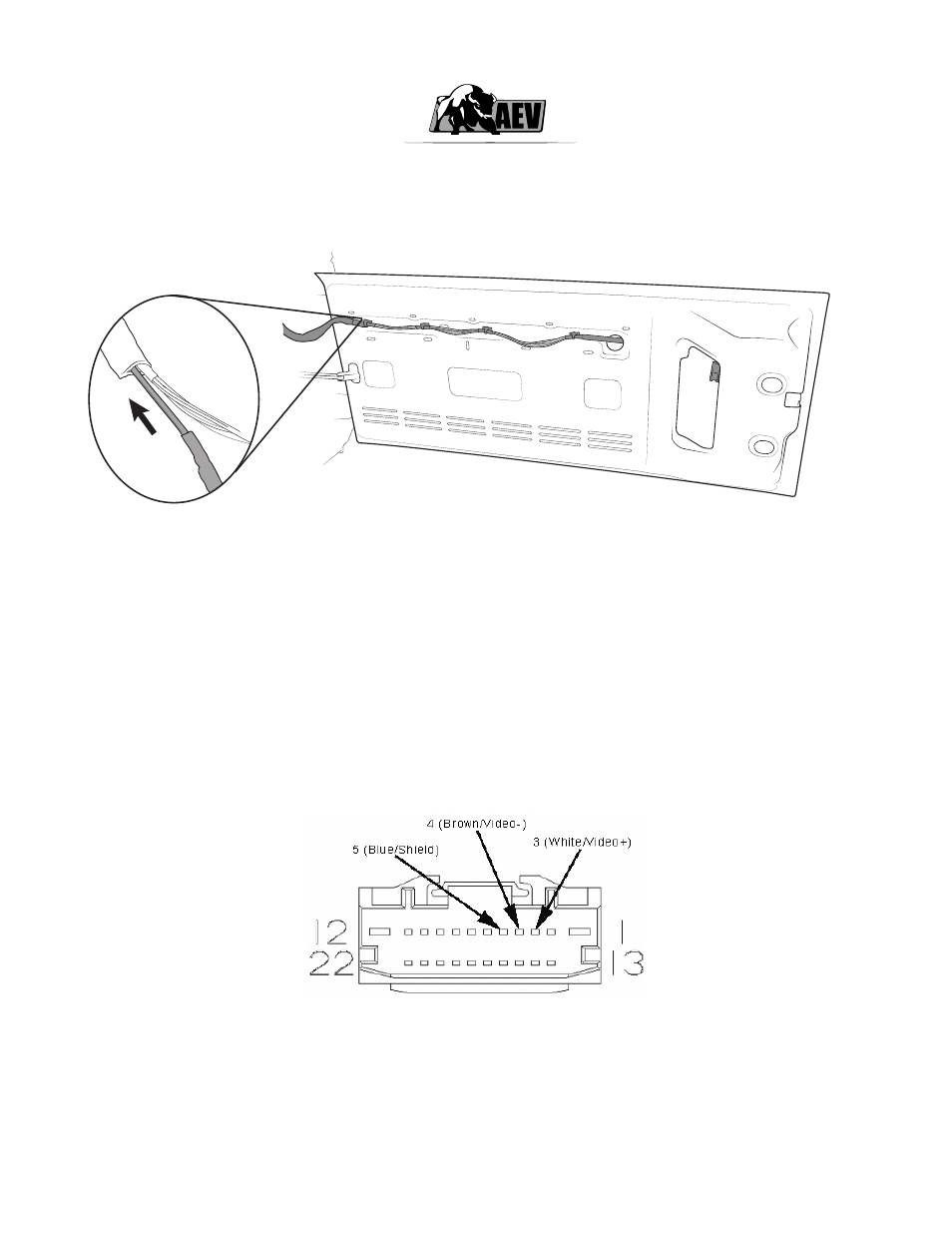

1. Route the camera wiring harness A (see diagram pg 1) through the tailgate (fig. 6) following the fac-
tory wiring through the protective sleeve and down to the passenger-side floor.
Figure 6
2. Continue routing the wiring harness along the passenger-side floor following the factory wiring.
If you are installing the AEV Rear Vision System with your factory Radio/Navigation, continue to sec-
tion III. If you will be using the AEV Rearview Mirror Display you may skip to section IV.
III. Navigation hook up
1. Plug Wiring Harness B (see diagram pg 1) into the 12 volt outlet plug* and the factory 12 volt con-
nector unplugged in step I–15.
*For 2007—2012 Vehicles use the cigarette ligher outlet on the left side of the switch panel.
2. Reinstall the lower switch panel.
3. Install three pins from Harness B into the white plug as shown (fig. 7).
Figure 7: 22-pin Connector face
