Alpha Technologies USM2.5 Status Monitor - Manual (Page 11)

11 018-041-C0-002 Rev. B
Connector Pin # String Reference Wire Label NetMentor Display (36V)
A/B 1 1A - (0Vdc) A/B[C/D] NEG
2 1A + (+12Vdc) Vbatt 1A [C] 12V Battery #3 Vdc
3 2A + (+24Vdc) Vbatt 2A [C] 24V Battery #2 Vdc
4 3A + (+36Vdc) Vbatt 3A [C] 36V Battery #1 Vdc
5
6
7
8
1. Installation
1.3 Battery Monitor Connections , continued

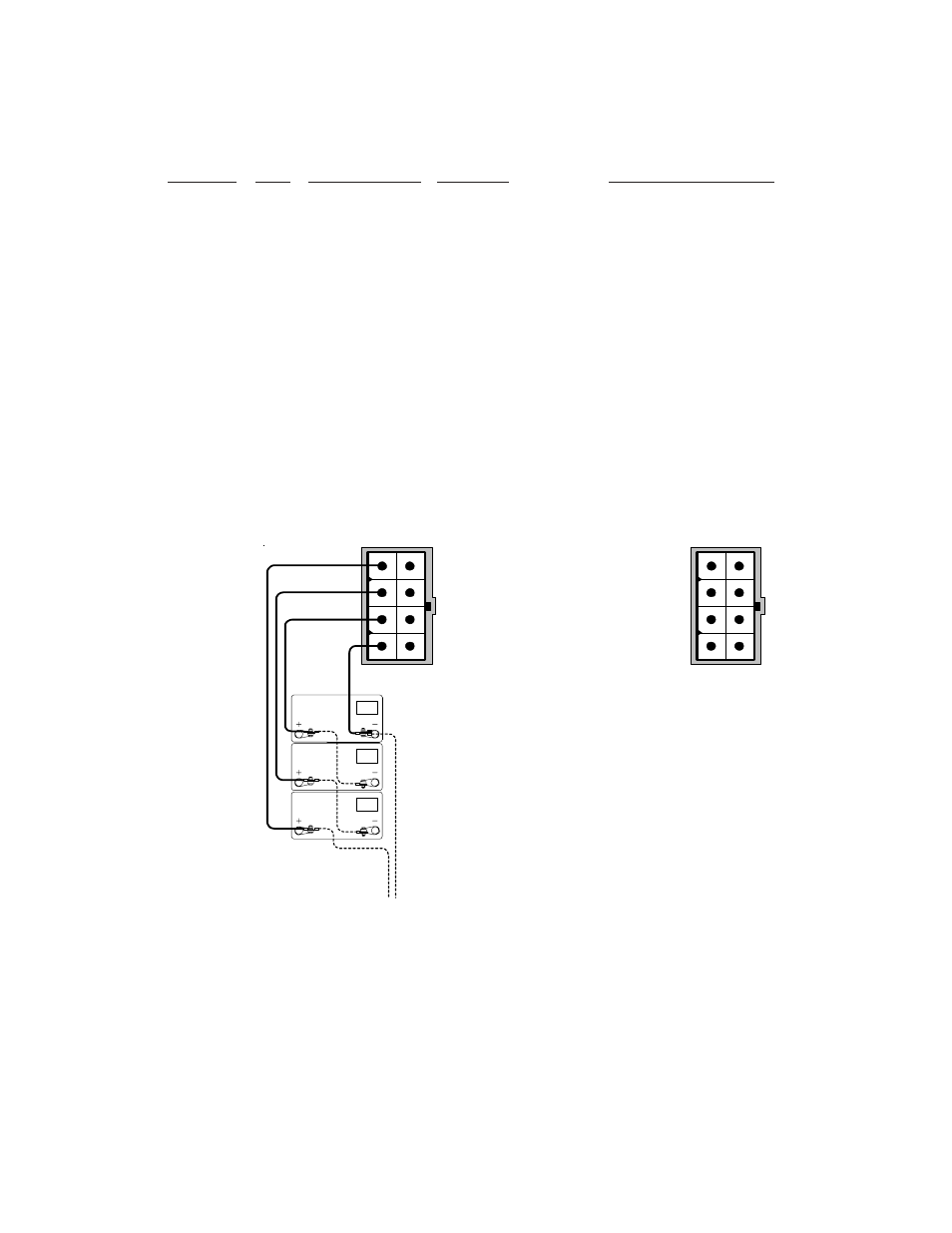

Figure 1-6 Battery Monitor Connections for one 36Vdc battery pack.
A/B C/D
1
2
3
4 8
7
6
5
Battery String A
12
V
24
V
36
V
1
2
3
4 8
7
6
5
1A
2A
3A
To Power Supply
Not used in this configuration
