Never allow live battery cables to contact the chassis whenever making or breaking battery
connections. If necessary, wrap the lugs with electrical tape to prevent arcing and temporarily
disconnect one of the leads from the center battery. Ensure the battery string voltage and polarity are
correct before proceeding.
Recheck the battery string voltages and polarity at the connectors leading into the power supply.
DO NOT connect the batteries to the power supply at this time!
2.0 Installation, continued
2.6 Battery Installation, continued
2.6.2 Battery Installation Procedure, continued

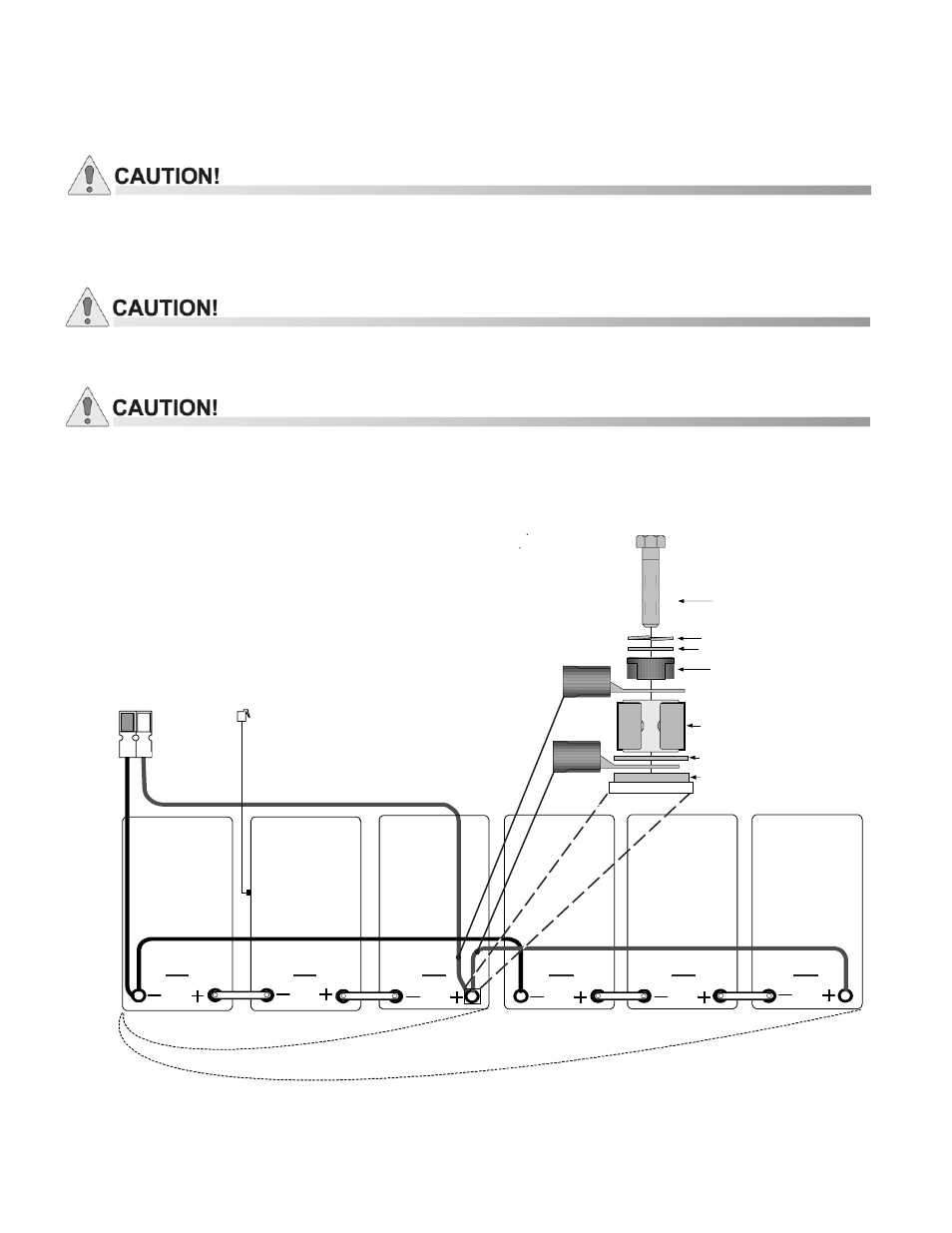

Fig. 2-15, Battery Wiring Diagrams (viewed from the top)
Battery Cable Kit P/N 745-759-21 (shown)
top of battery
RTS Connection
Connects to XM2
Power Supply
Single String (36VDC)
Dual String (36VDC)
Dual String
Neg. Connection (36VDC) Dual String
Pos. Connection (36VDC)
Bolt
Lock Washer
Flat Washer
Threaded Battery Post
Isolation Washer
Fuse
Nickel-plated Brass Washer (required)
Buss
Dual String
Pos. Terminal
Single String
Pos. Terminal
1A 2A 3A 1B 2B 3B
Fig. 2-14, In-line Fuse Installation
