2.0 Installation, continued
2.3.2 Pedestal Installation
1. Place vapor barrier material on pad. The vapor barrier material (such as 30lb felt,
neoprene pond liner, or a heavy grade tar paper) should initially extend six (6)
inches beyond the perimeter of the pedestal. It can be trimmed closer to the
pedestal after installation.
2. Using the pedestal as template, mark the location for installing the 1/2” anchor
bolts.
3. Position pedestal over mounting holes and insert anchor bolts.
4. Torque anchor bolts to bolt manufacturer’s specifications. If using Hilti bolts, torque
until heads pop.
5. Trim vapor barrier material.

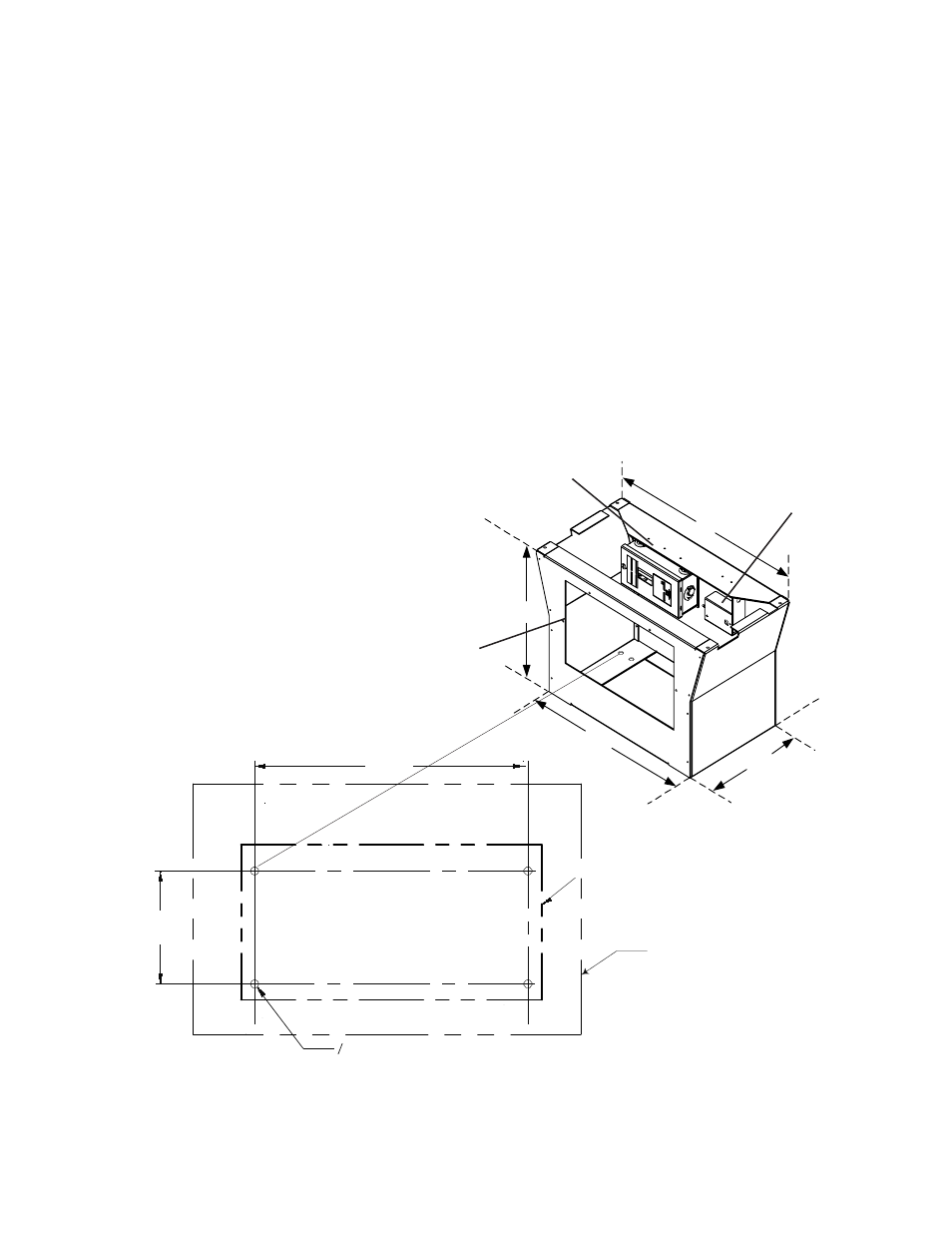

Fig. 2-4, Pedestal Installation
28"
(71.12cm)
23.5"
(59.7cm)
18"
(45.72cm)
14.3"
(36.3cm)
21 .725"
(55.18cm)
7.85"
(19.94cm)
O .6" (1.5cm)
Pedestal Mounting Holes
Pedestal
6" Pad Overlap
Cover removed
for clarity
Optional AC Service
Mounting Location
Optional SPI
Mounting Location
