Installing the Security Bar
Referring to Fig. 1 for accurate measurements, position
the right side bracket on the right side of the enclosure.
See Figs. 2 and 3.
Mark and drill the four mounting holes.
Use the bolts and nuts provided to secure the bracket
to the enclosure.
Repeat steps 1, 2, and 3 for the left side bracket. See
Figs. 2 and 4.
To attach the security bar to the right side bracket,
insert the bracket tab into the slot on the security bar.
To attach the security bar to the left side lock bracket,
align the center holes and fasten using an appropriate
lock.
1.
2.
3.
4.
5.
6.

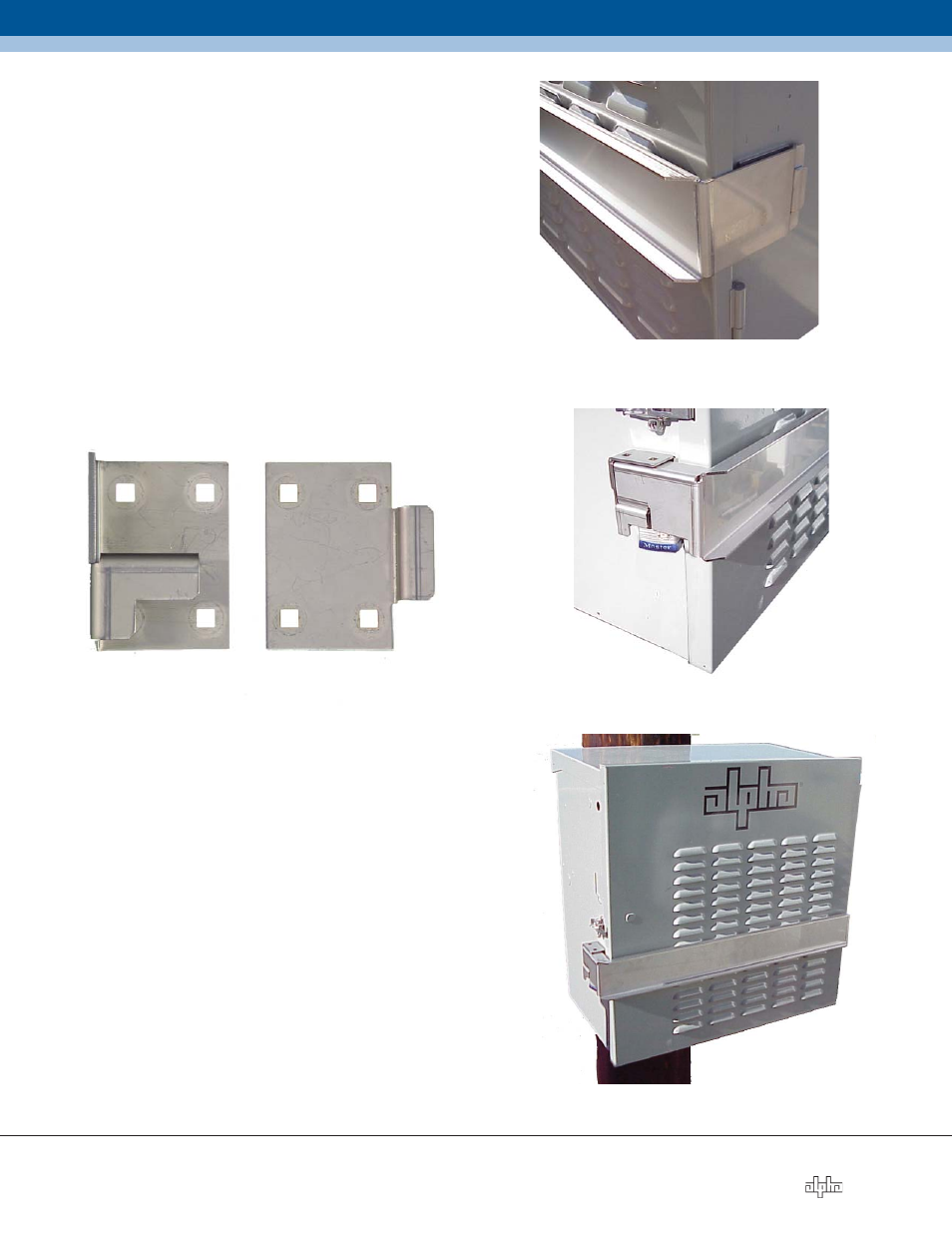

Fig. 4, Left side
Fig. 3, Right side
Fig. 5, Front view
Fig. 2, Brackets
Right Side Left Side
