Power
®
The PWE High Security Device (PHSD) mounts to PWE-3, 6, 9, or D36 enclosures to provide security from theft and
vandalism for batteries and power supplies. The PHSD is high grade stainless steel, which not only provides physical
security, but corrosion resistance and a strong visual deterrence as well.
Tools Required:
•
3/8" drive hand drill
•
9/32" (#K) drill bit
•
7/16" nut driver or socket
Material List, PWE High Security Device
Alpha P/N
Description
Qty
605-404-G1-002
Side Bracket
1
605-405-G1-002
Side Bracket with Lock
1
605-406-G1-001
Security Bar
1
630-109-12
Bolts, 1/4" 20x3/4"
8
633-013-12
Flat Washers
8
634-059-12
KEPS Hex Nuts, 1/4-20
8

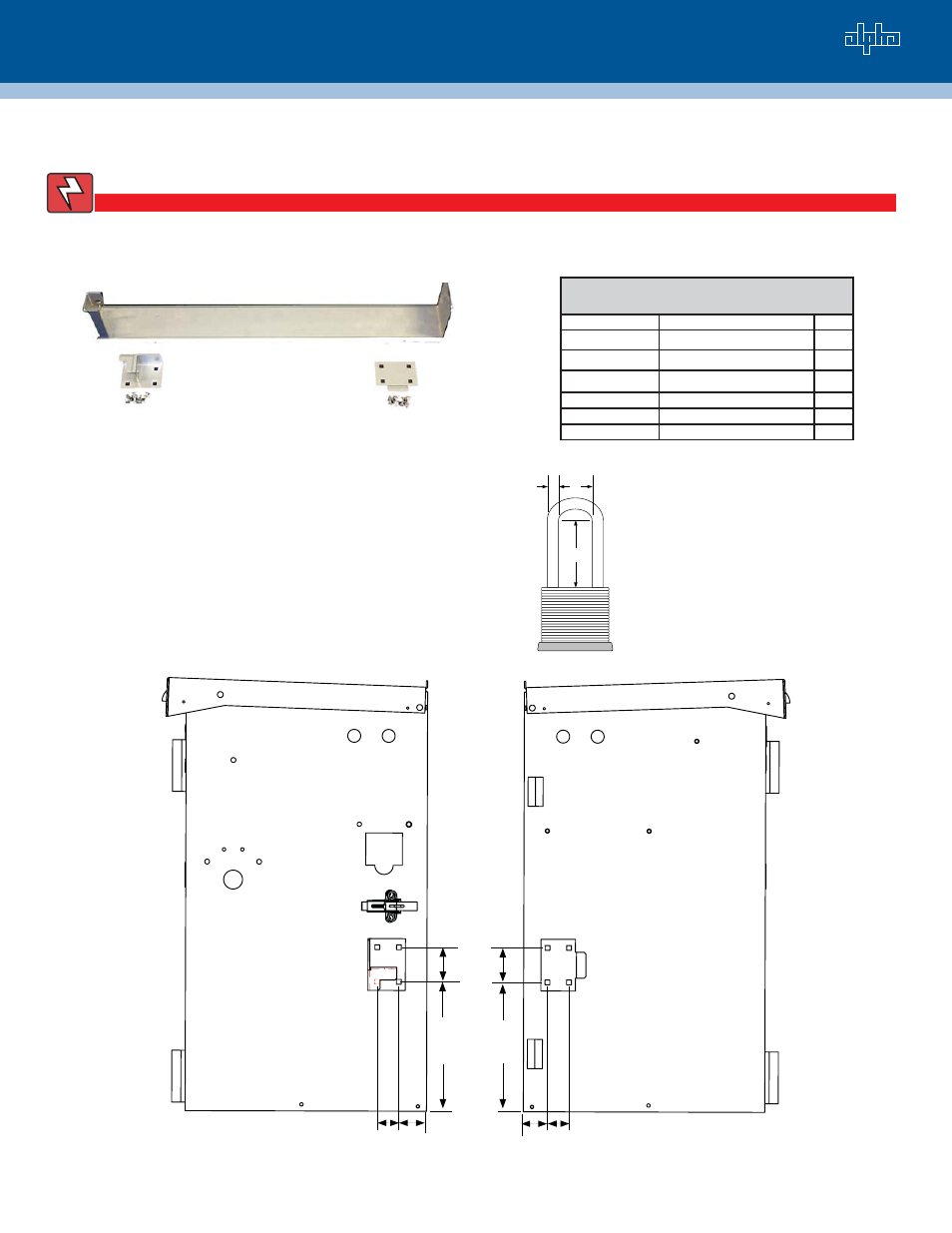

PWE High Security Device
Field Installation Instructions
2"
1 1/4"
2"
1 1/4"
1 5/8"
1 3/8"
7 1/2"
7 1/2"
Right side view
Left side view
Dimensions and Specifi cations
B
A
C
In addition:
A security lock (Master Lock
No. 3 or equivalent) is required
to secure the enclosure. The
user-supplied lock must meet the
following dimensions.
Where:
A= 1/4" (6.35mm)
B= 5/8" (15.84mm)
C= 1/2" (12.7mm)
WARNING!
Use EXTREME CAUTION when drilling into the enclosure. Clear equipment and wiring from the
area into which you are drilling.
PWE High Security Device Kit
Fig. 1, PWE-3 Enclosure
(31.49mm)
(41.27mm)
(31.49mm)
(34.92mm)
(190.5mm)
(190.5mm
)
(50.8mm)
(50.8mm)
