2. Installation
35 031-165-C0-001 Rev. A
LA - P PLUS
120VAC 20A 50/60Hz
RATED AMBIENT 55 C MAX
P/N 020-098-24
REPLACE UNIT WHEN
LAMP BECOMES DIM
OR IS OUT
R
R
240VAC 20A 50/60Hz
RATED AMBIENT 55 C MAX
P/N 020-098-25
REPLACE UNIT WHEN
LAMP BECOMES DIM
OR IS OUT
R
R
LA - P PLUS

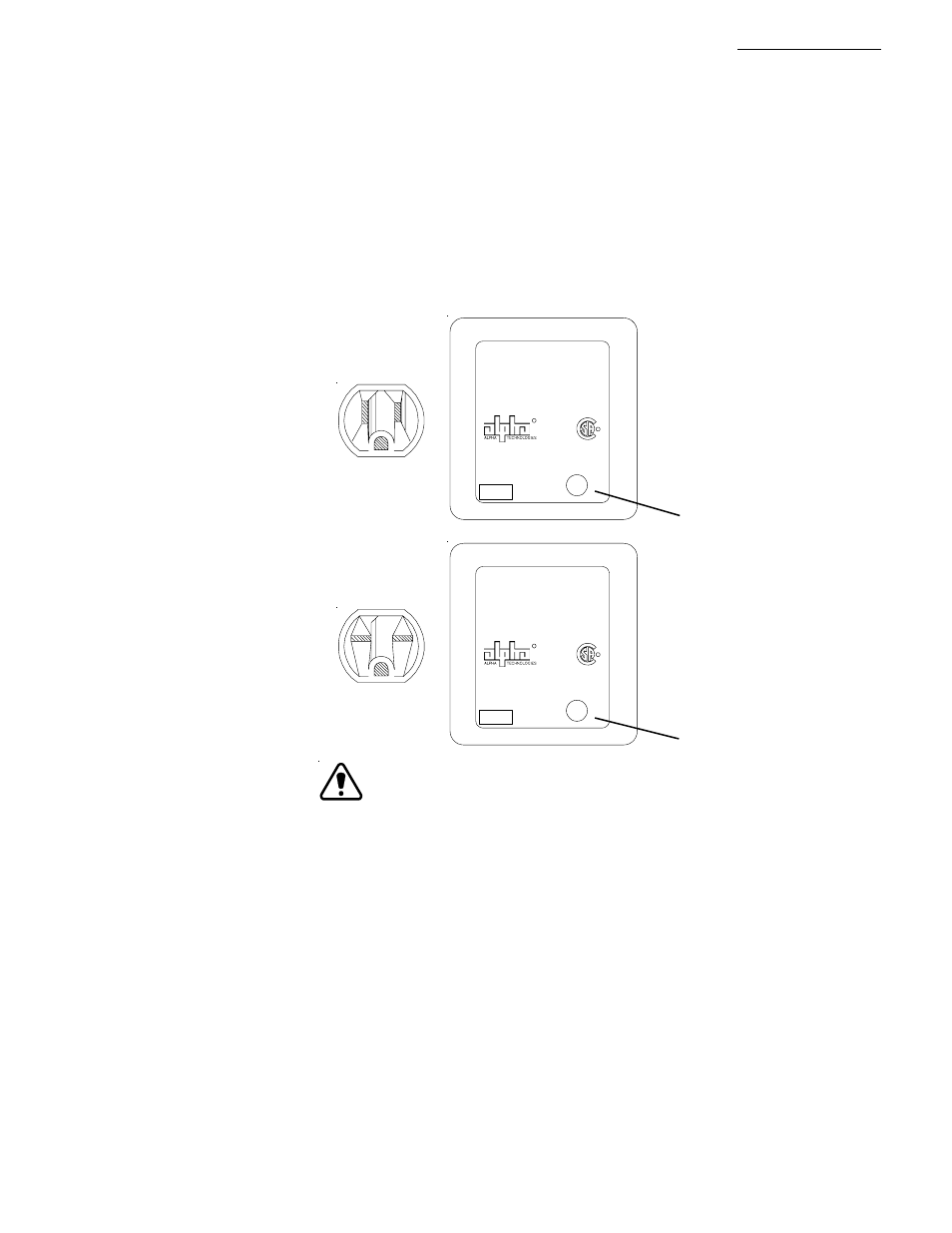

2.8 Lightning Arrester Option
Alpha’s LA Series voltage suppressors provide reliable protection of power supplies and
related equipment from the damaging powerline disturbances common to cable TV and
broadband applications. The LA Series incorporates MOV’s that effectively limit voltage
surges and absorb excessive energy levels. Housed in a durable polymer casings with
standard electrical plugs, the LA Series plugs directly into any electrical outlet.
LED
LED
NOTE: LED On - Operation Normal
LED Off - LAP has failed, Replace LAP
