2. Installation
28 031-178-C0-001 Rev. A
2.6 Battery Installation, continued
Battery Post
3/8" Spacer
Fuse
Flat Washer
Lock Washer
Nut
Battery Cable to Next
Battery
2.6.3 Battery Terminal Connections
The accompanying drawings are for illustrative purposes only. Various types of batteries
with different mounting styles and hardware may be shipped with the system. ALWAYS
refer to the battery manufacturers’ specifications for correct mounting hardware and torque
requirements. During maintenance procedures, refer to the manufacturers' specifications
for the maintenance torque requirements.
For AlphaCell batteries, use 65 Inch-Pounds upon installation, torque to 50 Inch-Pounds
during maintenance.
A corrosion inhibitor should be used on all bare metal connections and crimps
Mounting hardware requirements may vary with battery manufacturers. Use only the
hardware recommended by your particular battery manufacturer.

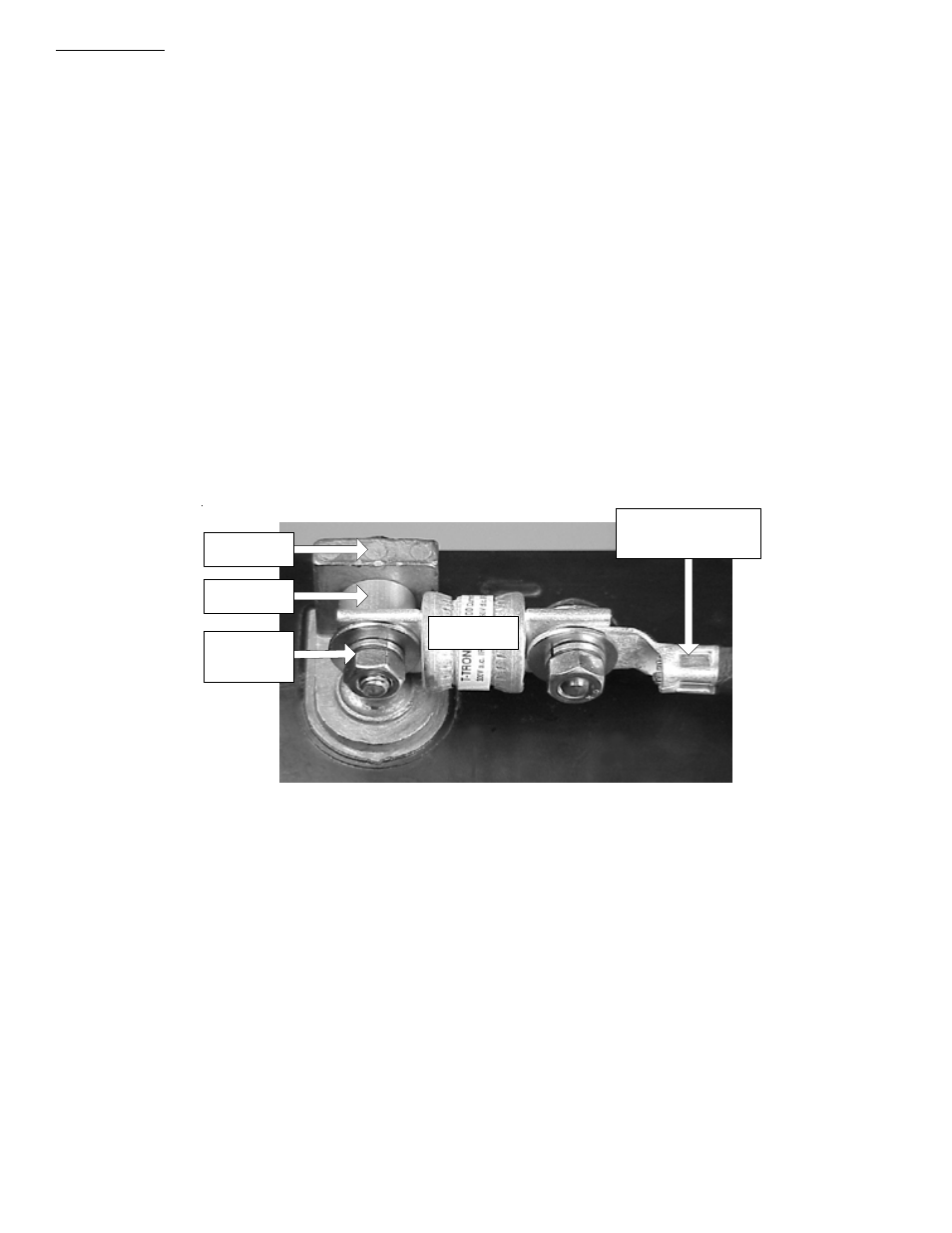

Fig. 2-8 Battery Terminal Connections
