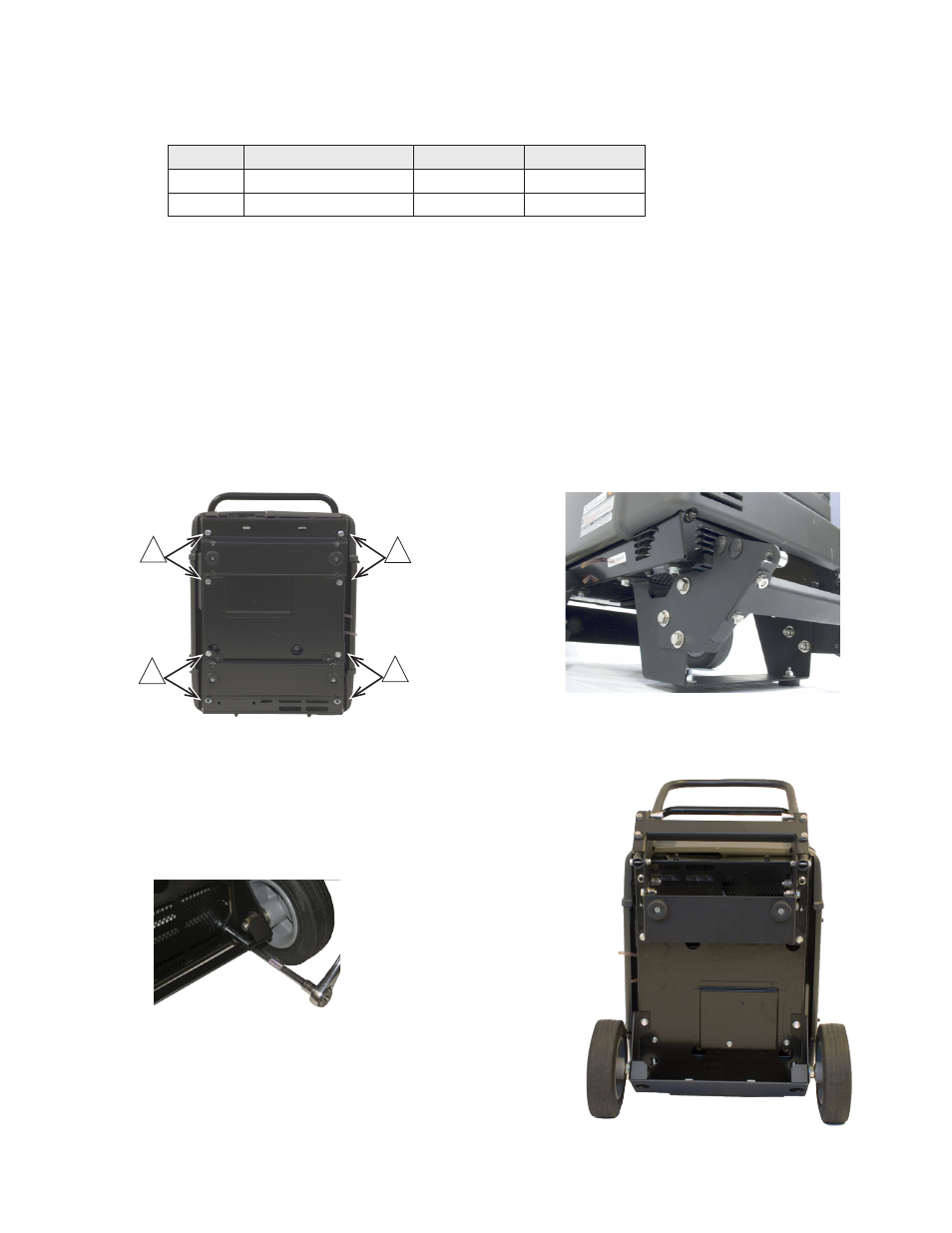

Foot Bracket Removal and Replacement
Requires the following:
1. Tilt unit up on the muffler end (Fig. 3). Raise generator high enough to allow for installation of wheel assembly.
2. Remove existing front and rear foot brackets with 2mm socket. Keep hardware (A) for steps 3 and 4.
3. Install new front foot bracket on control panel end of generator (Fig. 4). Use 2mm socket to reinstall hardware.
4. Install wheel bracket assembly on muffler end of generator as shown (Fig. 5). Use 12mm socket to reinstall
hardware.
5. Return generator to original position.
Quantity Part description Part number Tool required
Wheel assembly Multiple 2mm socket
Front bracket Multiple 2mm socket
Control Panel End
Muffler End
Fig. 5, Wheel Assembly Detail
A A
A A
Fig. 4, Front Foot Bracket Detail
(Handle not shown)
Fig. 6, Completed Bracket Installation
Fig. 3, Removal of Existing Brackets
