Alpha Technologies Rear Access Bullet Breaker Panel, 19 - Manual (Page 20)

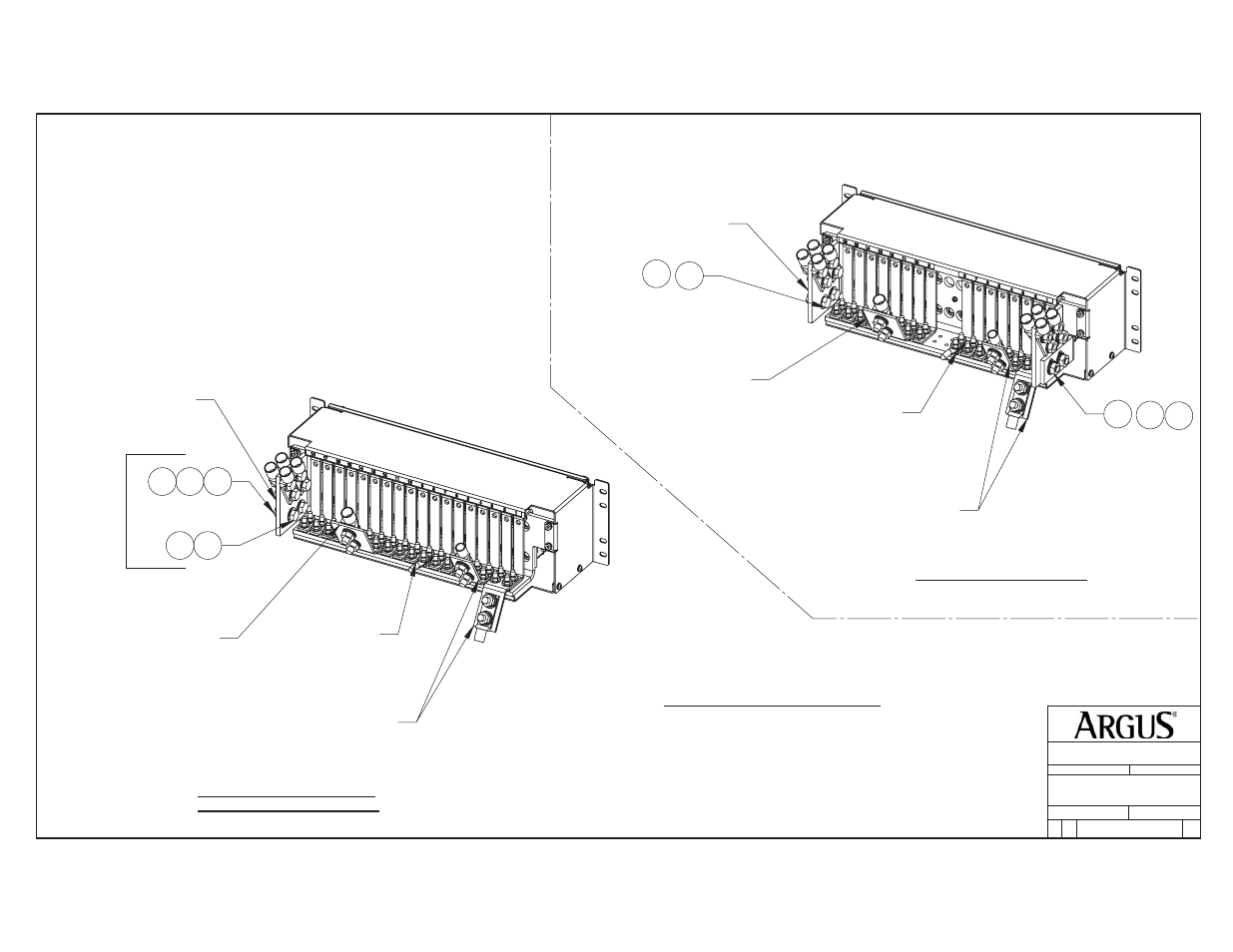

OPTIONAL LIST OPTIONS
(SHOWN WITH LIST 50,80)
SIZE DWG NO. TYPE
B
SHEET
TITLE
ISSUE
DATE OF
SCALE
REV 020-675-08
CUSTOMER CONNECTION
19" BULLET BREAKER PNL.
2 3
D2
c 2005 ARGUS TECHNOLOGIES O
B
DIMENSIONS ARE IN INCHES WITH METRIC (mm) IN BRACKETS: INCHES [mm]
1 : 4
FOR MANUFACTURING WITHOUT ITS WRITTEN CONSENT.
THESE DESIGNS AND SPECIFICATIONS ARE THE PROPERTY OF
ARGUS TECHNOLOGIES AND SHALL NOT BE COPIED OR USED
PART OF LIST123/124/125
3 POS'N OUTPUT ADAPTER
3/8" x 1" CTR
613-424-13
FOR UP TO 4/0 WIRE
PART OF LIST121/122
2 POS'N OUTPUT ADAPTER
3/8" x 1" CTR
613-423-13
CAN BE MOUNTED EITHER DIRECTION
FOR UP TO 4/0 WIRE
LIST97
INPUT ADAPTER
3/8" x 1" CTR, 60 DEG.
613-425-13
FOR UP TO 4/0 WIRE EACH
45 53
53 52 62
2 PL
TYPICAL
1/4" x 5/8" CTRS
18 POS'N
FOR UP TO #2 WIRE
PART OF LIST123/124/125
3 POS'N OUTPUT ADAPTER
613-424-13
FITS 3/8" LUG ON 1" CTRS
FOR UP TO 4/0 WIRE
62 52 53
53 45
2x LIST97
INPUT ADAPTERS
3/8" x 1" CTR, 60 DEG.
613-425-13
FOR UP TO 4/0 WIRE EACH
4 PL
4 PL
SHOWN WITH LIST 50,81
PART OF LIST121/122
2 POS'N OUTPUT ADAPTER
613-423-13
CAN BE MOUNTED EITHER DIRECTION
FITS 3/8" LUG ON 1" CTRS
FOR UP TO 4/0 WIRE
HOOK UP FOR CABLE INSTALL
TYPICAL
1/4" x 5/8" CTRS
22 POS'N
FOR UP TO #2 WIRE
