Argus Technologies Ltd. 019-061-C0 Rev A WC
Printed in Canada. © 2009 Argus Technologies Ltd. ARGUS is a registered trademark of Argus Technologies Ltd. All Rights Reserved. Page 13 of 26
4.2 STS Shelf Wiring With MBS/PDU
AC Output L
Terminal Block
AC-L Input
L to STS AC-N GND AC-L STS-L
Output
AC Input L
Terminal Block AC Output N
Terminal Block AC Input N
Terminal Block
GND
Signal cable
to STS shelf

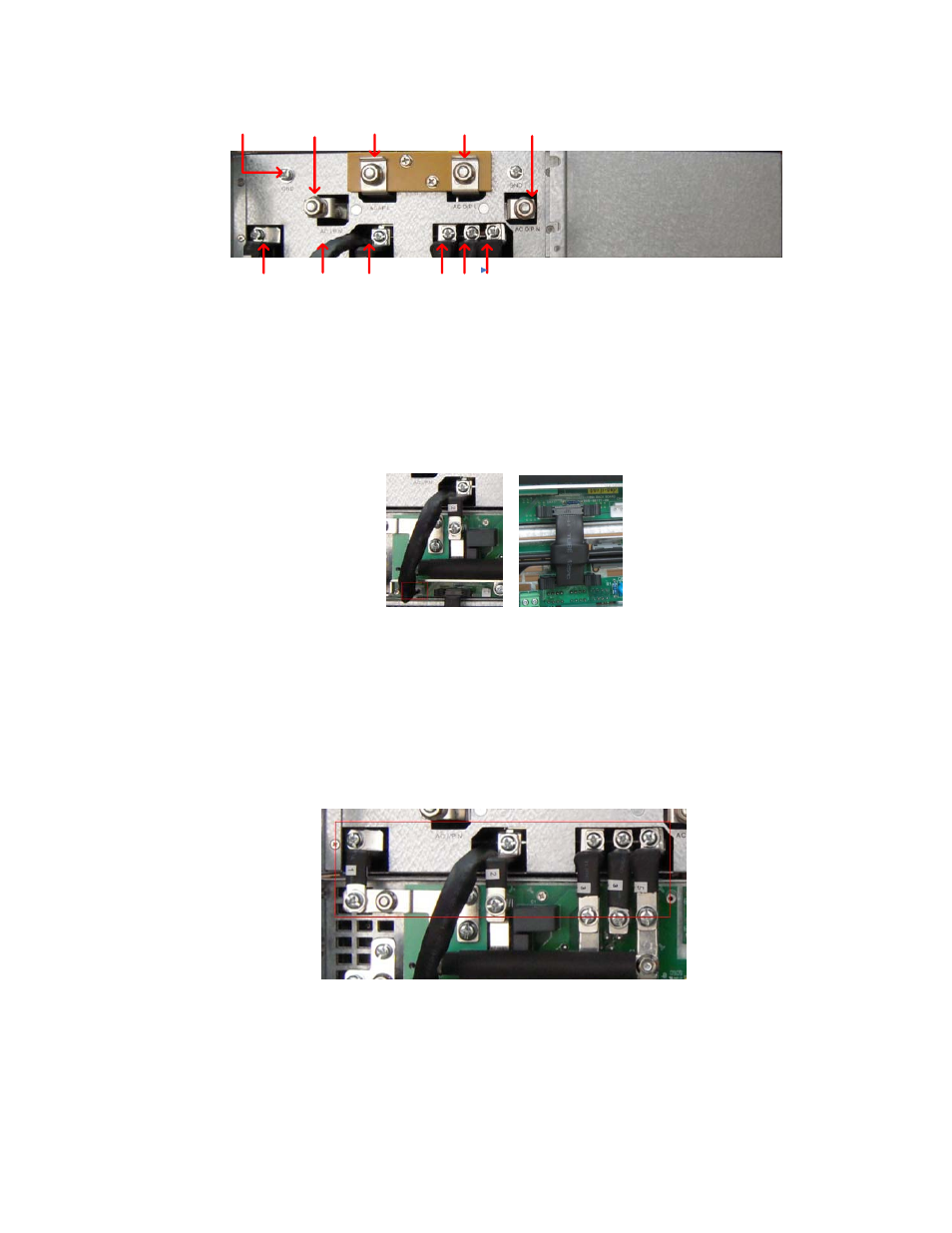

Figure 10–Rear view of MBS/PD chassis showing connections
1. Connect signal cable between MBS/PDU, STS shelf.
Connect the 4-pin MBS cable to the CN1 connector on the back PCB of the controller/interface/STS shelf. Then
connect one end of the STS/inverter signal cable to the CN11 connector on the backplane PCB of the controller/
interface/STS chassis. Connect the other end to the CN7 connector on the backplane PCB of the inverter.
2. Connect bus bar.
Connect the 5 bus bars accompanied with MBS/PDU to UC3, UC2, UC1 on the STS backplane PCB to the
corresponding connectors of MBS/PDU as shown below:
• Bus bar 3 for (inverter output N)
• Bus bar 3 for (Ground)
• Bus bar 5 x 1 for (inverter output L)
• Bus bar 2 x 1 for (STS output L)
• Bus bar 1 x1 for (AC input L)
