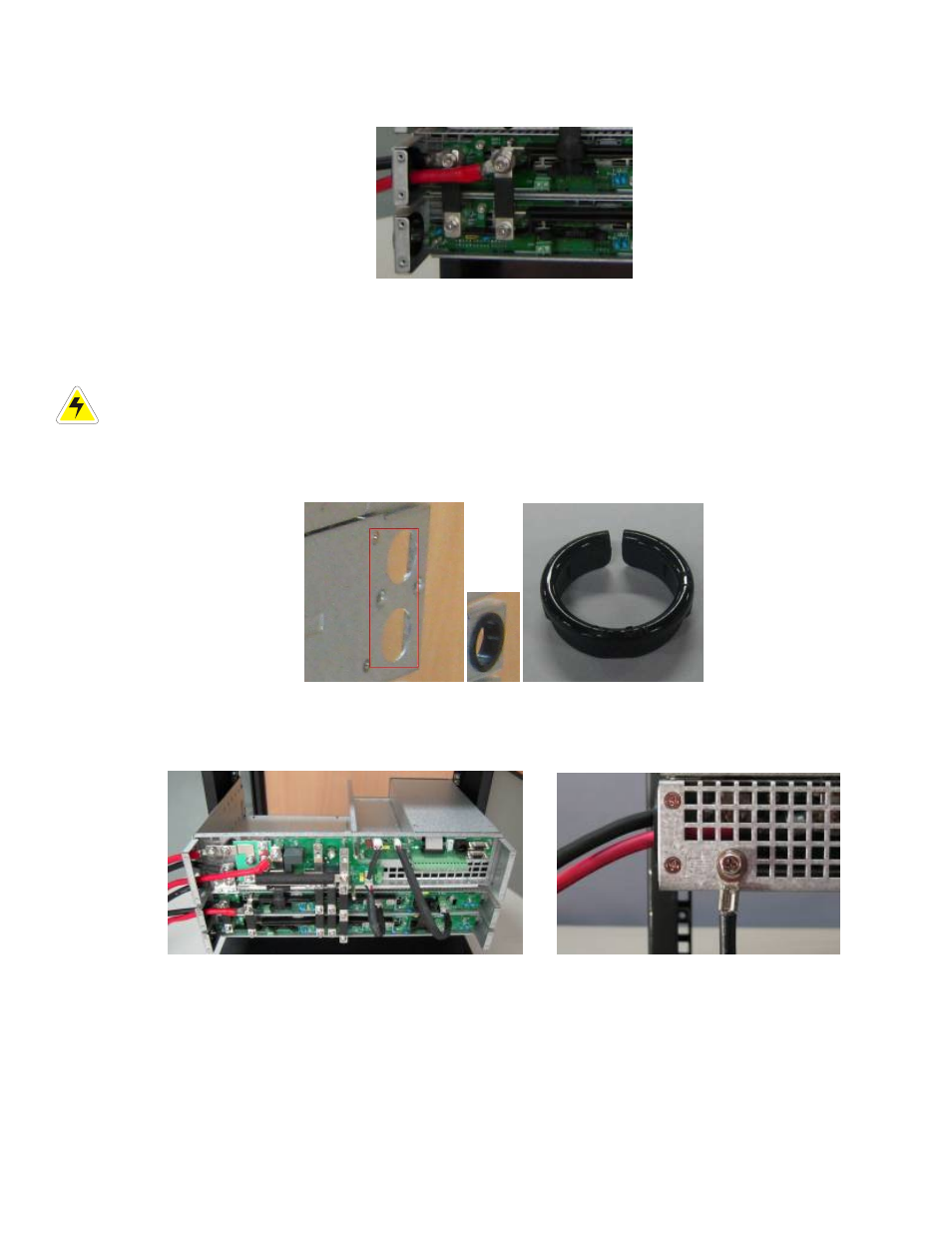

4. Connect DC input wires – put both wires through the wire hole on the left side of the inverter shelf. Use the
cross pan type nickel screws, in the accessory kit, for fixing both DC INPUT wires.
5. Connect AC output/input/ground wires.
CAUTION
To connect AC output wires onto the system, only one AC line and AC Neutral are necessary to be
connected either from STS shelf or inverter shelf.
User should knock out the hole for cable on STS shelf and add a protect circuit.
Connect AC HOT LINE to the (AC-L OUT) connector of STS & Controller shelf. Connect AC NEUTRAL LINE onto
(AC-N) connector of the STS & Controller shelf.
Screw the rear cover to the STS & Controller shelf and then wire the ground cable to the rear cover (shown
above).
