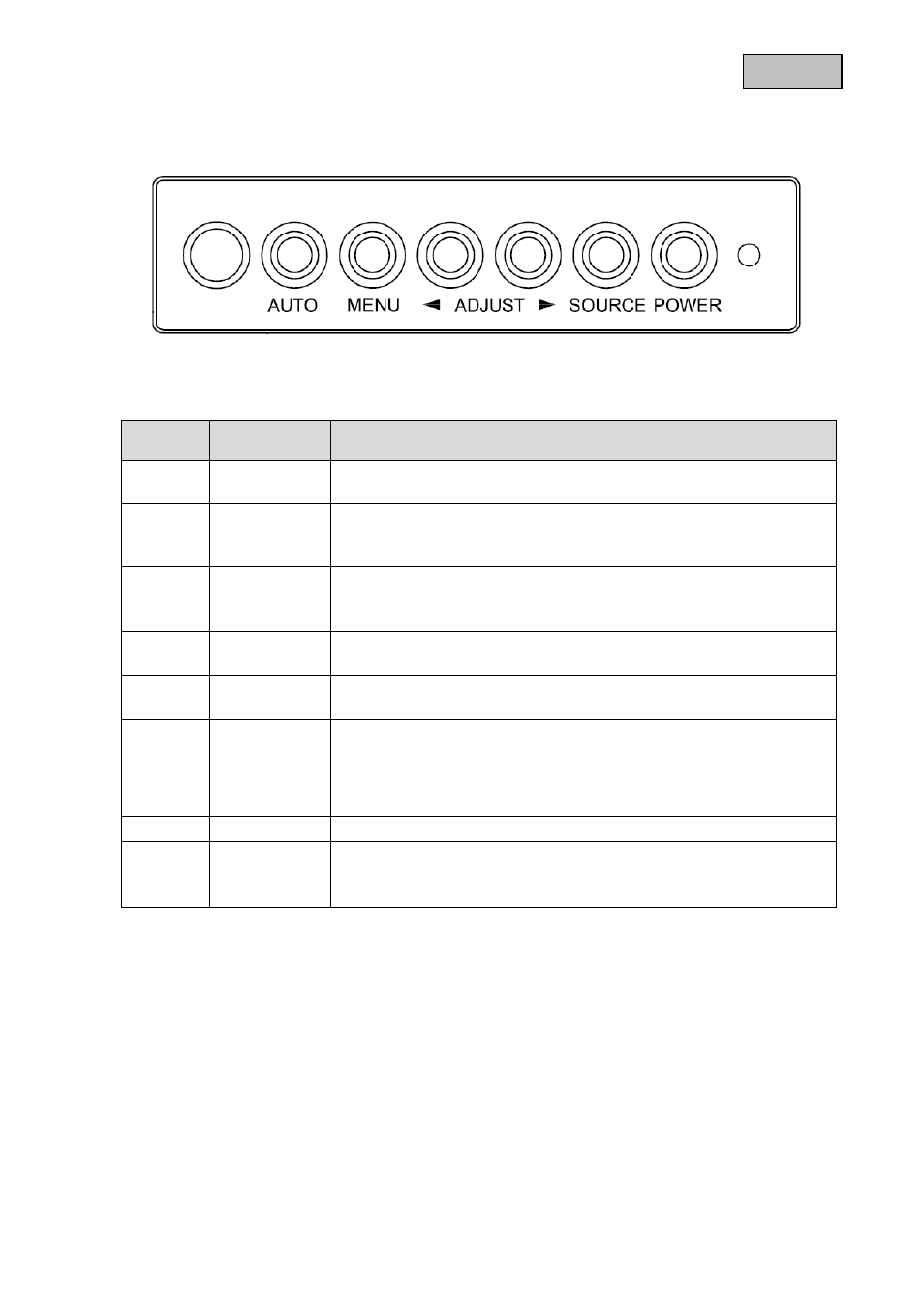

8. Button description




Number

Button

Desription

c

IR receiver

• IR LED for operating the unit with the remote control

d

Auto

• Automatic adjusting in the VGA-mode
• Call a menu item
• Select a menu item for adjustment

e

MENU

• Show the OSD (on-screen display)
• Confirm a selected value
• Exit a menu item and the menu

f

◄

• Reduce the value in the OSD
• Switch between menu items

g

►

• Increase the value in the OSD
• Switch between menu items

h

Source

Select the different input signals:

• VGA (PC or DVR signal input)

• AV1 (analogue video input)

• AV2 (analogue video input)

• S-Video (analogue video input)

i

Power

• Switch monitor on / off

j

Power LED

• Red:

off

• Orange: standby (only VGA)
• Green:

on





c

d

e

f

g

h

i

j
